THIS PRODUCT IS NO LONGER AVAILABLE
This product is superseded by:Makita SK104Z 2-Way Self Leveling Cross Line Laser Level Kit

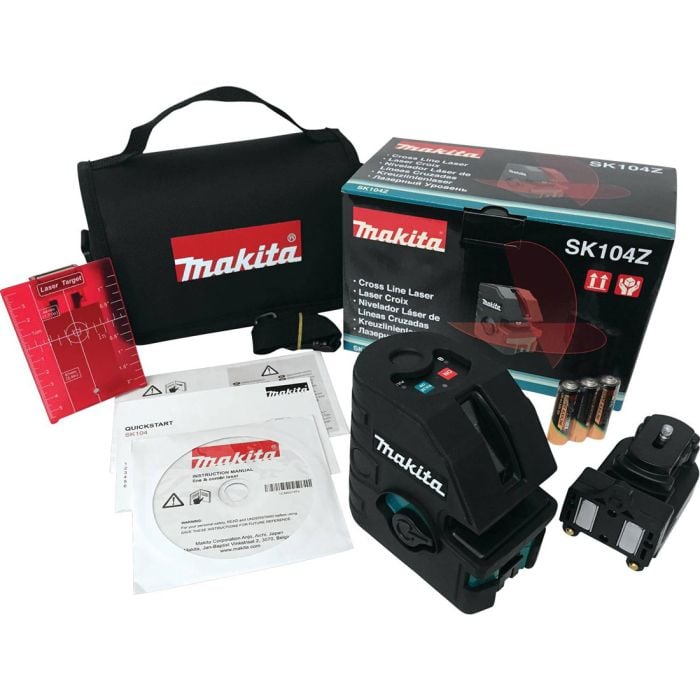

what's in the box
- 1x SK104Z Cross Line Laser Level
- 3x AA Batteries
- 1x Magnetic Adaptor
- 1x Laser Target Plate
- 1x CD with User Manual
- 1x Quick Reference Guide
- 1x Safety Instructions
- 1x Protective Case
Notes From PTW Expert
The main improvement or benefit on this new model is the increased return of the cross-lines in both vertical and horizontal directions
Overview
Makita SK104Z 2-Way Self Leveling Cross Line Laser Level Kit
The Makita SK104Z Self-Leveling Cross-Line Laser gives the user horizontal and vertical reference lines required in leveling and aligning applications. It has a fast self-leveling time, achieving stability within 3 seconds for increased productivity. For work on uneven surfaces, the self-leveling is correctable to up to 4 degrees of slope. Depending on ambient light in the working environment, the SK104Z has a line visibility range up to 15m (60m with optional receiver).
For added durability, the SK104Z has recessed laser windows that are highly protected from fracture damage and drops, and the full over-sized rubber over-mold provides increased protection. For added convenience, the multi-purpose magnetic bracket allows for attachment to a tripod with a 1/4” thread, or to metal and wood objects.
MAKITA LASER LEVEL FEATURES
- Line visibility range up to 15 metres depending on ambient light in working environment
- Accuracy - horizontal/vertical lines (+/- 3.0mm @ 10m)
- Fast self-leveling time; stability is achieved in 3 seconds for increased productivity
- Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
- Bright 635 nm class II laser for best-in-class visibility in moderate ambient light environment
- Laser line fan length spans well past 90° position to provide 180° horizontal line and 120° vertical line for full reference line coverage in demanding applications
- Integrated pendulum lock enables slope incline applications for increased versatility
- Pulse mode conserves and extends battery life for increased operation time in low light environments
- Delivers up to 35 hours of continuous run time operation
- Three independent mode functions conserve power by allowing battery power usage only when needed to operate the necessary functions
- Recessed laser windows are highly protected from fracture damage in slot positions for increased durability
- Full oversized rubber over-mold for increased protection
- Pendulum lock offers added protection of laser diode during transport and storage
- Dust and water resistance with IP 54 rating for increased durability
- Simplified two button user interface for ease of operation
- Multi-purpose magnetic bracket allows for attachment to a tripod with a 1/4” or to metal and wood objects
MAKSK104Z SPECIFICATION
- Range: 15m (60m with Optional Receiver)
- Self-Levelling Range: 4+/-1 º
- Accuracy of Horizontal Line @ 10m: +/- 3.0 mm
- Vertical Accuracy @ 3m Line Length: +/- 0.75 mm
- No. of Laser Lines: 2
- Power Source: 3x AA Batteries (Included)
- Laser Type: 635nm, < 1 mW
- Laser Class: 2
- Protection Class: IP54
- Operating Temperature Range: -10 - 40 ºC
- Storage Temperature Range: -25 - 70 ºC
- Tripod Thread: 1/4"
- Pulse Mode w/ Detector: Yes
- Pendulum Lock: Yes
- Net Weight: 0.47 kg
