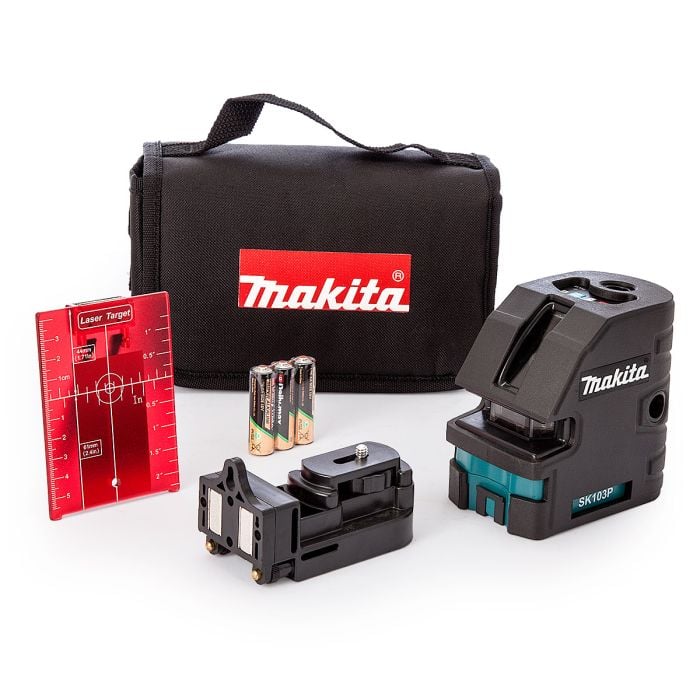

Makita SK103PZ 4-Point Self Leveling Cross Line Laser Level/Point Laser Kit

Makita SK103PZ 4-Point Self Leveling Cross Line Laser Level/Point Laser Kit

All-In-One Solution: Combination Cross-Line/Point Laser

FEATURES

• Provides all possible reference lines required in leveling, aligning, plumbing, and squaring applications for maximum versatility
• Line visibility range up to 15m and point visibility range up to 30m depending on ambient light in working environment
• Incredibly accurate with a levelling accuracy @ 5m of +/- 1.5 mm and a point accuracy @ 5m (up/down) at +/- 1.5 mm
• Fast self-leveling time; stability is achieved in 3 seconds for increased productivity
• Self-leveling is correctable up to 4° of slope allowing operation on uneven surfaces
• Bright 635 nm class II laser for best-in-class visibility in moderate ambient light environment
• Laser line fan length spans well past 90° point position to provide 180° horizontal line and 120° vertical line for full reference line coverage in demanding applications
• Integrated pendulum lock enables slope incline applications for increased versatility
• Pulse mode allows operation with laser receiver (sold separately) with detection achieved up to 60m
• Pulse mode conserves and extends battery life for increased operation time in low light environments
• Delivers up to 35 hours of continuous run time operation
• Five dedicated mode functions conserve power by allowing battery power usage only when needed to operate the necessary functions
• Recessed laser windows are highly protected from fracture damage in slot positions for increased durability
• Full oversized rubber over-mold for increased protection
• Pendulum lock offers added protection of laser diode during transport and storage
• Dust and water resistance with IP 54 rating for increased durability
• Simplified two button user interface for ease of operation
• Integrated bracket allows for attachment to a tripod with a 1/4” & 5/8” thread or to metal and wood objects

SPECIFICATION

• Laser diode: 635 nm class II
• Range: 15m (60m with receiver)
• Levelling accuracy @ 5m: +/- 1.5 mm
• Point accuracy @ 5m (up/down): +/- 1.5 mm
• Self Levelling Range: 4+/-1 º
• Accuracy of plumbing point @ 10m: +/- 3.0 mm
• Accuracy of horizontal line @ 10m: +/- 3.0 mm
• Vertical accuracy @ 3m line length: +/- 0.75 mm
• Levelling time: 3 s
• No. of laser dots: 4
• No. of laser lines: 2
• Battery Type: 3x AA Batteries
• Protection Class: IP54
• Operating Temperature Range: -10 - 40 ºC
• Storage Temperature Range: -25 - 70 ºC
• Tripod Thread: 1/4 "
• Pulse Mode w/ Detector: Yes
• Pendulum Lock: Yes
• Net weight: 0.47 kg
