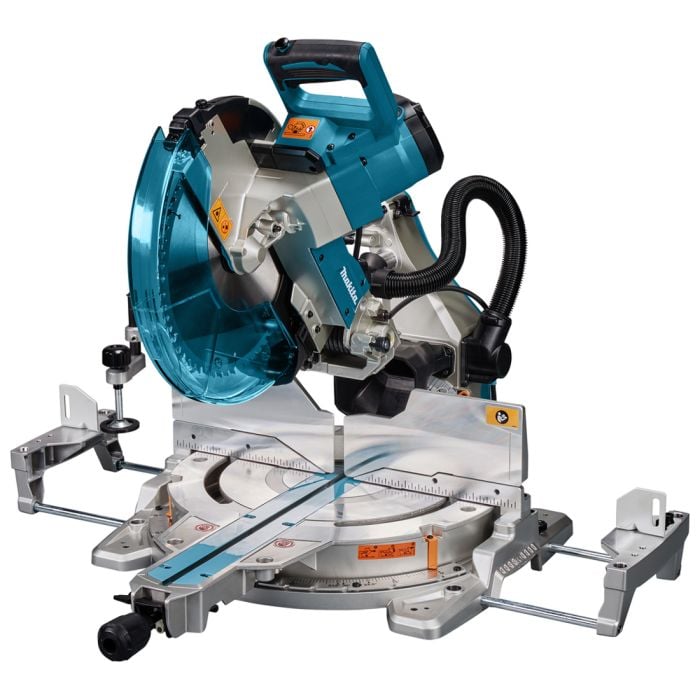

Makita LS1219L 305mm Compound Mitre Saw With Laser Guide
what's in the box
- 1x LS1219L 305mm Compound Mitre Saw
- 1x TCT Saw Blade 305mm x 25.4 x 60T
- 1x Vertical Vise
- 1x Dust Bag
- 1x Triangular Rule
- 1x Hex Wrench
Notes From PTW Expert
The most compact design in its class for easy job site portability
Overview
Makita LS1219L 305mm Compound Mitre Saw With Laser Guide
The Makita LS1219L 305mm Compound Mitre Saw is powered by a 15 amp direct drive motor with soft start - a key point of difference. Direct drive enables smoother start-ups and consistent, constant power with no belts to slip or replace. The electric brake provides added convenience, and the electronic speed control maintains constant speed under load for smoother, higher-quality cutting.
Additional features include a high-quality 60T carbide-tipped blade, and a see-through blade guard system for greater visibility of the blade and line-of-cut. The built-in laser indicates the line-of-cut whether the blade is turning or not, and offers micro-adjustments for precise “left-of-blade” or “right-of-blade” cutting. It has dual dust collection ports for improved dust collection capability for use with a bag (included) or vacuum (sold separately). It also has a large-sized aluminium base that improves the stability of cutting stock for more efficient cutting.
FEATURES
- DXT - Deep and eXact cutting Technology, allows a larger cutting capacity due to the innovative direct drive gearbox
- Motor head slides on fixed pipes without extending machine at rear end, so the machine can be placed close to wall
- Front knob for easy bevel adjustment
- Dual dust collection ports provide excellent dust extraction performance
- Linear ball bearing system engineered to deliver "dead-on" accurate cuts
- Powerful 15.0 amp direct drive motor requires less maintenance
- Large-sized aluminium base improves stability of material for efficient cutting
- Positive mitre stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right
- Built-in laser clearly indicates line-of-cut whether blade is turning or not
- On-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting
- Ergonomic rubberised horizontal D-handle design for better fit and added comfort
- Replaceable stainless steel mitre scale features large and easy-to-read markings
- See-through blade guard system for greater visibility of blade and line of cut
- Easy blade changes for increased efficiency
- Easy one-touch slide lock for convenience
- Holders to support a wide work piece
- Connects to dust extractor
- Electric brake
- Soft start
- Double insulation
SPECIFICATION
- Input Wattage:
- 110v: 1450 w
- 240v: 1800 w
- Size LxWxH: 898x580x530
- Blade Diameter: 305 mm
- Bore Diameter: 30 mm
- No Load Speed: 3200 rpm
- Max Mitre Range (L-R): 60°-60°
- Max Bevel Range(L-R): 48°-48°
- Power Supply Cord Length: 2.5 m
- Weight: 29.5 kg
CUTTING CAPABILITIES (H x W)
Mitre Angle | Bevel Angle | ||
45° (left) | 0° | 45° (right) | |
0° | 61 mm x 382 mm | 92 mm x 382 mm | 44 mm x 382 mm |
45° | 61 mm x 268 mm | 92 mm x 268 mm | 44 mm x 268 mm |
60° (right) | – | 92 mm x 185 mm | – |
NOISE & VIBRATION
- Noise Sound Pressure: 91 dB(A)
- Noise Sound Power: 100 dB(A)
- Noise K Factor: 3 dB(A)
- Vibration: 2.5 m/sec²
- Vibration K Factor: 1.5 m/sec²
Available in 110v & 240v
