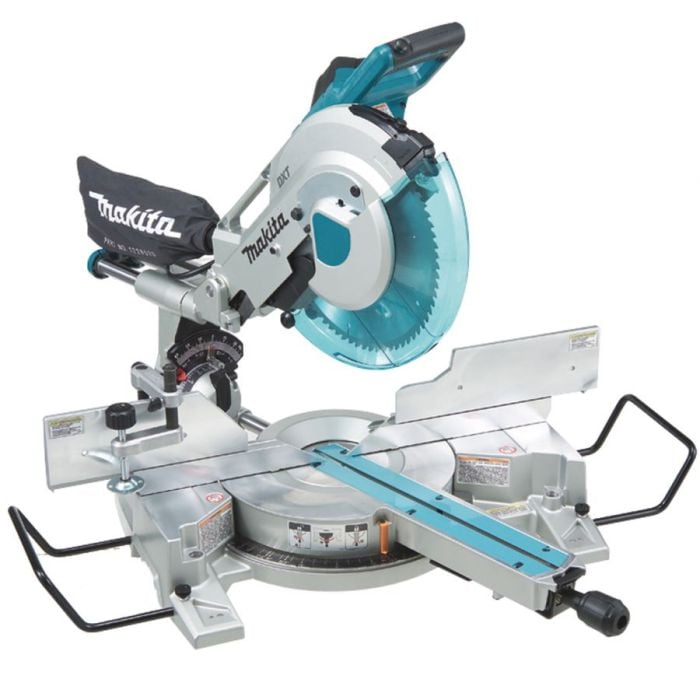

The Makita LS1216 305mm (12") Dual Slide Compound Mitre Saw cuts pieces smoothly and quickly in all directions. All of the major components are machined from metal making this machine more durable and a viable long term investment. This mitre saw cuts through wood at a constant pressure, with a huge capacity and with great accuracy that gives a cleaner and more even cut.
FEATURES
DXT - Deep and Exact Cutting Technology
Deep cutting - 3 stage reduction gear unit and movable rear blade guard provide larger capacities of cutting crown molding or skirting board
Capable of diagonal cutting up to 203mm in crown molding
Capable of vertical cutting up to 165mm in baseboard (skirting)
Exact cutting is obtained by using 4 short poles instead of the usual 2 longer poles. This also reduces vibration and makes for more precise cutting.
6 linear ball bearings are used to support the 4 poles for smooth and precise sliding out
Double sliding guide fence - the upper and the lower sections slide independently for added convenience; each upper fence slides outwards for bevel cut and each lower fence slides inwards to securely hold small workpieces for precise and exact cutting
Quick and accurate mitre angle lock - mitre angle can be locked or unlocked by simply turning the handle 90°
Positive stops at 0°, 15°, 22.5°, 31.6° and 45°
SPECIFICATION
Voltage: 110v / 240v
Blade Diameter: 305 mm
Blade Body Thickness: 1.6 mm - 2.4 mm
Bore (Arbor) Diameter: 30 mm
Max. Mitre Angle: Left 52° / Right 60°
Max. Bevel Angle: Left 45° / Right 45°
No Load Speed: 3,200 rpm
Dimensions (L x W x H): 806 mm x 640 mm x 721 mm
Net Weight: 26.5 kg
CUTTING CAPABILITIES (H x W)
Mitre Angle
Bevel Angle
45° (left)
0°
5° (right)
0°
59 mm x 382 mm
87 mm x 382 mm
44 mm x 382 mm
69 mm x 363 mm
102 mm x 363 mm
54 mm x 363 mm
45° (left and right)
59 mm x 268 mm
87 mm x 268 mm
44 mm x 268 mm
69 mm x 255 mm
102 mm x 255 mm
54 mm x 255 mm
52° (left and right)
–
87 mm x 233 mm
–
–
102 mm x 220 mm
–
60° (right)
–
87 mm x 185 mm
–
–
102 mm x 178 mm
–
NOISE & VIBRATION
Sound Pressure Level (LpA): 91 dB(A)
Sound Power Level (LWA): 100 dB(A)
Uncertainty (K): 3 dB(A)
Vibration Emission (ah): 2.5 m/s² or less
Uncertainty (K): 1.5 m/s²
Available In 110v & 240v
What's in the box
1x LS1216 305mm Mitre Saw
1x TCT Saw Blade
1x Dust Bag
1x Triangular Rule
1x Socket Wrench
1x Vertical Vice
1x Safety Switch Button
Notes From PTW Expert
110v SKU: MAKLS1216-1
240v SKU: MAKLS1216-2
Apologies: Only available for delivery within the UK & Ireland
