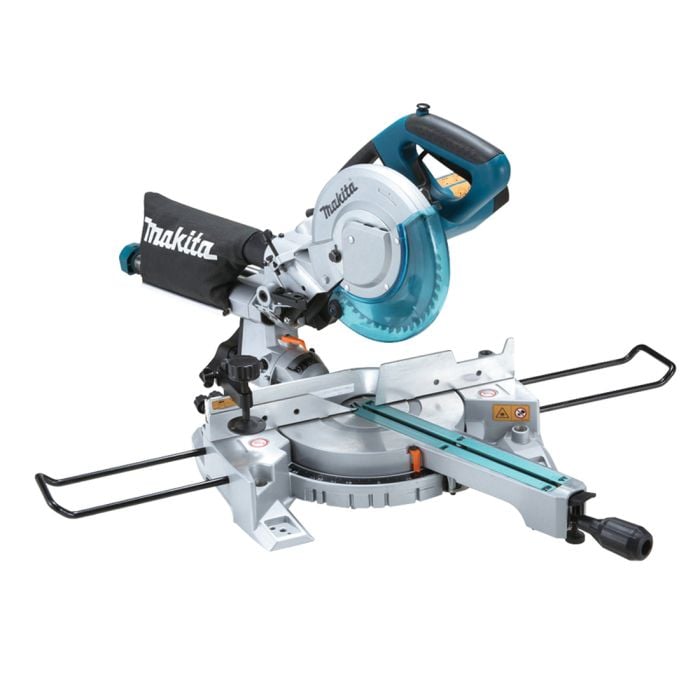

Makita LS0815FLN Slide Compound Mitre Saw 216mm With Laser Guide
The new Makita LS0815FL 216mm slide compound mitre saw has a features list ideally suited to first and second fix on-site carpentry operations.
It is a 216mm (8-1/2") cost-effective slide compound mitre saw with an integrated laser marker, LED job light and a maximum mitre range of 45-60°. With positive stops at 0, 15, 22.5, 31.6 and 45° which make mitre and repeat settings simple and quick. Four steel bars with 6 linear ball bearings are used for smooth and precise sliding action. A soft start 1,400W motor provides the power which will run the blade up to 5,000rpm without load. The rigid, cast alloy base and twin parallel slides give a high level of accuracy with the blade at any angle.
Saws with slides above each other as opposed to side by side as on the LS0815FL, prove to be inaccurate as the drive head has a tendency to tilt the slides into a curved track. Twin material support bars are fitted either side of the base plate which also has a left side sub fence with a fixed fence on the right side. The stock clamping post can be fitted to either side. A soft grip handle is provided for ease of transportation.
Weighing in at 14.2kg, it's relatively easy to move around the workshop or site. A sliding sub-fence is fitted on the left hand side as well as work supports on each side.
FEATURES
Soft start
Soft grip handle
Built in laser guide
LED job light
Sliding sub fence (Left side only)
High cutting capacity
Lightweight and portable at 14.5kg for easy site transport
Holder can be attached to both sides of base
SPECIFICATION
Voltage: 110v / 240v
Laser Type: Red Laser 650 nm, <1 mW (Laser Class 2)
Blade Diameter: 216 mm
Blade Body Thickness: 1.5 mm - 2.5 mm
Bore (Arbor) Diameter: 30 mm
Max. Mitre Angle: Left 50° / Right 60°
Max. Bevel Angle: Left 48° / Right 5°
No Load Speed: 5,000 rpm
Dimensions (L x W x H): 755 mm x 450 mm x 488 mm
Net Weight: 14.2 kg
MAKITA IS0815FL CUTTING CAPABILITIES (H x W)
Mitre Angle
Bevel Angle
45° (left)
0°
5° (right)
0°
50 mm x 305 mm
65 mm x 305 mm
60 mm x 305 mm
45° (left and right)
50 mm x 215 mm
65 mm x 215 mm
–
60° (right)
–
65 mm x 150 mm
–
NOISE & VIBRATION
Noise Sound Pressure: 87 dB(A)
Noise Sound Power: 110 dB(A)
Noise K Factor: 3 dB(A)
Vibration K Factor: 1.5 m/sec²
Vibration No Load: 2.5 m/sec²
Available In 110v & 240v
What's in the box
1x LS0815FLN Mitre Saw
1x Vertical Vice
1x Dust Bag
1x Socket Wrench
1x Holder Set
1x Triangular Rule
1x TCT Saw Blade
1x Hex Wrench
Notes From PTW Expert
Please note: Model numbers LS0815FL & LS0815FLN are identical products - the latest 'N' version now comes without the usual 'lock-off lever' for ease of use
This tool has an approx. 2.5m cable length. Extension leads are available if required
