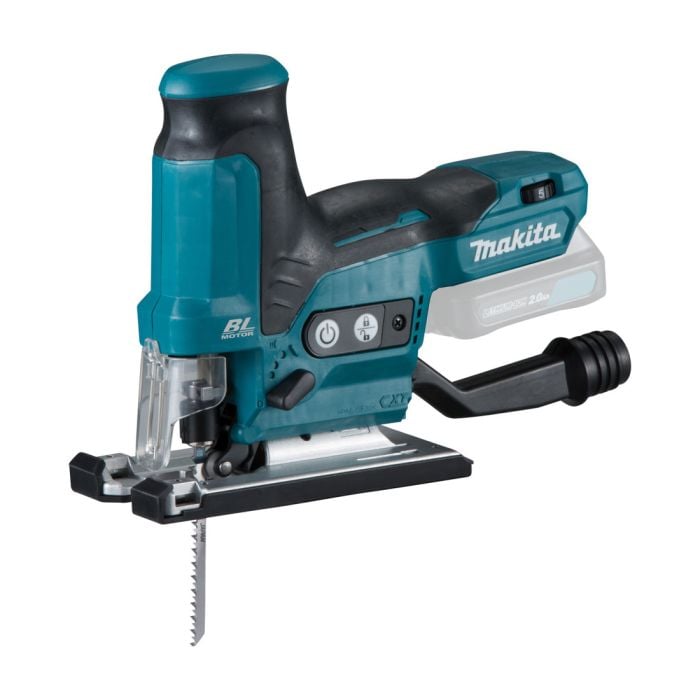

Makita JV102DZ 10.8v CXT Slide Brushless Barrel Grip Jigsaw Body Only

Makita JV102DZ 10.8v CXT Slide Brushless Barrel Grip Jigsaw Body Only

The Makita JV102D 10.8V CXT Lithium-Ion Brushless Barrel Grip Jigsaw delivers fast and efficient cutting, with a compact design that’s engineered for ease-of-use and maneuverability. The JV102D features a barrel grip design for closer-to-work cutting, and is ideal for woodworkers, cabinet makers, remodelers, and general contractors. Makita 10.8V CXT Lithium-Ion slide-style batteries provide improved balance and ergonomics over pod-style batteries, and for convenience the batteries include an on-board L.E.D. charge level indicator (batteries sold separately).

The JV102D has a compact and ergonomic design with lightweight build for less operator fatigue. The efficient Makita-built brushless motor is engineered for longer run time, increased power and speed, and longer tool life. The variable 5-speed control dial (800-3,000 RPM) enables the user to match the speed to the application, and the 3 orbital settings plus straight cutting provide added versatility. The soft start suppresses start-up reaction for better accuracy, and the no-load speed reduction feature automatically reduces SPM for more accurate cutting starts. Convenience features include “tool-less” blade changes, large 2-finger variable speed trigger with lock-on button, dual L.E.D. lights, and a built-in dust blower to clear the line of cut.

FEATURES

• Makita-built brushless motor and 3 orbital settings plus straight cutting deliver faster and more accurate cuts in a variety of materials
• Variable 5-speed control dial (800-3,000 SPM) enables user to match the speed to the application
• Soft start suppresses start-up reaction for better accuracy
• No-load speed reduction feature automatically reduces SPM for more accurate cutting starts
• Efficient BL™ Brushless Motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
• The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
• The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and SPM to the changing demands of the application
• "Tool-less" blade change system allows for faster blade installation and removal for increased productivity
• Tilting base for bevel cuts from 0° - 45°
• Heavy gauge aluminum base for smooth, accurate cutting and added durability
• Dual L.E.D. lights illuminate the work area
• Rubberized soft grip handle provides increased comfort on the job
• Built-in dust blower clears the line of cut for increased accuracy
• Lightweight for reduced operator fatigue
• Compact and ergonomic design

SPECIFICATION

• Voltage: 10.8v
• Capacity in Aluminium: 20 mm
• Capacity in Mild Steel: 10 mm
• Capacity in Wood: 90 mm
• Settings: 3 Orbital + Straight Cut
• Stroke Length: 23 mm
• No Load Speed: 800 - 3000 spm
• Net Weight: 1.9 kg

NOISE & VIBRATION

• Noise Sound Pressure: 85 dB(A)
• Noise Sound Power: 96 dB(A)
• Noise K Factor: 3 dB(A)
• Vibration - K Factor: 1.5 m/sec²
• Vibration - Cutting Chipboard: 11.5 m/sec²
• Vibration - Cutting Sheet Metal: 9.5 m/sec²
