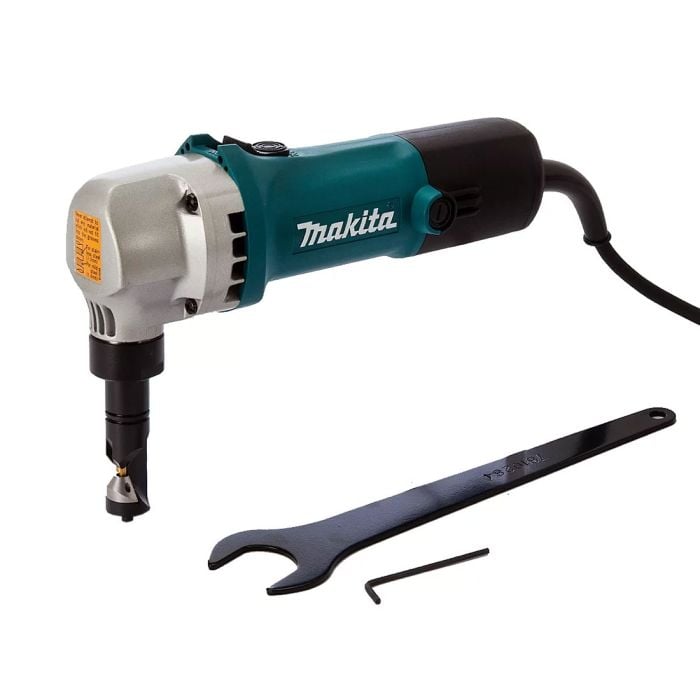

This Makita JN1601 Nibbler is compact, lightweight and performs clean precise cutting in keystone plate, deck plate and other corrugated / trapezoidal sheet materials. Die holder swivels full 360 degrees for easy cutting at an angle to grooves in corrugated/trapezoidal sheet materials. It is ideal for cladding, sheet metal fabrication, car body work, and sunroof applications.
FEATURES
High cutting capacity
Double Insulation
Built in thickness gauge
Precise burr-free curved and straight cuts
Easy-to-operate slide type on/off switch with lock-on function
Anti-restart function for safety (with warning lamp)
Battery capacity warning lamp
Rubberised soft grip provides comfortable and sure grip
SPECIFICATION
Input Wattage: 550 w
Max Cut in Mild Steel: 1.6 mm
Max Cut in Stainless Steel: 1.2 mm
Strokes per Minute: 2,200 spm
Min Cutting Outside Edge: 50 mm
Radius Inside Edge: 45 mm
Net Weight: 1.6 kg
NOISE & VIBRATION
Noise Sound Pressure: 83 dB(A)
Noise Sound Power: 94 dB(A)
Noise K Factor: 3 dB(A)
Vibration K Factor: 1.5 m/sec²
Vibration Cutting Sheet Metal: 7.5 m/sec²
Available in 110v & 240v
What's in the box
1x JN1601 Nibbler 1.6mm Body Only
1x Hex Wrench
1x Punch and Die Set
1x Wrench Holder
Notes From PTW Expert
Usually used by mechanics, sheet metal workers, engineers & fabricators
