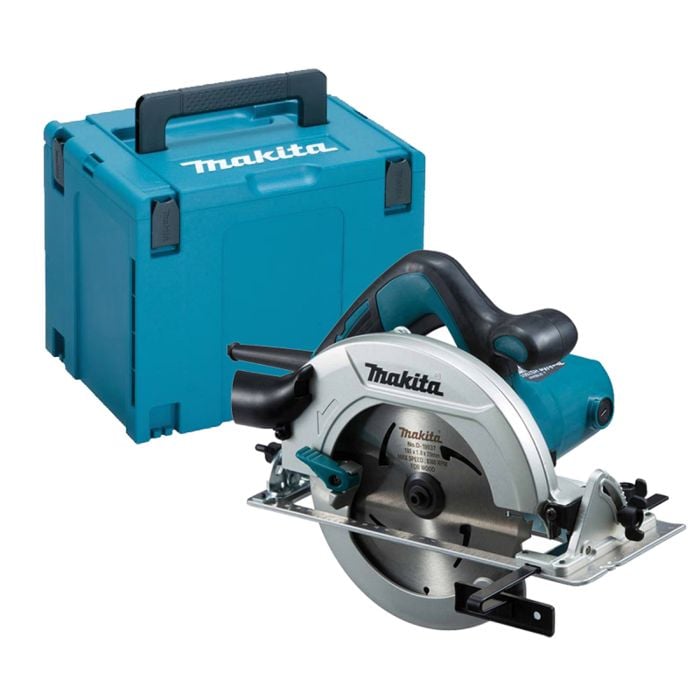

Makita HS7601J 190mm Deep Cut Circular Saw In Makpac Carry Case

Makita HS7601J 190mm Deep Cut Circular Saw In Makpac Carry Case

The Makita HS7601 is a 190mm (7-1/2") corded circular saw designed for professional and DIY use, combining a compact, lightweight design with a robust 1,200W motor. It is built for ripping and cross-cutting timber and sheet materials, featuring an aluminium die-cast safety cover and base plate for increased durability. Delivers a no-load speed of 5,200 rpm, capable of a maximum cutting depth of 66 mm at 90° and 46 mm at 45°.

FEATURES

• Double Insulation
• Compact and lightweight design
• New Aesthetic Design
• Rear dust exhaust port
• Connectable to dust extractor
• Rear angular guide for smooth and precise adjustment of bevel angle
• Single action lever for quick adjustment of cutting depth
• Ergonomic soft grip.
• Flat motor housing end
• Aluminium die-cast safety cover
• Aluminium base plate
• Compatible with guide rail (with adaptor 197005-0 - sold separately)

SPECIFICATION

• Depth of Cut @ 90°: 66 mm
• Depth of Cut @ 45º: 46 mm
• Blade Diameter: 190 mm
• Bore Diameter: 30 mm
• Input Wattage: 1200 w
• No Load Speed: 5200 rpm
• Net weight: 4.0 kg

NOISE & VIBRATION

• Noise sound pressure: 87 dB(A)
• Noise sound power: 98 dB(A)
• Noise K factor: 3 dB(A)
• Vibration K factor: 1.5 m/sec²
• Vibration: Cutting Wood: 2.5 m/sec²

Available In 110v & 240v
