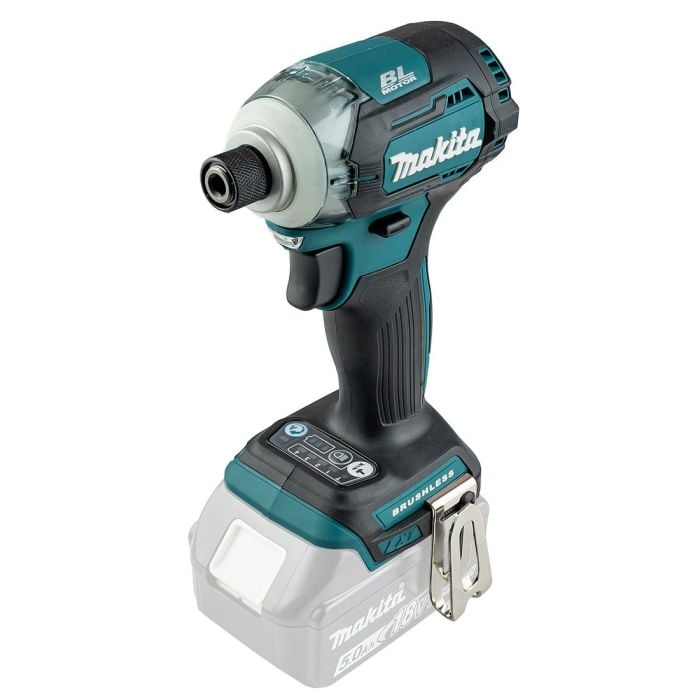

Makita DTD170Z 18v LXT Li-Ion Brushless Cordless Impact Driver Body Only

Makita DTD170Z 18v LXT Li-Ion Brushless Cordless Impact Driver Body Only

The new Makita DTD170 impact driver is technically a 6-function impact driver, with four speeds and matched impact power: then the newly introduced operating mode, 'T-Mode' is used for tightening self-drilling Tek screws and the new A-Mode (Assist mode) which, when selected starts the rotation slowly allowing maximum control of the screw as it starts to bite into the material. Once the impact driver detects the screw tightening it switches to full speed and full impact power to complete the tightening sequence. The A-Mode is designed to eliminate ‘screw cam-out’ and ‘cross threading’ caused by high speed rotation before the screw bites in the material.

The new Makita DTD170 generates a massive 175 Nm maximum tightening torque with four impact speeds and power stages ranging from soft setting of 1100 rpm and 1100 impacts per minute; through medium and hard setting levels up to a maximum of 3,600 rpm and 3,800 ipm. This impact driver handles high strength bolts up to M14 and 22x125mm coarse thread screws.

In line with all new Makita tools the performance increases whilst the overall size of the machines decreases. The new top-of-the-range Makita DTD170 impact driver has a compact overall body length of just 117mm and weighs only 1.5kg.

MAKITA DTD170 FEATURES

• New impact mode, 'Assist-Mode' drives slowly to start screw before full tightening to eliminate "screw cam-out" and "cross threading“
• TEK mode ('T-mode') reduces impact power during final stages of fastener seating
• Electronic 4-stage impact power selection
• Massive 175 Nm max tightening torque
• More compact body with overall length of just 117mm and lightweight at only 1.5 Kg
• Brushless DC motor with high power to weight and size ratio
• Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
• One touch sliding chuck for easy bit installation and removal
• Twin LED job lights with pre-glow and afterglow features
• Ergonomic soft rubber grip design for vibration absorption and comfortable operation
• Variable speed control by trigger with electric brake

MAKDTD170Z SPECIFICATION

• Voltage: 18v
• Max Torque (Nm): 175
• Brake Type: Electric
• LED Job Light: Yes / Twin / Pre-glow / After-glow
• Battery Capacity Indicator: Yes
• Battery Compatibility: 18v Lithium-Ion (LXT)
• Rotation: Forward & Reverse
• Variable Speed Control Trigger: Yes / + 4-Stage Impact Power Selection
• No Load Speed (RPM):
• Max: 0-3600 / H: 0-3200 / M: 0-2100 / S: 0-1100
• Machine Screw Capacity: M4-M8
• Standard Bolt Capacity: M5-M16
• High Tensile Bolt Capacity: M5-M14
• Coarse Thread Length Capacity (mm): 22-125
• Max. Impacts Per Minute (ipm): 4 Stages as below:
• Max: 0-3800 / H: 0-3600 / M: 0-2600 / L: 0-1100
• Driving Shank: 1/4" Hex
• Overall Length (mm): 117
• Net Weight (Kg with 1.5/2Ah Battery): 1.2
• Net Weight (Kg with 3/4/5Ah Battery): 1.5
• Brushless Motor: Yes
