Makita DSP601TJUKIT Twin 18v LXT Cordless Plunge Saw 165mm Full Kit Inc 2x 5.0Ah Batts

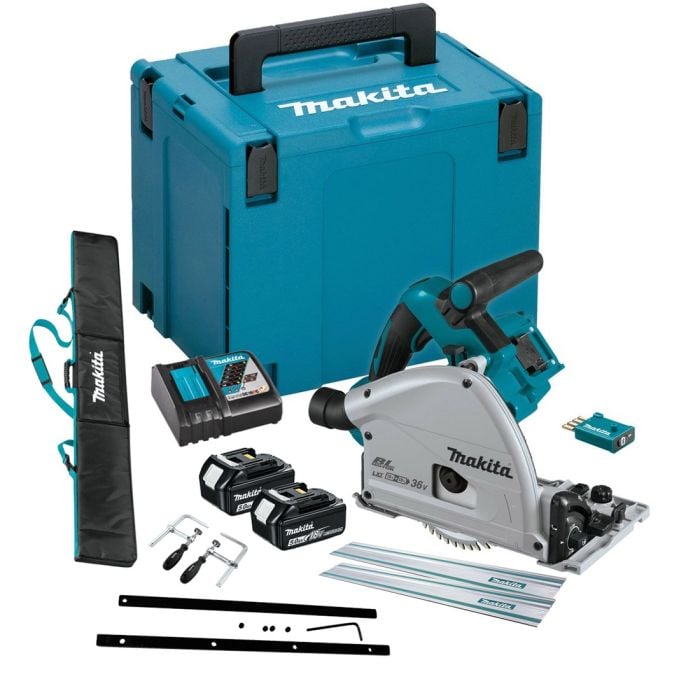

Makita DSP601TJUKIT Twin 18v LXT Cordless Plunge Saw 165mm Full Kit Inc 2x 5.0Ah Batteries & DC18RC Charger in Makpac Type 4 Carry Case with Guide Rail System Kit

The Makita DSP601 Twin 18v (36v) LXT Brushless 165mm (6-1/2”) Plunge Circular Saw delivers precise and more accurate cutting when combined with the Makita guide rail system. The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18 V LXT batteries with Automatic Torque Drive Technology (ADT) Technology, which adjusts cutting speed and torque during the cut for optimum performance.

The added feature from the DSP600 is that this DSP601 has Auto-Start Wireless System (AWS) - which connects to the compatible DVC864LZ Dust Extractor with Bluetooth (sold separately). The dust extractor automatically runs while the switch is on.

The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 56mm cutting capacity at 0°, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) this Plunge Circular Saw is a more portable option to a table saw for select applications, and is ideal for use on the job site or in a workshop.

Includes 2x BL1850B 5.0Ah batteries and a DC18RC fast charger - all packed in a Makpac type 4 carry case. This kit also comes with 2x 1.5 metre guide rails, a guide rail joining bar, guide rail clamps and guide rail system carry bag + 1x 198900-7 AWS Bluetooth Transmitter Chip WUT01.

FEATURES

• Powered by 2x 18 volt LXT batteries; more power, speed and run time without the hassles of a cord
• 2x 18 volt LXT batteries - More power, speed and run time without the hassles of a cord (sold separate)
• AWS - Auto-Start Wireless System connects to compatible dust extractors with Bluetooth. The dust extractor automatically runs while the switch is on
• ADT - Automatic Torque Drive Technology automatically changes the cutting speed according to load conditions for optimum operation
• Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
• Variable speed control dial - 2,500 - 6,300 RPM for optimum performance in a variety of materials
• Close to the wall cutting for expanded cutting applications
• Ideal for cutting large wood panels - other wood materials including melamine and MDF, aluminium, and Corian® with optional, material specific blades
• Large cutting capacity - 56mm at 0º; and 40mm at 45º
• Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º
• Electronic speed control maintains constant speed under load for smooth cutting
• Soft start feature for smooth start-ups
• Easy-to-set depth adjustment with large scale
• Smooth and convenient plunge release lever for operator comfort
• Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
• On-board hex wrench for fast and easy blade changes
• Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
• Built-in depth stop allows a preliminary first cut of 2 to 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
• Rubberised soft grip handle provides increased comfort on the job
• Large rear dust port directs material away from the operator and easily connects to a vacuum system
• Slide lever on saw base designed to engage the optional guide rail (sold separately) when bevel cutting for stability
• Electric brake for maximum productivity
• Compact and ergonomic design and lightweight for reduced operator fatigue
• Precise straight and 45º bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail (sold separately)
• 3-stage LED gauges indicate battery charge levels

SPECIFICATION

• Voltage: 18v x 2 (36v)
• No Load Speed: 2,500 –6,300 rpm
• Blade Diameter: 165 mm
• Bore Size: 20 mm
• Max Cutting Capacity at 0°: 56 mm
• Max Cutting Capacity at 45°: 40 mm
• Max Cutting Capacity at 48°: 38 mm
• Net Weight: 5.1kg

NOISE & VIBRATION

• Sound Pressure: 92 dB(A)
• Sound Power Level: 103 dB(A)
• Sound K Factor: 3 dB(A)
• Vibration: 2.5 m/s²
• Vibration K Factor: 1.5 m/s²
