THIS PRODUCT IS NO LONGER AVAILABLE
This product is superseded by:Makita DLX2214TJ 18v Brushless Twin Kit DHP481 Combi & DTD170 Impact Driver inc 2x 5.0Ah Batts
Makita DLX2214TJ 18v Brushless Twin Kit DHP481 Combi & DTD170 Impact Driver inc 2x 5.0Ah Batts
Impact Bits
what's in the box
- 1x DHP481Z Combi Drill
- 1x DTD170Z Impact Driver
- 1x Depth Gauge
- 1x Side Grip Assembly
- 2x Belt Clip
- 2x BL1850B 5.0Ah Batteries
- 1x DC18RC Charger
- 1x Makpac Type 3 Carry Case
Notes From PTW Expert
Both machines are powered by a Brushless DC Motor which is maintenance free, no more replacing brushes
Overview

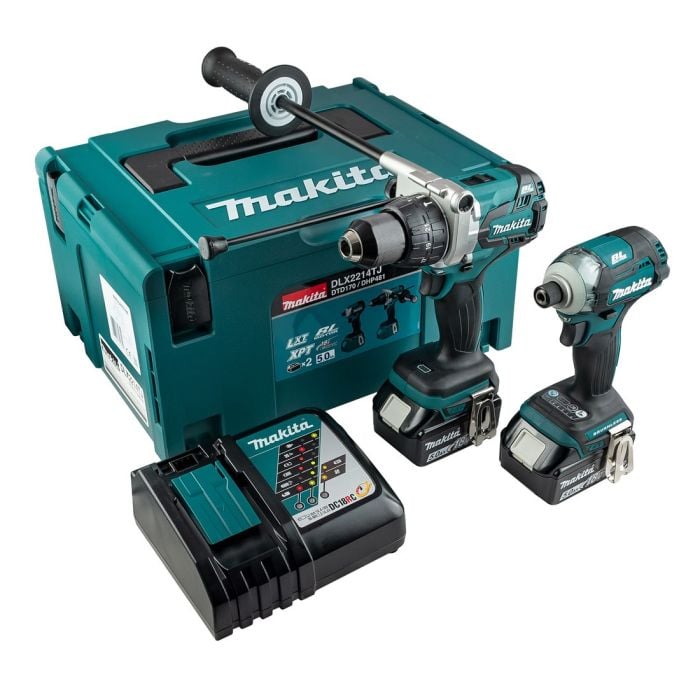

Makita DLX2214TJ 18v LXT Brushless Cordless DHP481 Combi Drill & DTD170 Impact Driver Twin Kit inc 2x BL1850B 5.0Ah Batteries & DC18RC Charger in Makpac Type 3 Carry Case
Makita DLX2214TJ Power Tool Kit 18v brings together two market leading power tools from the professional Makita Power Tool range. This kit includes a DHP481 Combi Drill plus DTD170 Impact Driver powered by 2x 18v 5.0Ah lithium batteries and charger, all packed into a useful MakPac Type 3 Carry Case.
DHP481Z Combi Drill
FEATURES
- Brushless BLDC motor specially designed to provide, above all, more work amount on a single full battery charge
- Forward/reverse rotation
- Single sleeve keyless chuck allows for easy bit installation/removal by one hand
- Electric brake
- Twin LED job light with afterglow
- 2 mechanical gears
- Battery fuel gauge - 3 lights on = more than 50% battery capacity, 2 lights on = 20 to 50% capacity, 1 light on = less than 20% full battery capacity
- Variable speed control by trigger
- Best possible ergonomic handle for drill-driver applications
- Compact overall length of 205mm
- XPT - Extreme Protection Technology
SPECIFICATION
- Voltage: 18v
- Battery Compatibility: 18v Lithium-Ion (LXT)
- Power Output: 640 w
- Soft Application Max Torque: 60 Nm
- Hard Application Max Torque: 115-125 Nm
- Torque Settings: 21 + Drill
- Brake Type: Electric
- No. of Gears: 2
- LED Job Light: Yes / Twin / After-glow
- Battery Capacity Indicator: Yes
- Rotation: Forward / Reverse
- Variable Speed Control Trigger: Yes
- No Load Speed High: 0-2100 rpm
- No Load Speed Low: 0-550 rpm
- Chuck Type: 3-Jaw / Single Sleeve Keyless / All Metal
- Chuck Capacity: 13 mm
- Screw Capacity: Machine Screw: 6 mm
- Screw Capacity: Wood Screw: 10 x 90 mm
- Drill Capacity: Concrete: 16 mm
- Drill Capacity: Metal: 13 mm
- Drill Capacity: Wood: 76 mm
- Impact Rate High: 0-31500 bpm
- Impact Rate Low: 0-8250 bpm
- Overall Length: 205 mm
- Net Weight (Approx) with 1.5/2Ah Batt: 2.5 kg
- Net Weight (Approx) with 3/4/5Ah Batt: 2.7 kg
NOISE & VIBRATION
- Sound Pressure Level (LpA): 85 dB (A)
- Sound Power Level (LWA): 96 dB (A)
- Sound Uncertainty (K): 3 dB (A)
- Drilling Concrete Vibration Emission (ah): 6.5 m/s²
- Drilling Concrete Vibration Uncertainty (K): 1.5 m/s²
- Drilling Metal Vibration Emission (ah): 2.5 m/s²
- Drilling Metal Vibration Uncertainty (K): 1.5 m/s²
DTD170Z Impact Driver
FEATURES
- New impact mode, 'Assist-Mode' drives slowly to start screw before full tightening to eliminate "screw cam-out" and "cross threading“
- TEK mode ('T-mode') reduces impact power during final stages of fastener seating
- Electronic 4-stage impact power selection
- Massive 175 Nm max tightening torque
- More compact body with overall length of just 117mm and lightweight at only 1.5 kg
- Brushless DC motor with high power to weight and size ratio
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- One touch sliding chuck for easy bit installation and removal
- Twin LED job lights with pre-glow and afterglow features
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Variable speed control by trigger with electric brake
SPECIFICATION
- Voltage: 18v
- Battery Compatibility: 18v Lithium-Ion (LXT)
- Max Torque: 175 Nm
- Brake Type: Electric
- LED Job Light: Yes / Twin / Pre-glow / After-glow
- Battery Capacity Indicator: Yes
- Rotation: Forward & Reverse
- Variable Speed Control Trigger: Yes / + 4-Stage Impact Power Selection
- No Load Speed:
- Max: 0-3600 / H: 0-3200 / M: 0-2100 / S: 0-1100 rpm
- Machine Screw Capacity: M4-M8
- Standard Bolt Capacity: M5-M16
- High Tensile Bolt Capacity: M5-M14
- Coarse Thread Length Capacity: 22-125 mm
- Max Impacts Per Minute: 4 Stages as below:
- Max: 0-3800 / H: 0-3600 / M: 0-2600 / L: 0-1100 ipm
- Driving Shank: 1/4" Hex
- Overall Length: 117 mm
- Net Weight (with 1.5/2Ah Battery): 1.2 kg
- Net Weight (with 3/4/5Ah Battery): 1.5 kg
