Makita DLS110Z Twin 18v Cordless Brushless Slide Compound 260mm Mitre Saw Body Only
Makita DLS110Z Twin 18v Cordless Brushless Slide Compound 260mm Mitre Saw Body Only
what's in the box
- 1x DLS110 Cordless Mitre Saw Body Only
- 1x TCT Saw Blade
- 1x Dust Bag
- 1x Hex Wrench
- 1x Vertical Vice
- 1x Triangular Rule
Notes From PTW Expert
Makita DLS110 User Manual Click Here
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
Apologies: Only available for delivery within the UK
Overview
Makita DLS110Z Twin 18v Cordless Brushless Slide Compound 260mm Mitre Saw Body Only

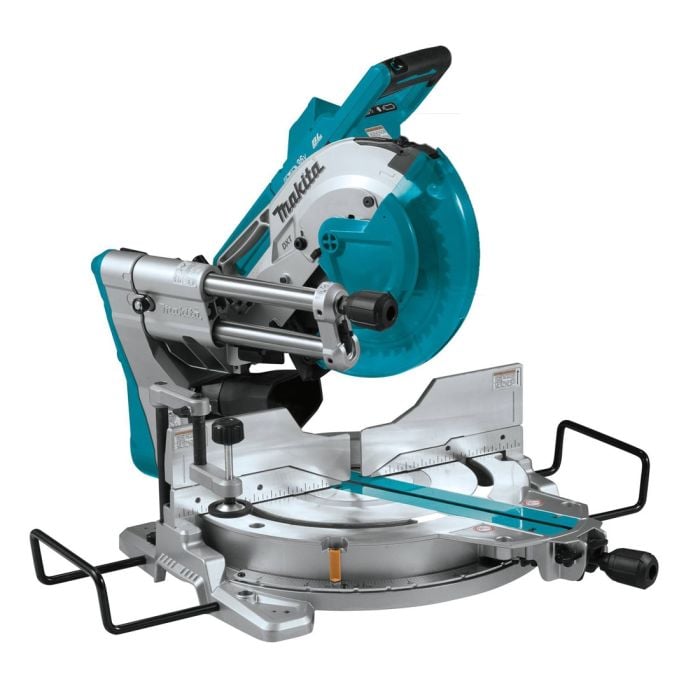

The Makita DLS110 is a 260mm (10-1/4") cordless slide compound mitre saw powered by two 18V Li-ion batteries in the LXT series. It has been designed based on the LS1019 mains machine.
Sold as body only, this tool requires 2x 18v LXT Lithium-Ion batteries (2x BL1850B 5.0Ah or BL1860B 6.0Ah recommended for best runtime). Batteries and chargers sold separately.
FEATURES
- Brushless DC motor with high power to weight and size ratio
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- Single sliding system enables smooth operation to produce superior cuts.
- Professional cutting design and performance (similar to corded) with cordless versatility
- Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
- Rail forward design enables saw to be placed against wall to maximize effective workspace
- 3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
- Integrated guide fence and lower fence increases rigidity and support of materials
- Fence design allows fence to be secured to holders to prevent damage and/or loss
- Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
- Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
- Soft start feature gradually increases speed to eliminate start up shock
- LED charge level indicator displays approximate remaining battery power
- Bevel capacity of 48 Degree left or right with positive stops at 0, 22.5, 33.9 & 45 Degree
- Mitre capacity of 60 Degree left or right with positive stops at 0, 15, 22.5, 31.6 & 45 Degree
- Large mitre table ideal for use with wide materials
- Easy to operate mitre angle lock with free spin releasing lever and locking lever
- Improved dust collection with dual dust collection ports and dust extractor connectivity
- 2-stage safety switch for increased operator safety
- Ergonomic Horizontal Soft Rubber Grip design for vibration absorption and comfortable operation
SPECIFICATION
- Voltage: 18v + 18v (36v)
- Battery Type: LXT Lithium-Ion
- Blade Diameter: 260 mm
- Blade Body Max Thickness: 3.2 mm
- Bore (Arbor) Diameter: 30 mm
- Max. Mitre Angle: Left 60° / Right 60°
- Max. Bevel Angle: Left 48° / Right 48°
- No Load Speed: 4,400 rpm
- Dimensions (L x W x H): 805 mm x 644 mm x 660 mm
- Net Weight (inc Battery): 27.3 kg
CUTTING CAPABILITIES (H x W)
Mitre Angle | Bevel Angle | ||
45° (left) | 0° | 5° (right) | |
0° | 42 mm x 310 mm | 68 mm x 310 mm | 29 mm x 310 mm |
58 mm x 279 mm | 91 mm x 279 mm | 43 mm x 279 mm | |
45° (left and right) | 42 mm x 218 mm | 68 mm x 218 mm | 29 mm x 218 mm |
58 mm x 197 mm | 91 mm x 197 mm | 43 mm x 197 mm | |
60° (right) | – | 68 mm x 155 mm | – |
– | 91 mm x 139 mm | – |
NOISE & VIBRATION
- Noise Sound Pressure: 92 dB(A)
- Noise Sound Power: 102 dB(A)
- Noise K Factor: 3 dB(A)
- Vibration K Factor: 1.5 m/sec²
- Vibration No Load: 2.5 m/sec² or less
