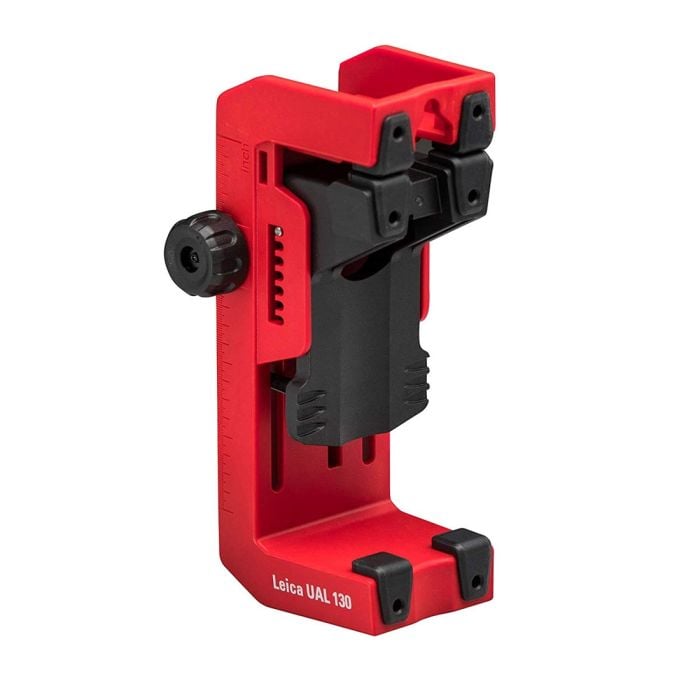

Leica UAL 130 Wall Mount Adaptor for LINO Laser Levels

Leica UAL 130 Wall Mount Adaptor for LINO Laser Levels using Twist 250 & 360 Mounts

The Leica LINO™ UAL 130 wall mount bracket for attaching Leica LINO™ Lasers to profiles, tracks and walls. Fits perfectly to the TWIST 250 and TWIST 360 Magnetic Smart Adaptors for steppless height referencing.

FEATURES

• Can be used for the new Leica LINO L2, L2G, L2P5, L2P5G and P5
• Allows to attach and adjust the height of a Leica LINO™ by 130 mm easily and precisely with TWIST adaptor
• Clamping width up to 30mm
• Mountable on 1/4” and 5/8” tripod threads
• Works only in combination with a magnetic TWIST adaptor
• Very quick and easy to attach and adjust

SPECIFICATION

• Fine Adjustment Range: 130 mm (5.11")
• Clamping Width: 0-30 mm (0–1.18")
• Clamping Depth: 45 mm (1.77")
• Scale: mm / inch
• Tripod Thread: 1/4” & 5/8”
• Protection Class: IP54 (IEC 60529) Dust & Splash Water
• Drop Tested: 2 m (6.5 ft)
• Dimensions (L x W x H): 180 x 73 x 75 mm
• Weight: 390 g (0.86 lbs)
• Compatible with: TWIST250 & TWIST360
• Article Number: 866130
