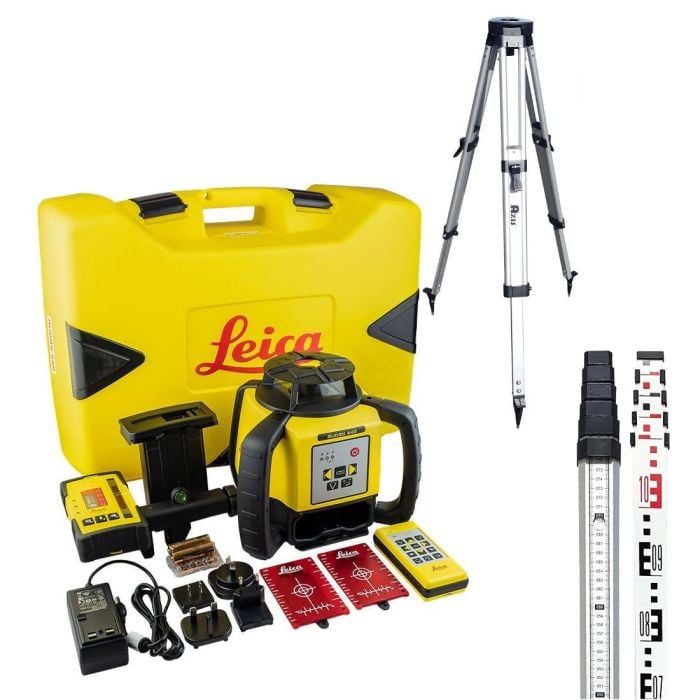

Leica R640BL Rugby 640 Basic Lithium-Ion Rotating Gradient Laser, Tripod & Staff Set

Leica R640BL Rugby 640 Basic Lithium-Ion Rotating Gradient Laser, Tripod & Staff Set

The Leica Rugby 640 Laser Level with Lithium-Ion rechargeable battery is a multipurpose self-levelling vertical, horizontal, manual and 90° slope in dual axis construction laser level. This new laser squares, aligns and levels faster and easier than ever before increasing work performance by eradicating errors and downtime.

Foundations and footings work such as pad placement, framework levelling and concrete forming have never been more simple or efficient. The new Scan 90 feature makes layouts quicker allowing the beam to move to the left or right. It also has an automatic plumb down function and sleep mode which conserves power without losing any setup information.

Powered by a long-lasting Lithium-Ion rechargeable battery pack which is extremely robust and allows more than 40 hours of operation per charge.

FEATURES

• Self levelling horizontal laser
• Point and speed control functions
• Scan 90 – make layout easier by quickly moving the beam to the left or right side
• Beam down – automatic and accurate plumb down, for alignment over a reference point
• Sleep mode – Save battery and put the Leica Rugby into sleep mode without disturbing your set up
• The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day
• 5 years warranty

SPECIFICATION

• Laser Class: Class 2
• Laser Type: 635 nm (Red)
• Accuracy: ±2.2 mm at 30 m (±3/32" at 100 ft)
• Rotation: 0, 2, 5, 10 rps
• Scanning: 10, 45, 90°
• Battery Life at 20°C: 60 / 40 hrs
• Dimensions: 212 x 239 x 192 mm
• Protection Class: IP67 Dust/Water Proof
• Max Range (ø) - RE120/120G: 500 m (1,650 ft)
• Max Range (ø) - RE140/160: 600 m (2,000 ft)
• Max Range (ø) - RC400 Remote: 200 m (650 ft)
• Working Temperature: –20 to +50 °C (–4 to +122 °F)

Leica 120 Basic Rod Eye

The Leica Rod Eye 120 Basic has 2 clear displays on the front and back of the receiver. With 3 audio settings, off/low/high, up to 105 decibels for noisy jobs. The versatile rod bracket ensures solid mounting to the grade rod (supplied). With a protective over-mould that protects the receiver from drops in tough job site conditions.

FEATURES

• LCD indication - two clear displays on the front and back of the receiver
• Audio indication - three settings, high for noisy outdoor jobs and low for indoor applications
• Grade rod bracket - attaches easily to your grade rod

SPECIFICATION

• Working Diameter (Laser Dependent): 900 m
• Detection Window: 70 mm
• Detectable Spectrum: 600-800 nm
• Detectable Accuracies:
• Fine: ±1.0 mm
• Medium: ±2.0 mm
• Coarse: ±3.0 mm
• Audio Volumes: High/Low/Off
• Automatic Shut Off: 10 Mins
• Arrow Display: 9 Channels
• Protection Class: IP67
• Battery Life: +50 hrs
• Dimensions: 173 x 76 x 29 mm
• Operating Temperature: -20°C to +50°C

UNIVERSAL 5 METRE ALUMINIUM SURVEY MEASURING STAFF

FEATURES

• 5m 5-section aluminium telescopic survey measuring staff
• Use for all general levelling and survey work
• The rear face is marked in millimetres as a height rod
• For use with a laser detector when used with a rotating laser, or a line laser or with an automatic dumpy level
• Supplied with storage bag

SPECIFICATION

• Material: Aluminium
• Length: 5 Metres
• Part Numbers: AX-STME5 / 012-IMELS5
