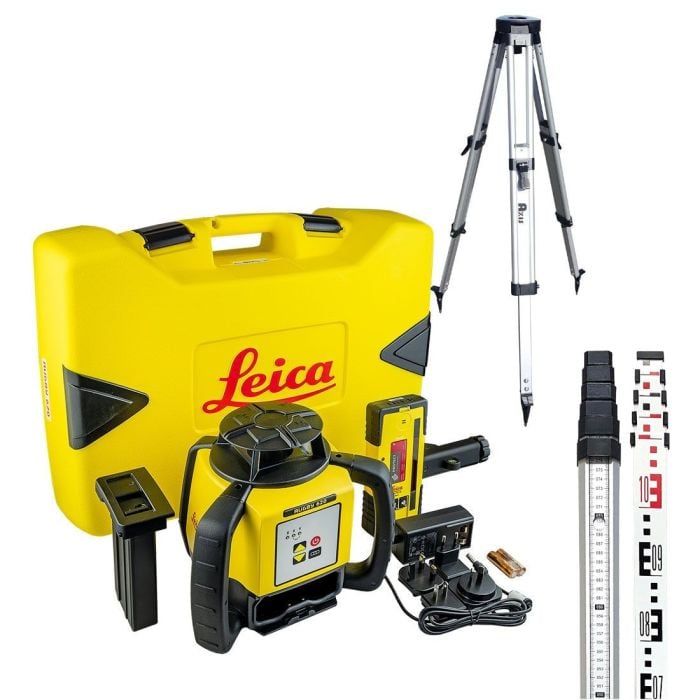

Leica R620BL Rugby 620 Basic Lithium-Ion Slope Laser, Tripod & Staff Set

Leica R620BL Rugby 620 Basic Lithium-Ion Slope Laser, Tripod & Staff Set

The Leica Rugby 620 Laser Level with Lithium-Ion rechargeable battery is an excellent self-levelling horizontal and manual slope in one axis general construction laser level. This new laser squares, aligns and levels faster and easier than ever before increasing work performance by eradicating errors and downtime.

Enhance the Leica Laser Rugby 620 with additional plug and play accessories. Charge and use at the same time with the environmentally friendly A170 Solar Panel, power from a vehicle with a car charger or any battery with the 12v battery cable.

Rugby 620 Basic Slope Laser

FEATURES

• Concrete forming, pad placement and framework levelling; setting foundations and footings has never been more efficient
• Slope matching up to 8% in single axis
• The rubber over mould handles offer great protection and easy grip handles
• The Rugby 620 laser is protected to IP67 dust and water protected
• The product casts a horizontal laser plane or a laser beam for the purpose of alignment
• The laser beam can be detected by means of a laser detector
• Remote control of product
• Data communication with external appliances

SPECIFICATION

• Laser Class: Class 1
• Laser Type: 635 nm (Red)
• Accuracy: ±2.2 mm at 30 m (±3/32" at 100 ft)
• Rotation: 10 rps
• Max Range (ø) - RE120/120G: 600 m (2000 ft)
• Max Range (ø) - RE140/160: 800 m (2.600 ft)
• Working Temperature: –20 to +50 °C (–4 to +122 °F)
• Battery Life at 20°C: 60 / 40 hrs
• H.I Elevation Alert: 5hz
• Dimensions: 212 x 239 x 192 mm
• Protection Class: IP67 Dust/Water Proof
• Max Range (ø) - RE120/120G: 800 m (2,600 ft)
• Max Range (ø) - RE140/160: 1,100 m (3,600 ft)
• Working Temperature: –20 to +50 °C (–4 to +122 °F)

Leica 120 Basic Rod Eye

The Leica Rod Eye 120 Basic has 2 clear displays on the front and back of the receiver. With 3 audio settings, off/low/high, up to 105 decibels for noisy jobs. The versatile rod bracket ensures solid mounting to the grade rod (supplied). With a protective over-mould that protects the receiver from drops in tough job site conditions.

FEATURES

• LCD indication - two clear displays on the front and back of the receiver
• Audio indication - three settings, high for noisy outdoor jobs and low for indoor applications
• Grade rod bracket - attaches easily to your grade rod

SPECIFICATION

• Working Diameter (Laser Dependent): 900 m
• Detection Window: 70 mm
• Detectable Spectrum: 600-800 nm
• Detectable Accuracies:
• Fine: ±1.0 mm
• Medium: ±2.0 mm
• Coarse: ±3.0 mm
• Audio Volumes: High/Low/Off
• Automatic Shut Off: 10 Mins
• Arrow Display: 9 Channels
• Protection Class: IP67
• Battery Life: +50 Hrs
• Dimensions: 173 x 76 x 29 mm
• Operating Temperature: -20°C to +50°C

UNIVERSAL 5 METRE ALUMINIUM SURVEY MEASURING STAFF

FEATURES

• 5m 5-section aluminium telescopic survey measuring staff
• Use for all general levelling and survey work
• The rear face is marked in millimetres as a height rod
• For use with a laser detector when used with a rotating laser, or a line laser or with an automatic dumpy level
• Supplied with storage bag

SPECIFICATION

• Material: Aluminium
• Length: 5 Metres
• Part Numbers: AX-STME5 / 012-IMELS5
