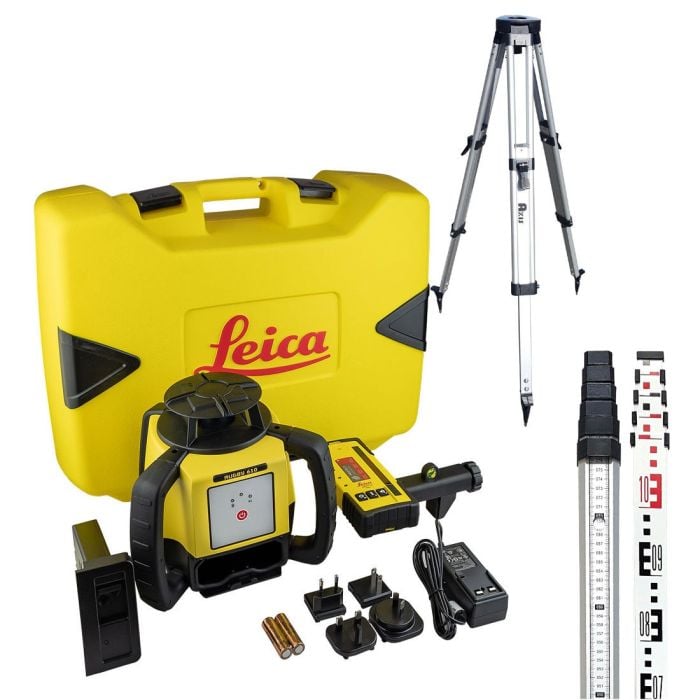

Leica R610BL Rugby 610 Basic Lithium-Ion Rotary Laser, Tripod & Staff Set

Leica R610BL Rugby 610 Basic Lithium-Ion Rotary Laser, Tripod & Staff Set

Whether it is concrete pouring, form-work levelling, transferring or checking of heights, the Leica Rugby 610 Rotary Laser Level with Lithium-Ion rechargeable battery offers increased productivity combined with the ultimate ease of use. One button interface makes the operation of laser extremely easy and absolutely fool proof. No training and no preparation is required - get right to work.

The Leica Rugby 610 Basic Rotating Laser is self-levelling horizontal and has superb performance with all Leica Rod Eye Receivers - extend you working range using the Rod Eye and Tripod that comes in this kit. Level, align and square much quicker than ever before, eliminating costly errors and downtime!

Rugby 610 Basic Rotary Laser

FEATURES

• One button activation
• H.I elevation alert
• Assuring high reliability and no downtime
• Laser is sealed to the water and dust protection standard (IP 67)
• The rubber over mould handles offer great protection and easy grip handles
• Leica Geosystems grants customers with Lifetime Manufacturer's Warranty and three year No Cost* period for the Rugby 610 laser level
• *Available for free through online registration within 8 weeks from the purchase date

SPECIFICATION

• Laser Class: Class 2
• Laser Type: 635 nm (Red)
• Accuracy: ±2.2 mm at 30 m (±3/32" at 100ft)
• Rotation: 10 rps
• Battery Life at 20°C: 60 / 40 hrs
• H.I Elevation Alert: 5 hz
• Dimensions: 212 x 239 x 192 mm
• Protection Class: IP67 Dust/Water Proof
• Max Range (ø) - RE120/120G: 800 m (2,600 ft)
• Max Range (ø) - RE140/160: 1,100 m (3,600 ft)
• Working Temperature: –20 to +50 °C (–4 to +122 °F)

Leica Rod Eye 120 Basic Receiver

The Leica Rod Eye 120 Basic has 2 clear displays on the front and back of the receiver. With 3 audio settings, off/low/high, up to 105 decibels for noisy jobs. The versatile rod bracket ensures solid mounting to the grade rod (supplied). With a protective over-mould that protects the receiver from drops in tough job site conditions.

FEATURES

• LCD indication - two clear displays on the front and back of the receiver
• Audio indication - three settings, high for noisy outdoor jobs and low for indoor applications
• Grade rod bracket - with a level vial, attaches easily to your grade rod

SPECIFICATION

• Working Diameter (Laser Dependent): 900 m
• Detection Window: 70 mm
• Detectable Spectrum: 600-800 nm
• Detectable Accuracies:
• Fine: ±1.0 mm
• Medium: ±2.0 mm
• Coarse: ±3.0 mm
• Audio Volumes: High/Low/Off
• Automatic Shut Off: 10 Mins
• Arrow Display: 9 Channels
• Protection Class: IP67
• Battery Life: +50 hrs
• Dimensions: 173 x 76 x 29 mm
• Operating Temperature: -20°C to +50°C

UNIVERSAL 5 METRE ALUMINIUM SURVEY MEASURING STAFF

FEATURES

• 5m 5-section aluminium telescopic survey measuring staff
• Use for all general levelling and survey work
• The rear face is marked in millimetres as a height rod
• For use with a laser detector when used with a rotating laser, or a line laser or with an automatic dumpy level
• Supplied with storage bag

SPECIFICATION

• Material: Aluminium
• Length: 5 Metres
• Part Numbers: AX-STME5 / 012-IMELS5
