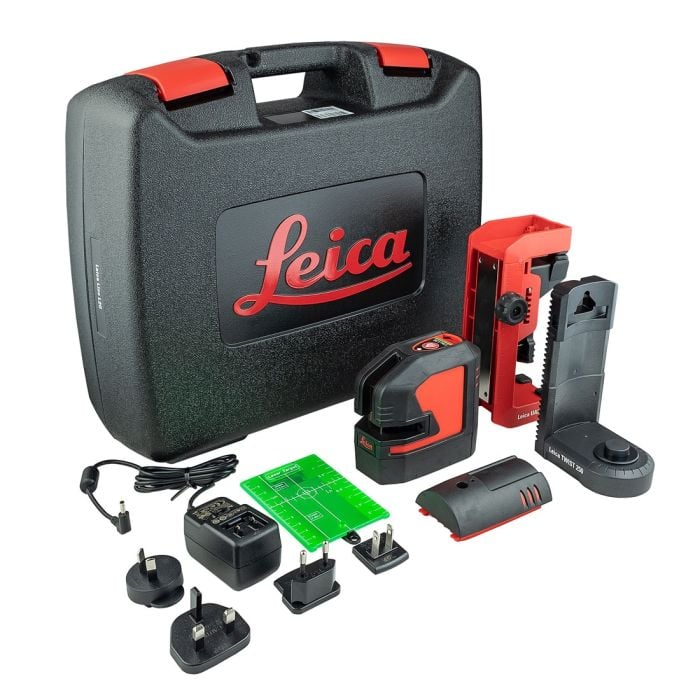

Leica LINO L2G Self Levelling Green Cross Line Laser Kit 35m Range

Leica LINO L2G Self Levelling Green Cross Line Laser Kit 35m Range

Exact and quick projection of horizontal and vertical lines

The time of consuming and tedious drawing of lines on the wall is a thing of the past. The Leica LINO L2G projects them exactly, quickly and easily – allowing you to concentrate on the job in hand. The improving leading angle ensures outstanding visibility and extension Of the laser lines and allow perfect levelling and alignment at long distances.

FEATURES

• GREEN LASER VISIBILITY - Leica’s latest green laser technology brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances.
• TRIPLE POWER CONCEPT - the Leica LINO L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.
• MAGNETIC SMART ADAPTORS - magnetic smart adaptors allow you to quickly position your LINO L2G with absolute precision. You can set up the rotatable adaptor over edges and profiles, or attach it to iron pipes, tracks and bars with the addition of the UAL 130 adaptor.
• ALWAYS LEVEL - the Leica LINO L2G is a self-levelling laser. It automatically corrects its positioning when out of level up to ± 4°. The laser beams flash if the tilt is outside this range to prevent errors.
• CONSTRUCTION SITE PROOF - the Leica LINO L2G is dust and spray water protected to IP 54 standards and comes in a hard case allowing you to store all accessories safely.

SPECIFICATION

• Range: Up to 35 m (Depending on Lighting Conditions)
• Range with Laser Receiver: Up to 80 m (Depending on Lighting Conditions)
• Levelling Accuracy: ±0.2 mm / m
• Self-Levelling Range: ±4 °
• Self-Levelling Time: <3 s
• Number of Laser Lines: 2
• Beam Direction: Vertical / Horizontal
• Laser Line Width (at 5m): <2 mm
• Laser Type: 525 nm / Class 2 (Green)
• Battery Type: Li-ion Rechargeable / 3x AA 1.5v (AA Batteries Not Included)
• Operating Time: Up to 28 hrs Li-ion (Depending on Laser Mode)
• Temperature Range Storage: -25 to 70°C (-13 to 158°F)
• Temperature Range Operation: -10 to 50°C (14 to 122°F)
• Protection Class: IP 54
• Dimensions: 110 x 60 x 100 mm
• Weight with Batteries: 530 g
• Tripod Thread LINO: 1/4"
• Tripod Thread Adaptor: 1/4" + 5/8"
• Article No: 864420
