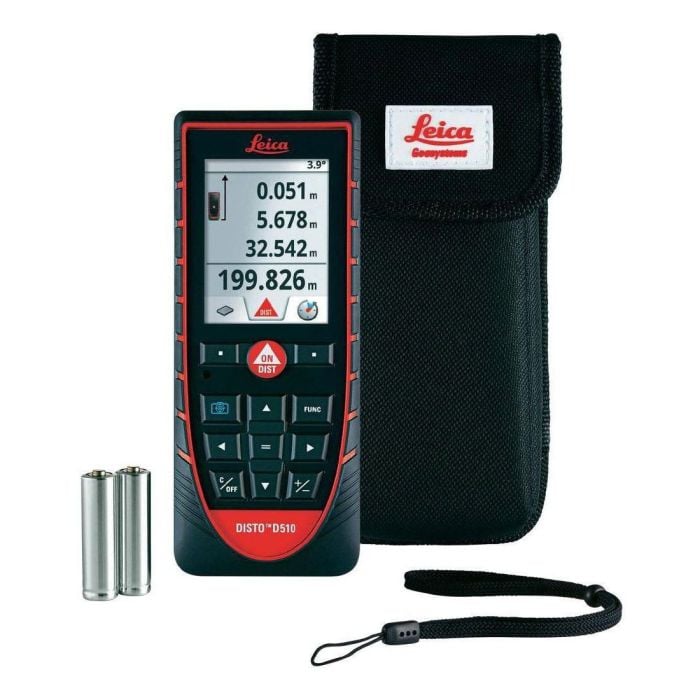

Leica DISTO D510 Bluetooth 200m Laser Distance Measurer Rangefinder

Leica DISTO D510 Bluetooth 200m Laser Distance Measurer Rangefinder

The Leica DISTO D510 stands for easy and effortless outdoor distance measurement. The unique combination of digital Pointfinder and 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth Smart and attractive free apps, you are prepared for the future.

FEATURES

• 360° TILT SENSOR - functions that need to know the angle of the DISTO when the shot is taken are enabled by a highly accurate 360° tilt sensor that determines the angle of the laser. These include Smart Horizontal and height tracking modes.
• 4x ZOOM POINTFINDER CAMERA - the on board digital camera features a 4x digital zoom "point finder" that shows you where the dot is even if you can't see it with the naked eye. Put the cross-hairs on the spot you are measuring to and hit the button. It's that simple.
• ADD & SUBTRACT - it's not always so simple as taking one shot to get the measurement you need. Sometimes its handy to add multiple shots together, or subtract a negative space from a measurement. As you use the add/subtract function, the final result is displayed in the main line, and the last measurement taken is shown above.
• AREA / VOLUME - in area mode, the DISTO determines the area of a rectangle or square in two shots. Volume mode adds a third vertical shot to calculate volume.
• BUILDING INFORMATION MODELLING (BIM) - Bluetooth DISTO's and the wifi 3D DISTO's are useful for Building Information Modelling (BIM).
• HEIGHT PROFILE TRACKING - measure slopes with multiple shots. Each shot is stored as a profile pair that references the step before it.
• HEIGHT TRACKING - "real time" height tracking for situations where you can hit a reflective target (like the ground) on the low end, but not at the top. Perfect for measuring the height of an overhead wire, for example.
• INTELLIGENT ENDPIECE - in the closed position the DISTO knows to measure from its base. Flip it open 90 degrees to align the base perfectly on an edge or corner.Flip it out all the way and you can put this baby in a corner to accurately measure diagonals. Otherwise, the width of the base would prevent you from getting all the way into the corner, rendering the measurement inaccurate.
• MEMORY STORES 30 DISPLAYS - store measurements and images with measurements associated with them.
• MIN / MAX FUNCTION - In Min/Max mode, you "sweep" the laser point into a corner. The longest measurement is recorded. Very useful for accurate diagonal room or window/door measurements.
• PAINTER FUNCTION - when the DISTO is in area or volume mode, you can use the add / subtract function to total up the area of several surfaces, or subtract an area, like a door for example, from a measurement.
• PERSONALISE FAVOURITES - with over 20 functions, chances are you are going to use one or two more than the rest. This Favourite function lets you bookmark your most-used functions on the tabs at the bottom of the touch screen.
• PYTHAGORAS FUNCTION - take indirect height and width measurements using the Pythagorean Theorem. The key is to make sure your second shot the "rectangular shot" is perpendicular to the point you are measuring, shown as the 90° angle in the images. The best way to ensure accuracy is to use a tripod and an adaptor.
• SINGLE MEASUREMENT 600FT RANGE - the big receiver lens and the module it is connected to see a laser dot outside at distances of over 600 ft, depending on conditions.
• SLOPED OBJECT MEASUREMENT - indirect distance measuring between two points. The reported measurements also include the horizontal distance between the two points, the vertical distance between the two points, and the angle between the points.
• SMART HORIZONTAL MODE - use smart horizontal mode to determine the level horizontal distance to a target when you have to shoot over an obstacle.
• STAKE OUT FUNCTION - the stake out function uses the continuous measurement mode to indicate where to place stakes along a stake-out line. Ideal for any situation where you need to place objects at a consistent interval.
• TIMER - set a timer to delay a measurement the same way you would with the shutter on a digital camera.
• TRAPEZIUM FUNCTION - the trapezium function is useful for determining the length and slope of a roof section, and the area it covers.
• TRIANGLE / ROOM - the simple area function is great when a room is a square or rectangle, but what if you have to determine the area of a room that has more than four corners? That is where the triangle function comes in. Divide the room into imaginary triangles, take three shots for each and then add them up. The DISTO will also tell you circumference and the angle of the triangle.

SPECIFICATION

• Typical Measuring Accuracy: ± 1 mm
• Typical Range: Up to 200 m
• Measuring Units: 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00", 0" 1/32
• Distance: 10, 50, 100 m
• Ø of the Laser Dot: 6, 30, 60 mm
• Measurements per Set of Batts: Up to 5000 (with Li-ion Batts)
• Battery Type: 2x AA 1.5v (Ships with Li-ion rechargeable)
• Tripod Thread: ¼”- 20
• Protection Class: IP65
• Dimensions: 143x58x29 mm
• Weight with Batts: 198 g
