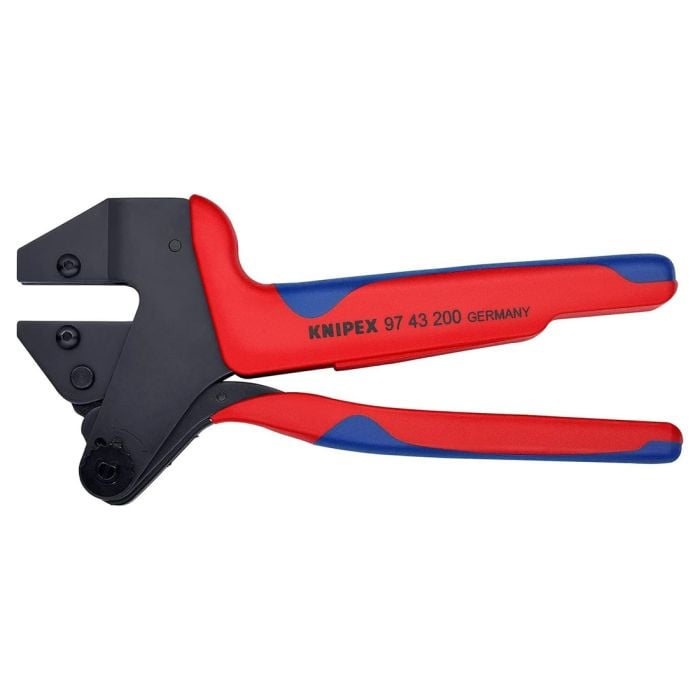

KNIPEX 97 43 200 A Crimp System Pliers With Multi-Component Grips Burnished 200 mm

KNIPEX 97 43 200 A Crimp System Pliers With Multi-Component Grips Burnished 200 mm

The pliers have almost parallel crimping die movement and ensure repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism). The crimping pressure has been precisely calibrated in the factory and is re-adjustable. Different locators enable precise positioning of the connectors. Due to the lever action, the pliers ensure optimum transmission of force, resulting in reduced fatigue during operation.

FEATURES

• Only one tool for almost 1000 crimping applications: usable with all crimping dies and locators 97 49
• Almost parallel crimping motion
• Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
• Crimping pressure has been set precisely (calibrated) in the factory and can be adjusted
• Force magnified by lever action to ensure fatigue-free working
• Ergonomically designed handles
• Different locators for precise positioning of the connectors
• Crimping dies for applications that go beyond the range offered are available on request
• Tool body: high-grade chrome vanadium electric steel, oil-hardened
• Approved crimping according to UL in conjunction with KNIPEX wire ferrules 97 99 330 - 399
• The crimping die can be easily exchanged using two screws
• In plastic case; foam insert with recesses for crimping dies and locators; with service tool (Allen key), screws and nuts

SPECIFICATION

• Length: 8"
• Width: 3 5/8"
• Height: 1"
