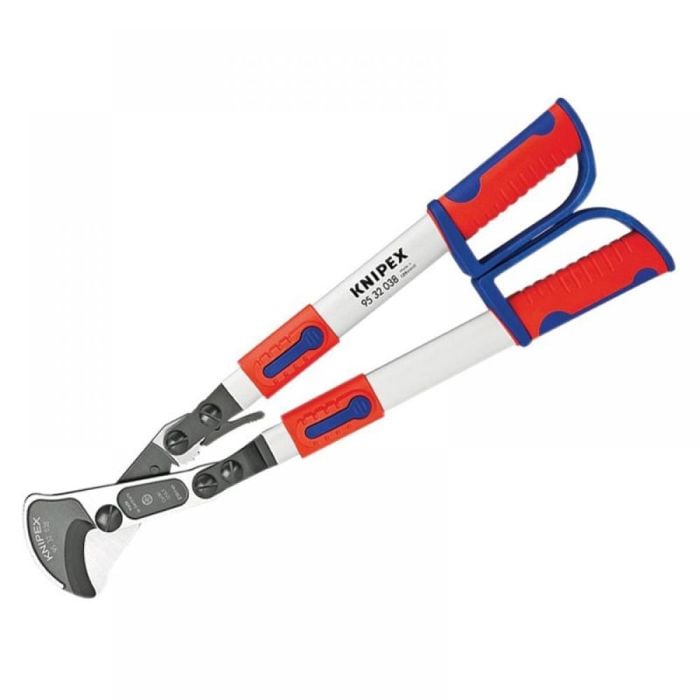

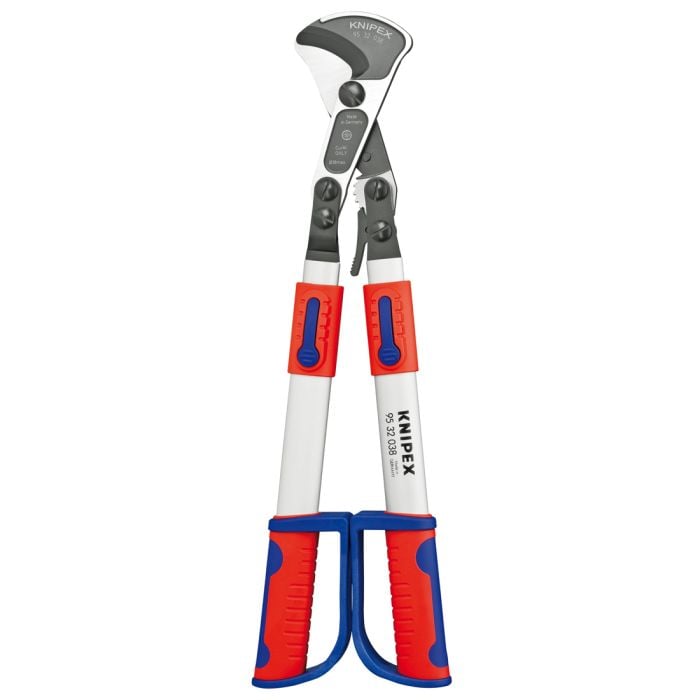

KNIPEX 95 32 038 Cable Shears With Multi-Component Grips 570 mm

KNIPEX 95 32 038 Cable Shears With Multi-Component Grips 570 mm

Knipex Cable Cutters with heavy-duty telescopic handles made of oval aluminium tubing. Extendable up to 770mm for maximum leverage on large cable diameters. Retractable down to 570mm for minimum space requirements during transport. The cutting head is made from special quality, high-grade tool steel, oil-hardened. Fitted with an adjustable bolted joint.

FEATURES

• Little handforce required due to very high transmission ratio
• Simple handling as a result of low weight and compact design - can be used even in confined areas
• For cutting copper and aluminium single conductors as well as multiple stranded cables,up to Ø 22 mm (380 mm²)
• Not suitable for steel wire, wire ropes and fine-stranded (highly flexible) conductors
• Precision-ground, hardened blades
• Clean and smooth cut without crushing and deformation
• One-hand operation using ratchet principle
• Two-stage ratchet drive for easy cutting
• Pinch guard prevents operators' fingers being pinched
• Fixed handle with support area for putting down the pliers when cutting
• Suitable for aluminium sector cable up to 4 x 150 mm²

SPECIFICATION

• Cutting capacity copper cable, multiple-stranded: 280 mm²
• Cutting capacity copper cable, multiple-stranded: Ø 38 mm
