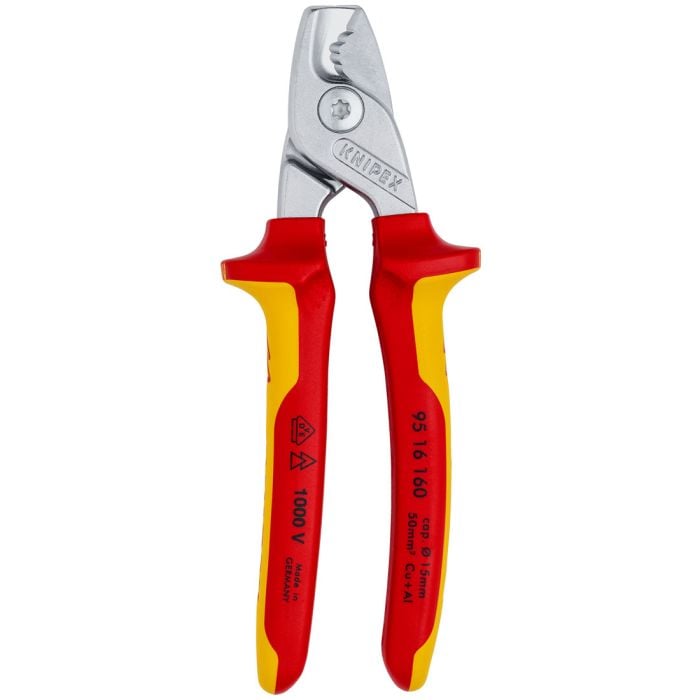

KNIPEX 95 16 160 Insulated VDE StepCut Cable Shears 160mm

KNIPEX 95 16 160 Insulated VDE StepCut Cable Shears 160mm

The KNIPEX Stepcut Cable Shears are specially designed with step cutting which separates and cuts wires one by one making cutting 40% easier than with standard cable shears of the same length and prevents crushing allowing for a more precise cut. The Stepcut Cable shears are also fitted with a pinch guard for safer work. The cutting edges of the Knipex Stepcut Cable Shears have been additionally induction-hardened for a more durable cutting edge.

FEATURES

• Small, light, strong: comfortable cutting without crushing and just 160 mm in size
• Noticeably less effort: the gradations cut wires one after the other; cutting is up to 40% easier than with standard cable shears of the same length!
• Ergonomic handle design: optimal cutting feel even for larger cable diameters
• Cuts multi-core stranded copper and aluminium cables up to Ø 15 mm (50 mm²)
• Cuts solid copper and aluminium cables up to 5 x 4 mm²
• Cuts without crushing
• Bolted joint: precise, effortless, durable
• Pinch guard fitted for safe work
• Not suitable for steel wire and hard drawn copper conductors
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 56 HRC
• High-grade special tool steel, forged, oil-hardened

SPECIFICATION

• Article Number: 95 16 160
• EAN: 4003773085966
• Shears: Chrome-plated
• Handles: Insulated with multi-component grips, VDE-tested
• Weight: 225 g
• Dimensions: 160 x 60 x 28 mm
• Standard: DIN EN 60900 IEC 60900
• REACH Compliant: Does not contain SVHC
• RoHS Compliant: Not applicable
• Cutting Capacity Copper Cable, Multiple-Stranded: 50 mm²
• Cutting Capacity Copper Cable, Multiple-Stranded: Ø 15 mm
• AWG: 1 / 0
• VDE Tested: Yes
