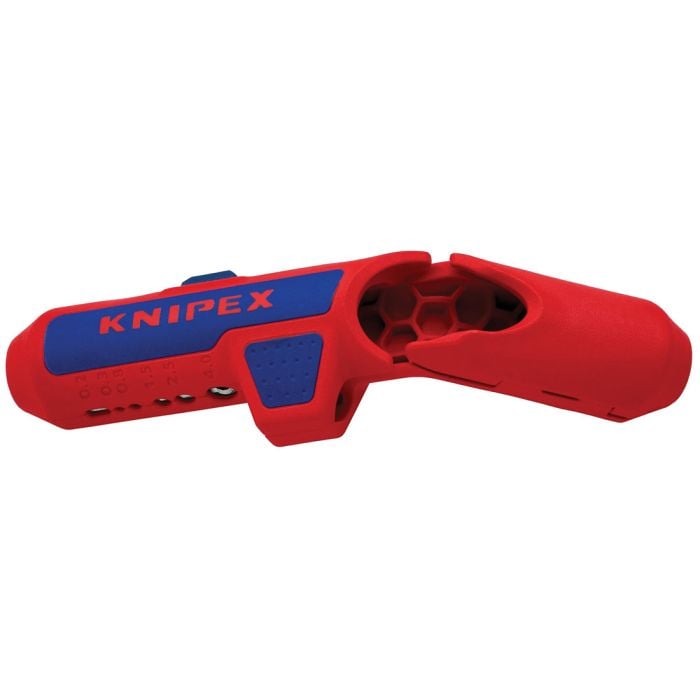

The functional versatility of the universal dismantling and wire stripping tool lies in its design. The two-shell pistol handle design has made it possible to integrate several functions – and the ErgoStrip also sits extremely well in the hand. The ends of the tool are tapered at the front, thereby permitting space-saving dismantling work in flush mounted sockets. Markings inside the tool permit accurately repeated stripping of single conductors and dismantling of coax cables. A simple twist movement when dismantling and stripping, or a straightforward slit in the case of long dismantling distances, and the desired result is achieved.
FEATURES
For fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables
Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
Conical, slimmed down tool ends for better access in confined areas
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Delivery Options
Showing only UK Mainland delivery options We are not currently able to ship to Republic of Ireland or European Union
Standard Delivery (2-3 Day)
£5.95 or FREE on orders over £50
United Kingdom
Next Day Delivery
£7.95 or £4.95 on orders over £50 or FREE on orders over £100
https://www.powertoolworld.co.uk/knipex-169503sb-ergostrip-wire-stripping-tool26105KNIPEX 16 95 03 SB ErgoStrip Right-Handed Photovoltaic Wire Stripping Toolhttps://www.powertoolworld.co.uk/media/catalog/product/k/n/kni16-95-03-sb.jpg46.2546.25GBPInStock/Brands/KNIPEX/Brands/KNIPEX/KNIPEX Wire Strippers3257329412243257<style>#html-body [data-pb-style=HDODQXB]{background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;align-self:stretch}#html-body [data-pb-style=IPC8C34]{display:flex;width:100%}#html-body [data-pb-style=X7W48N9]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;width:100%;align-self:stretch}</style><div class="pagebuilder-column-group" data-background-images="{}" data-content-type="column-group" data-appearance="default" data-grid-size="12" data-element="main" data-pb-style="HDODQXB"><div class="pagebuilder-column-line" data-content-type="column-line" data-element="main" data-pb-style="IPC8C34"><div class="pagebuilder-column" data-content-type="column" data-appearance="full-height" data-background-images="{}" data-element="main" data-pb-style="X7W48N9"><div data-content-type="text" data-appearance="default" data-element="main"><h2>KNIPEX 16 95 03 SB ErgoStrip Right-Handed Photovoltaic Wire Stripping Tool</h2>
<p>The functional versatility of the universal dismantling and wire stripping tool lies in its design. The two-shell pistol handle design has made it possible to integrate several functions – and the ErgoStrip also sits extremely well in the hand. The ends of the tool are tapered at the front, thereby permitting space-saving dismantling work in flush mounted sockets. Markings inside the tool permit accurately repeated stripping of single conductors and dismantling of coax cables. A simple twist movement when dismantling and stripping, or a straightforward slit in the case of long dismantling distances, and the desired result is achieved.</p>
<p><strong>FEATURES</strong></p>
<div>
<ul>
<li>
<p>For fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables</p>
</li>
<li>
<p>Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath</p>
</li>
<li>
<p>Conical, slimmed down tool ends for better access in confined areas</p>
</li>
<li>
<p>Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²</p>
</li>
<li>
<p>Simplified insertion of single wires for stripping using location ridges</p>
</li>
<li>
<p>With opening spring and locking device</p>
</li>
<li>
<p>Easy insertion of coax and data cable thanks to opening aid</p>
</li>
<li>
<p>Multi-component design with a soft plastic zone for comfortable use and a secure grip</p>
</li>
</ul>
<p><strong>SPECIFICATION</strong></p>
<ul>
<li>
<p>Weight: 75 g</p>
</li>
<li>
<p>Dimensions: 135 x 85 x 37 mm</p>
</li>
<li>
<p>REACH Compliant: contains SVHC</p>
</li>
<li>
<p>RoHS Compliant: not applicable</p>
</li>
<li>
<p>Stripping Capacities Round Cable (diameter): Ø 8 - 13 mm</p>
</li>
<li>
<p>Stripping Capacity Conductors & Strands: 0.2 - 4.0 mm²</p>
</li>
<li>
<p>Stripping Capacities For Coax Cable (diameter): Ø 4 - 7 mm</p>
</li>
<li>
<p>Stripping Capacity Data Cable: CAT 5 - 7, Twisted Pair (UTP/STP)</p>
</li>
<li>
<p>Stripping capacities: Ø 8.0 — 13.0 mm</p>
</li>
</ul>
</div></div></div></div></div>KNIPEXGBP004003773092605add-to-cartebay_category:632manufacturer:KNIPEXtool_type:Wire Stripperwhats_in_the_box:<ul>
<li>1x ErgoStrip Right-Handed Photovoltaic Wire Stripping Tool</li>
</ul>price_excl_tax:38.54amasty_stock_status_message:In stockamasty_stock_status_icon:available38.54In stockavailable
