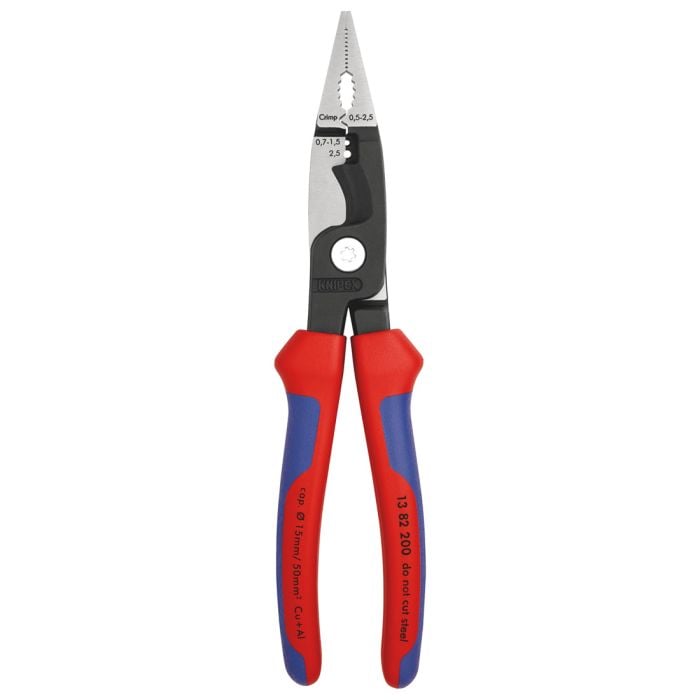

KNIPEX 13 82 200 Multifunctional Pliers For Insulation 200mm

KNIPEX 13 82 200 Multifunctional Pliers For Insulation 200mm

The KNIPEX 13 82 200 pliers are a compact and multifunctional tool with six functions combined in one tool. Cuts cable up to Ø 15 mm, with wire stripping capacities for single conductors: 0.75 – 1.5 mm² and 2.5 mm², plus crimp die for end sleeves (ferrules) 0.5 – 2.5 mm². The pliers have a low weight of 280g and are forged from high grade special tool steel, oil hardened in multiple stages.

• 6 Functions in one pair of pliers
• Multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
• Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
• Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
• Crimping die for wire ferrules 0.5 - 2.5 mm²
• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim dimensions for easy access
• Bolted joint: precise, zero backlash operation of pliers

SPECIFICATION

• Article Number: 13 82 200
• Pliers: Black atramentized
• Head: Polished
• Handles: With multi-component grips
• Weight: 280 g
• Dimensions: 200 x 85 x 20 mm
• REACH Compliant: Does not contain SVHC
• RoHS Compliant: Not applicable
• Stripping Capacity For Cross-Sections: 0.75 - 1.5 mm² / 2.5 mm²
• Capacity In Square Millimetres: 0.5 - 2.5 mm²
• AWG: 1 / 0
