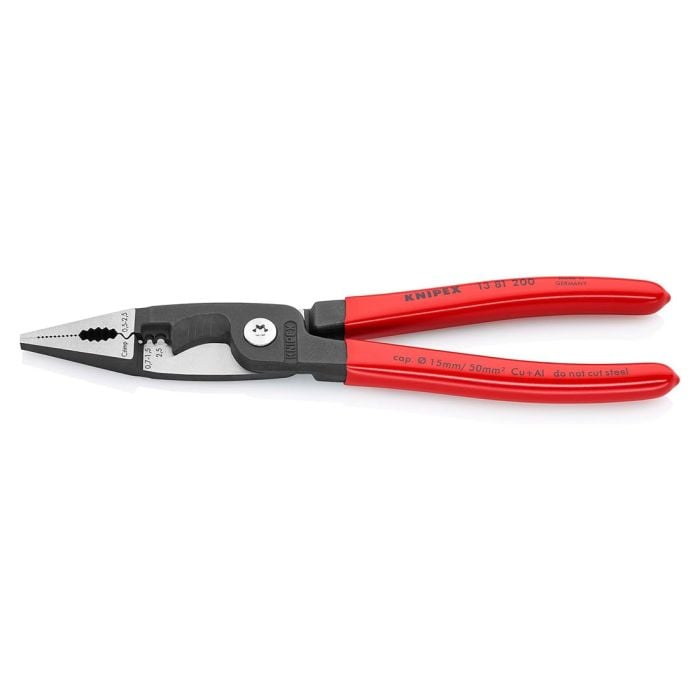

KNIPEX 13 81 200 Pliers For Electrical Installation Plastic Coated 200 mm

KNIPEX 13 81 200 Pliers For Electrical Installation Plastic Coated 200 mm

The Knipex pliers use for electrical installation comes in 6 functions in one pair of pliers. Multifunctional pliers use for the electrical installation is use to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules.

FEATURES

• Stripping without re-adjustment from 0.03 to 10.0 mm²
• Universal blade geometry -robust and more durable
• Ideal grip design with excellent haptics
• Recessed wire cutter
• Fully automatic adjustment to all single-, multi- and fine-stranded conductors with standard insulation throughout the entire capacity range from 0.03 to 10.0 mm²
• No manual fine adjustment necessary
• No damage to the conductors
• The clamping jaws made of steel hold the cable in a way that prevents slipping without damaging the remaining insulation
• With recessed wire cutter for Cu and Al conductors, stranded up to 10 mm² and single wire up to 6 mm²
• Particularly smooth-running mechanics and very low weight
• Replaceable blades block and length stop
• Handle with soft-plastic zone for a steady grip

SPECIFICATION

• Stripping holes for conductors of 0.75mm² - 1.5mm² and 2.5mm²
• Crimping die for wire ferrules: 0.5mm² - 2.5mm²
• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2mm² / Ø 15mm
• Dimensions: 200mm x 85mm x 20mm
• Cuts cable up to Ø 15mm
• Wire stripping capacities for single conductors: 0.75mm² – 1.5mm² and 2.5mm²
• Crimp die for end sleeves (ferrules) 0.5mm² – 2.5mm²
