KNIPEX 00 19 58 V02 Snap Ring Pliers Set In Tool Roll x8 Pcs
SKU: KNI00-19-58-V02 | EAN: 4003773081579
£168.95
inc VAT
£140.79
ex VAT
inc VAT
ex VAT
Overview

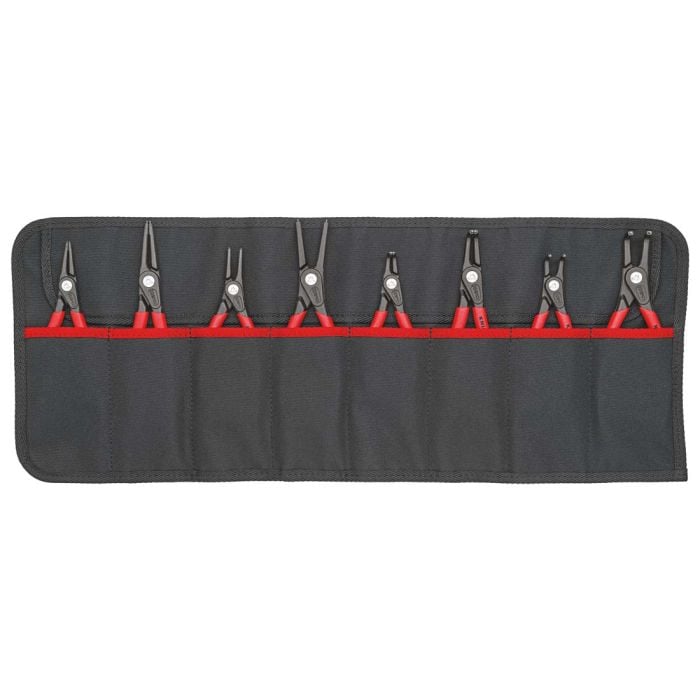

KNIPEX 00 19 58 V02 Snap Ring Pliers Set In Tool Roll x8 Pcs
The KNIPEX Precision Snap Ring Pliers Set are specialized tools designed for precise and delicate work with snap rings or circlips. The set has both internal and external snap ring pliers, providing versatility for different tasks. These pliers feature slender, finely pointed tips that allow for precise engagement with snap rings in tight spaces.
This set includes a tool roll with two (2) of each Internal Snap Ring Pliers and External Snap Ring Pliers and two (2) of each Internal Angled Snap Ring Pliers and External Angled Snap Ring Pliers.
FEATURES
Circlips are held securely, large contact faces and the position of the tips make it difficult for the circlip to fly off
Inserted straight and 90˚ angled tips for reliable work
Bolted joint: precise, zero-backlash operation of pliers
Heavy-duty continuous operation: up to 10 times longer service life than turned tips
Inserted tips: spring steel wire, drawn
48 11 J1 (5 1/2"), 48 11 J2 (7 1/4"), 48 21 J11 (5"-90° Angled) and 48 21 J21 (6"-90° Angled) - Internal Precision Snap Ring Pliers
Precision internal circlip pliers for installing or removing circlips in bore holes
For fitting snap rings into bores, ranging from 15/32" - 2 23/64"
For fitting snap rings on shafts, ranging from 25/64" - 2 23/64"
Precision external circlip pliers for installing or removing circlips on shafts
49 11 A1 (5 1/2"), 49 11 A2 (7 1/4"), 49 21 A11 (5 1/4"-90° Angled) and 49 21 A21 (6 3/4"-90° Angled) - External Precision Snap Ring Pliers
Sewn pocket for each tool so tools remain secure and adjustable snap closure
Eight pocket tool roll up pouch constructed of hard-wearing polyester fabric offers a convenient way to store tools when not in use
SPECIFICATION
Part Number: 00 19 58 V02
UPC: 843221023324
Country Of Origin: Germany
Width: 4 5/8"
Height: 3 3/8"
Weight: 3.042 lbs
1000 Volt Insulated: No
Material Type: Chrome Vanadium Electric Steel, Forged, Oil-Hardened
Other Material Type: Inserted Tips: Spring Steel Wire, Drawn
Handle Type: Non-Slip Plastic
Surface Finish: Grey Atramentized
Joint Type: Bolted
Tip Width: 3/64" (48 11 J1, 48 21 J11, 49 11 A1 And 49 21 A11); 5/64" (48 11 J2, 48 21 J21, 49 11 A2 And 49 21 A21)
Angled Head: 90 Degree (48 21 J11, 48 21 J21, 49 21 A11 And 49 21 A21)
Color: Red
Circlip - Internal Bore Size: 15/32" To 2 23/64" (48 11 J1, 48 11 J2, 48 21 J11 And 48 21 J21)
Circlip - External Shaft Size: 25/64" To 2 23/64" (49 11 A1, 49 11 A2, 49 21 A11 And 49 21 A21)
DIN: DIN 5256 C (48 11 J1 And 48 11 J2); DIN 5256 D (48 21 J11 And 48 21 J21); DIN 5254 A (49 11 A1 And 49 21 A11); DIN 5254 B (49 21 A11 And 49 21 A21)
Reach: Does Not Contain SVHC
RoHS: Not Applicable
What's in the box
1x 48 11 J1 Precision Circlip Pliers, For Internal Circlips In Bore Holes (Straight Tips / Ø 12 - 25 mm)
1x 48 11 J2 Precision Circlip Pliers, For Internal Circlips In Bore Holes (Straight Tips / Ø 19 - 60 mm)
1x 48 21 J11 Precision Circlip Pliers, For Internal Circlips In Bore Holes (Bent Tips / Ø 12 - 25 mm)
1x 48 21 J21 Precision Circlip Pliers, For Internal Circlips In Bore Holes (Bent Tips / Ø 19 - 60 mm)
1x 49 11 A1 Precision Circlip Pliers, For External Circlips On Shafts (Straight Tips / Ø 10 - 25 mm)
1x 49 11 A2 Precision Circlip Pliers, For External Circlips On Shafts (Straight Tips / Ø 19 - 60 mm)
1x 49 21 A11 Precision Circlip Pliers, For External Circlips On Shafts (Bent Tips / Ø 10 - 25 mm)
1x 49 21 A21 Precision Circlip Pliers, For External Circlips On Shafts (Bent Tips / Ø 19 - 60 mm)
1x Roll Up Carry Case
Notes From PTW Expert
This set includes a tool roll with two (2) of each Internal Snap Ring Pliers and External Snap Ring Pliers and two (2) of each Internal Angled Snap Ring Pliers and External Angled Snap Ring Pliers
