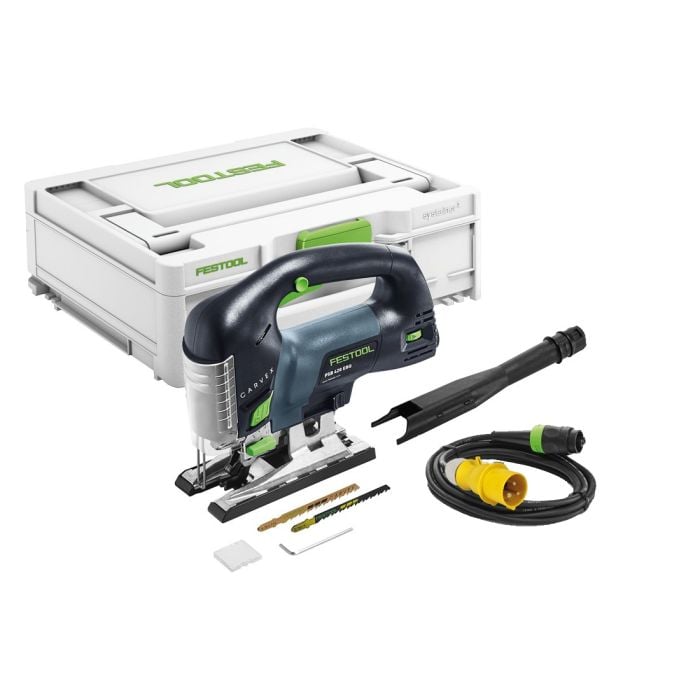

Festool 576188 CARVEX Pendulum Jigsaw PSB 420 EBQ-Plus GB 110v

Festool 576188 CARVEX Pendulum Jigsaw PSB 420 EBQ-Plus GB 110v

Lightweight. Handy. Unbeatable profile-cutting capacity

Ergonomic, lightweight and handy – work quickly and comfortably in any position with the CARVEX. The machine operates at 3800 strokes per minute for inimitably powerful cutting strokes and unbeatable profile-cutting capacity. It is common knowledge that power only becomes a valuable resource when it is combined with exceptional precision. That is exactly the approach we have been taking with a redesigned hammer guide for an unprecedented degree of accuracy. The parallel adjustable guidance jaws keep the saw blade on track and guarantee maximum precision. It has all the typical characteristics of a CARVEX, but the first time you use a machine from the new CARVEX 420 generation, you will undoubtedly feel the difference.

HIGHLIGHTS

• Achieve ideal results more quickly: With strong traction and triple saw blade guide for excellent curve handling and strobe light for strict adherence to pre-drawn scribe marks
• Convenient and safe: SoftGrip prevents slipping and the splinter guard minimises laborious reworking
• Systems get it done: Always the right saw, with angle table, core maker, guide rail and various base runners

APPLICATIONS

• Cut-outs for sinks and kitchen hobs
• Trimming work on furniture, kitchens, for interior fitting
• Cutting circles and curves
• Coping end strips
• Cutting workpieces to length
• Edge notching on beams
• Cutting from below

FEATURES

• Excellent behaviour in curves thanks to threefold saw blade guide and rigid lifter rod
• Fast, tool-free changing of tables, baseplates and saw blades
• Simple handling thanks to the softgrip and ergonomic design
• Electronic switch-on/off on both sides, reachable in every grip position
• Easily visible scribe mark through stroboscope light and powerful extraction
• Powerful cutting stroke for rapid working progress
• Low weight to save energy: 1.9 kg

SPECIFICATION

• Stroke Rate: 1,000 - 3,800 min⁻¹
• Power Consumption: 400 W
• Weight: 1.90 kg
• Pendulum Cover Adjustment in Stages: 4.00
• Cutting Depth in Wood: 120.00 mm
• Cutting Depth in NF Metals: 20.00 mm
• Cutting Depth in Steel (Soft): 10.00 mm

NOISE & VIBRATION

• Sawing Chipboard:
• A-Weighted Sound Pressure Level, LpA: 86.00 dB(A)
• A-Weighted Sound Power Level, LWA: 97.00 dB(A)
• Uncertainty (Noise) K: 5.00 dB
• Total Vibration Average, Ah: 8.50 m/s²
• Uncertainty (Vibration) K: 1.50 m/s²
