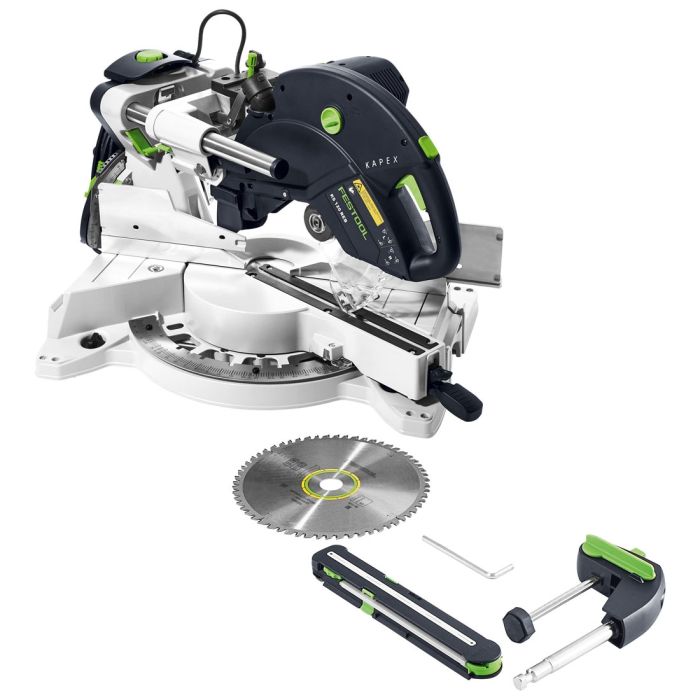

Festool 575305 KAPEX Sliding Compound Mitre Saw KS 120 REB GB 110V

Festool 575305 KAPEX Sliding Compound Mitre Saw KS 120 REB GB 110V

Quality down to the finest detail

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

HIGHLIGHTS

• Achieve ideal results more quickly: Perfect seating from the very first cut thanks to exact marking of the cutting width via dual-line lasers and precision adjustment for angled cuts accurate to the millimetre
• Convenient and safe: Does not take up much space and never gets in the way, thanks to its compact design with no protruding guide rods
• Innovative down to the finest detail: No need to change saw blades and no set-up time thanks to the extra mitre position for expanding from a cutting depth of 88 mm to up to a maximum cutting depth of 120 mm

APPLICATIONS

• Trimming skirting boards and cornices up to 120 mm in height – no calculations
• Cutting boards and panels up to 305 x 88 mm
• Trimming crown mouldings up to 168 mm in their original wall position
• Trimming square timber and beams up to 88 mm thick

FEATURES

• Twin-column guide with two bearings for unique precision
• Dual-line laser for an accurate indication of the cutting line
• Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
• Special cutting position for cutting depths up to 120 mm
• FastFix saw blade changing for adaptation to the working material
• Twin-column guide for accurate cuts
• Precision angle transfer via bevel and dual-line laser
• Compact, lightweight design for convenient transportation
• Safety brake

SPECIFICATION

• Idle Engine Speed: 1,400 - 3,400 min⁻¹
• Power Consumption: 1,600 W
• Weight: 23.10 kg
• Saw Blade Diameter: 260.00 mm
• Cutting Depth at 45°/90°: 215 x 88 mm
• Cutting Depth 90°/90°: 305 x 88 mm
• Cutting Depth 45°/45° (Right): 215 x 35 mm
• Crown Moulding Diagonal Cut 45°/90°: 168.00 mm
• Inclination Angle: 47/47 °
• Dimensions (W x D x H): 713 x 500 x 470 mm
• Cutting Depth 50°/90° (Left): 196 x 88 mm
• Cutting Depth 60°/90° (Right): 152 x 88 mm
• Cutting Depth 45°/45° (Left): 215 x 55 mm
• Mitre Angle: 50/60 °
• Special Cutting Depth 90°/90°: 60 x 120 mm
• Special Cutting Depth 45°/90° (Left): 40 x 120 mm
• Special Cutting Depth 45°/90° (Right): 20 x 120 mm
• Crown Moulding Diagonal Cut at 90°/90°: 168.00 mm
• Work Height: 900.00 mm
• Dust Extraction Connection Dia.: 27/36 mm

NOISE & VIBRATION

• A-Weighted Sound Pressure Level, LpA: 88.00 dB(A)
• A-Weighted Sound Power Level, LWA: 101.00 dB(A)
• Uncertainty (Noise) K: 3.00 dB
• Total Vibration Average, Ah: 2.50 m/s²
• Uncertainty (Vibration) K: 1.50 m/s²
