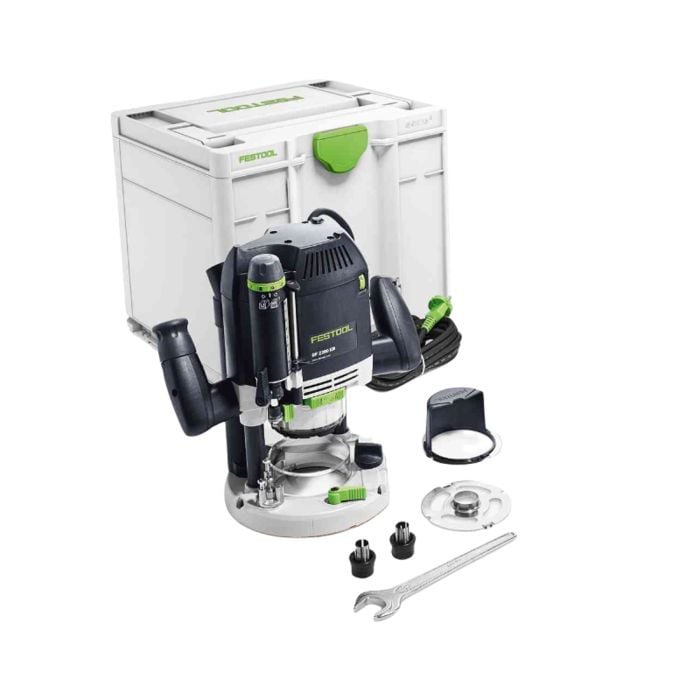

Festool 1/2" Router OF 2200 EB-Plus GB

Festool 1/2" Router OF 2200 EB-Plus GB

The power pack with enormous torque

More powerful, easier to use, increased comfort and safer – the OF 2200 offers the greatest low-end torque, the highest precision and the greatest ergonomic comfort. No matter what your task is – with the OF 2200, you have the solution in your hands.

HIGHLIGHTS

• Achieve ideal results more quickly: 2200 watts for top power development and powerful low-speed torque for hard materials and large material thicknesses
• Convenient and safe: Simple guidance thanks to ergonomic handle and guide rods that can be moved by 30°. The integrated quick-acting brake minimises the risk of injury
• Systems get it done: Can be expanded in a number of ways with a router system or template system. A cleaner, healthier working environment with Festool mobile dust extractors

APPLICATIONS

• Rabbeting, grooving and profiling
• Routing large cutouts, circles and arcs with the MFS routing template
• Creating worktop corner joints with the worktop template
• Routing seals and espagnolettes in windows and doors
• Stationary routing of up to Ø 60 mm with the TF 2200 table router

FEATURES

• Top power development and fully variable speed for hard materials and increased material thicknesses
• Outstanding ergonomics: guide rods offset by 30 degrees to transfer force efficiently
• Tool-free copying ring and base-runner change
• Fast, convenient router-bit change with rocker and ratchet principle
• Detachable base plate for fast profile cutter adjustment
• Dual guide column clamp for extra torsional rigidity and greater precision
• Simple and exact routing depth setting to 1/10 mm
• Dust extraction of up to 99% during edge routing through adjustable extraction ring and chip catcher

SPECIFICATION

• Collet Diameter: 6 - 12.7 mm
• Routing Stroke: 80.00 mm
• Routing Depth Fine Adjustment Range: 20.00 mm
• Bench Opening: 89.00 mm
• Idle Engine Speed: 10,000 - 22,000 min⁻¹
• Power Consumption: 2200 W
• Weight: 7.80 kg
• Dust Extraction Connection Diameter: 36/27 mm

NOISE & VIBRATION

• A-Weighted Sound Power Level, LWA: 98.00 dB(A)
• A-Weighted Sound Pressure Level, LpA: 87.00 dB(A)
• Uncertainty (Noise) K: 3.00 dB
• Total Vibration Average, Ah: 2.50 m/s²
• Uncertainty (Vibration) K: 1.50 m/s²
