Fein KBM 50 U Magnetic Core Drill 1200W In Carry Case 110v 72704061241
Fein KBM 50 U Magnetic Core Drill 1200W In Carry Case 110v 72704061241

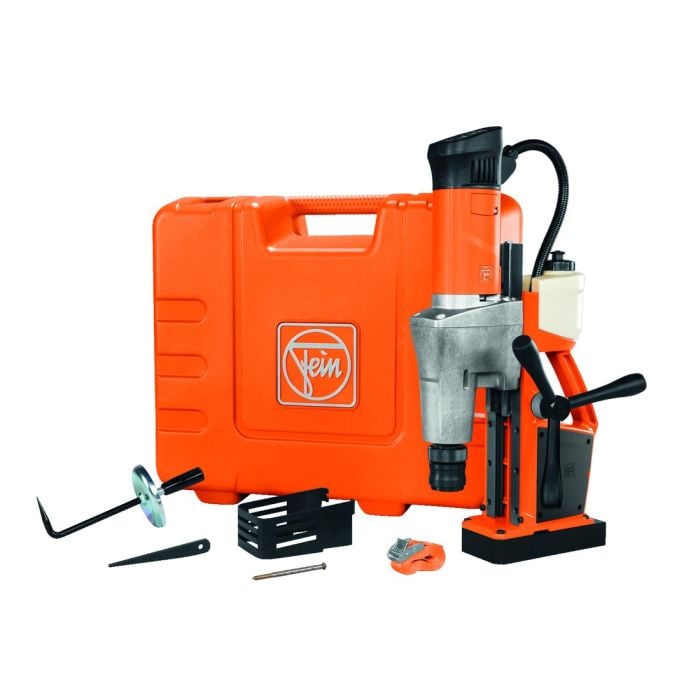

what's in the box
- 1x KBM 50 U Magnetic Core Drill 1200W 110v
- 1x Coolant Tank
- 1x Lashing Strap
- 1x Swarf Hook
- 1x Centering Pin
- 1x Contact Guard
- 1x Drift Key
- 1x Plastic Carry Case
Notes From PTW Expert
This is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming
Overview
Fein KBM 50 U Magnetic Core Drill 1200W 110v 72704061241
The Fein KBM 50 U Magnetic Core Drill has an extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades. With clockwise/anti-clockwise operation, electronic speed setting and a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming. Feed handwheel can be moved from one side to the other.
FEATURES
- Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades
- Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1,200 W high-power motor with tacho electronics for high speed stability for reliable and economical working
- With clockwise/anti-clockwise operation, electronic speed setting and a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming
- MT3 tool mounting
- Simple operating concept avoids mix-ups and can be clearly seen by the user
- Convenient magnetic holding force display
- High magnetic holding force
- Integrated coolant tank
- Feed handwheel can be moved from one side to the other
- Speed saving "memory function"
- Personal safety switch
SPECIFICATION
- Voltage: 110v
-
Input: 1,200 W
-
Output: 610 W
-
No Load Speed 1: 130 - 260 rpm
- No Load Speed 2: 260 - 520 rpm
- Tool Holder: MK 3
- Carbide Core Drill Bit Max. Ø: 50 mm
- HSS Core Drill Max. Ø: 40 mm
- Core Drill, Drilling Depth Max.: 50(75)* mm
- Twist drill max. Ø: 23 mm
- Tapping: M 16
- Countersinking Max. Ø: 50 mm
- Reaming Max. Ø: 23 mm
- Core Drill Holder: 3/4" Weldon
- Stroke: 145 mm
- Total Stroke Range: 315 mm
- Magnetic Holding Power: 12,500 N
- Magnetic Foot Dimensions: 195 x 90 mm
- Cable With Plug: 4 m
- Weight According To EPTA: 14.00 kg
