The KBC 36 MAGFORCE is an extremely small and light single-speed compact magnetic core drill with minimum dimensions for use in tight spaces in the workshop and on the construction site. Features a very powerful and maintenance-free brushless 1200 W high-power motor with high speed stability for continuously fast work progress as well as forward / reverse running and electronic speed setting for all drilling applications, such as core drilling, twist drilling and tapping and countersinking.
FEATURES
Extremely small and light for working in tight and difficult-to-reach spots – including vertically and overhead – thanks to height of 169 mm, a length of 290 mm and a weight of 8.5 kg
Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades
High gearbox positioning for optimum view of the drilling point
Large installation space under the drill spindle with a stroke range of 46 mm
Space-saving operation on both sides with ratchet
Combined drive shaft, 1/2" square and 8 mm hexagon socket
Intuitive operating concept avoids mix-ups and can be clearly seen by the user
Convenient magnetic holding force display
Tilt sensor stops the drill motor when the tool slips or tilts
Integrated handle
Speed saving memory function
Personal safety switch
Slot for 5 mm hexagon socket wrench on the tool itself
SPECIFICATION
Voltage: 240v
Input: 1,200 W
Output: 680 W
Speed, Full Load: 130 - 610 rpm
Speed, No Load: 130 - 660 rpm
Carbide Core Drill Bit Max. Ø: 36 mm
HSS Core Drill Max. Ø: 36 mm
Core Drill, Drilling Depth Max.: 35 mm
Core Drill Holder: 3/4" Weldon
Stroke: 46 mm
Magnetic Holding Power: 10,000 N
Magnetic Foot Dimensions: 175 x 80 mm
Cable With Plug: 3 m
Weight According To EPTA: 8.50 kg

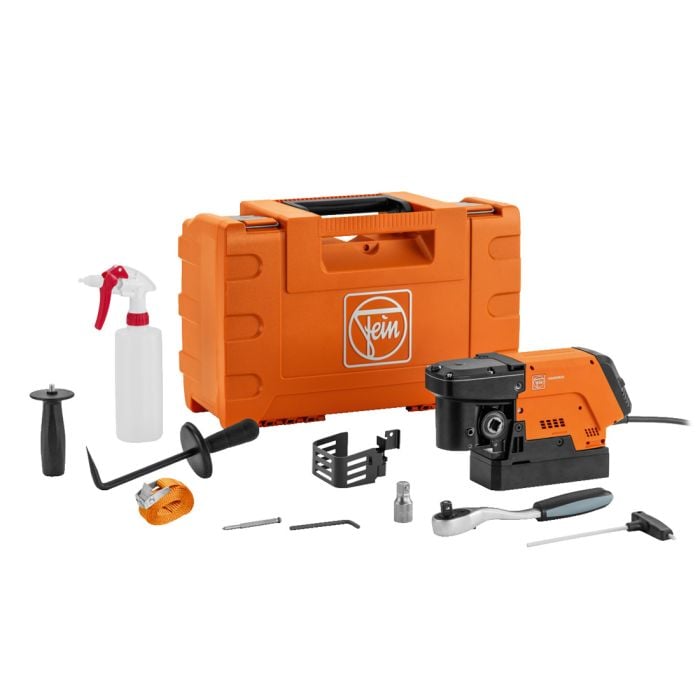

What's in the box
1x KBC 36 Mag Core Drill 240v
1x 1/2" Ratchet
1x 1/2" Socket Wrench Extension
1x Coolant Pump
1x Lashing Strap
1x Swarf Hook
1x 82 mm Centring Pin
1x Contact Guard
1x Additional Handle
1x 5 mm Hexagon Socket Wrench
1x 5 mm Hexagon Socket Wrench With T-handle
1x Case
Notes From PTW Expert
Extremely small and light for working in tight and difficult-to-reach spots – including vertically and overhead – thanks to height of 169 mm, a length of 290 mm and a weight of 8.5 kg
