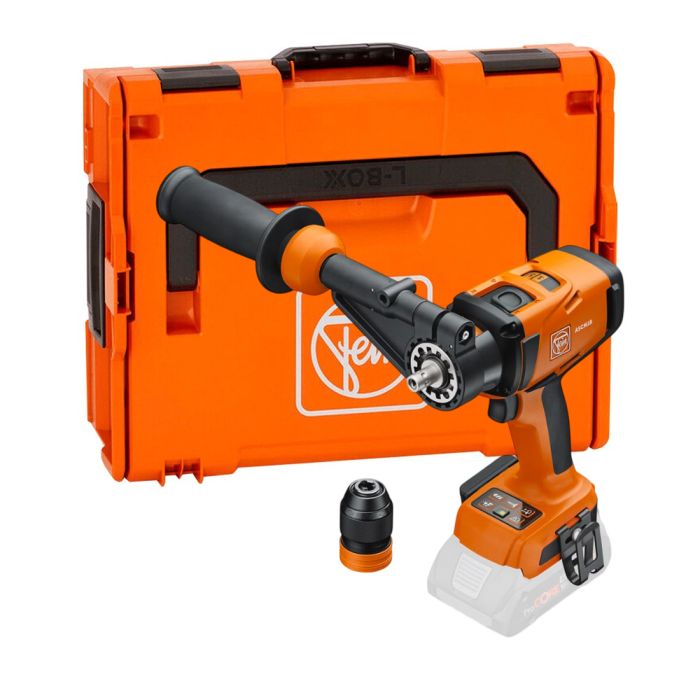

Fein ASCM 18 QMP 18v AMPShare Cordless Brushless 4-Speed Hammer Drill Body Only In Carry Case

Fein ASCM 18 QMP 18v AMPShare Cordless Brushless 4-Speed Hammer Drill Body Only In Carry Case 71161661000

The Fein ASCM 18 QMP features a 4-speed solid metal gearbox. With speeds of up to 4000 rpm for optimum cutting speeds in metal for any holes between 1.5 and 80 mm. Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs.

Supplied body only - batteries and chargers available separately.

FEATURES

• 4-speed solid metal gearbox. With speeds of up to 4000rpm for optimum cutting speeds in metal for any holes between 1.5 and 80mm
• Enjoy the greatest versatility with the FEIN QuickIN system for multi-functional use on all drilling, core drilling, tapping, countersinking and screwdriving jobs
• Very safe working. Kickback monitoring stops the tool
• The QuickIN headers can be changed in a matter of seconds and without the need for tools when users switch between applications in metal and timber and have just one tool
• Switchable striking mechanism for drilling in stone and masonry up to 13mm
• Extendible extra handle for more control
• The brushless, powerful FEIN PowerDrive motor is up to 30% more efficient and makes a longer service life possible
• High torques up to a maximum of 130Nm
• QuickIN solid metal drill chuck (120Nm) with carbide-tipped clamping jaws and high clamping forces
• Electronic torque setting (15+1)
• Intuitive operating panel with LED which can be dimmed for perfectly illuminating the workplace to suit the material
• Bit and belt holder on the side for ergonomic and flexible handling
• Fixes 10 x 400mm screws without pre-drilling
• AMPShare interface makes 1400 screw connections (5 x 40mm in timber) possible per battery charge (ProCORE 4Ah)
• Extensive user protection features include restart protection, electronic overload protection and brake
• The innovative adjustment function enables screw connections to be made in timber at a reduced speed for perfect results
• Compatible with Bosch Professional 18V batteries (available since 2008) and AMPShare batteries
• Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge

SPECIFICATION

• Battery Voltage: 18v
• Battery Compatibility: Li-ion / Procore Li-ion
• Battery Interface: 18v Ampshare
• Motor: Brushless
• Gearbox: 4-speed
• Accessory Interface: Quickin Max
• Speed, No Load: 430 / 850 / 2,000 / 4,000rpm
• Impacts: 6,450 / 12,750 / 30,000 / 60,000rpm
• Max. Torque (Hard/soft): 130 (70 / 50)nm
• Torque Levels: 15 + 1
• Drill Chuck Clamping Width: 1.5 - 13mm
• Fastening: 10 x 400mm
• Drill Ø Steel Twist Drill: 13mm
• Drilling Diameter in Steel, Core Drill Bit: 30mm
• Drilling Diameter in Steel, Hole Saws: 80mm
• Capacity In Wood Ø: 60mm
• Capacity In Stone Ø: 13mm
• Tapping: M14
