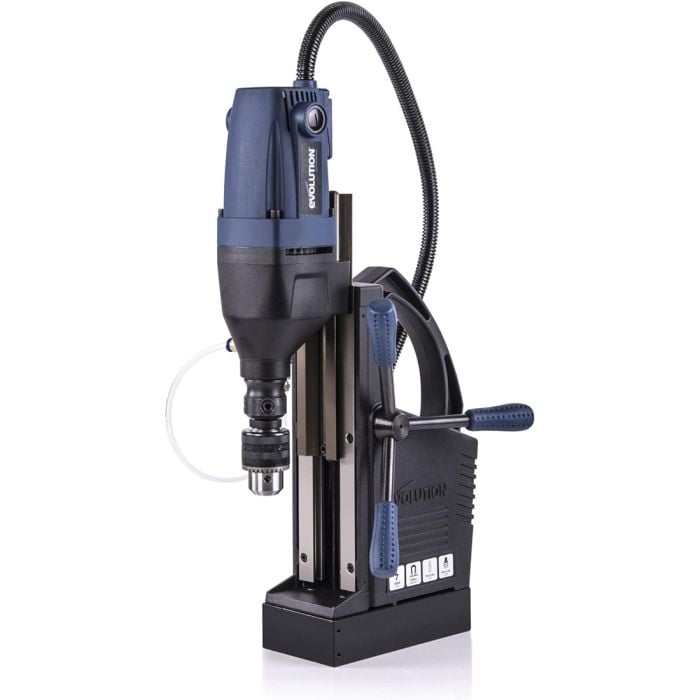

Evolution’s S28 Portable Magnetic Drill is the perfect tool for tackling power-hungry metal fabrication cutting tasks on the job site and in the workshop. When you have to drill holes through sheet steel, heavy plate or I-beam and the only option is to bring the tool to the job then the S28MAG is the right tool every time.
Compact and easy to carry, the 450rpm, 1200 Watt motor inside the S28 provides enough power to make light work of any drilling task. 1200kg of magnetic clamping force secures the S28MAG in any position, on any job. With a small footprint, ambidextrous plunge handles and its own coolant source the S28 Magnetic Drill is ready to go straight out of the box.
FEATURES
Simple to use coolant system ensures that the workpiece stays cool while drilling.
Textured, Tri-spoke spindle handle gives you ultimate control when lowering the drill.
Ultra-smooth dovetail slides offer smooth and precise operation.
2 stage magnet allows you to precisely configure the machine so you get a perfect result.
Compatible with a range of Evolution premium annular cutters and accessories.
Supplied in a robust carry case.
SPECIFICATION
Motor (240V 50Hz): 1200W
Motor (110V 50Hz): 1200W
Speed No Load: 480 min-1
Number of Speeds: 1
Insulation Class: 1
Cable Length: 2.5m
Magnetic Adhesion: 1300kg f
Maximum Annular Cutting Capacity: 28mm
Maximum Cutting Depth: 50mm
Cutter Shank: 19mm
Standard Twist Drill Capacity: 13mm
Minimum Plate Thickness: 10mm
Magnet Dimension: 40 x 90 x 180mm
Maximum Machine Height: 650mm
Minimum Machine Height: 420mm
Machine Width: 200mm
Product Weight: 12kg
Product Dimensions: 275 x 132 x 338mm
Blow Moulded Carry Case Dimensions: 570 x 200 x 450mm
Packaging Dimensions: 570 x 470 x 210mm
Product Weight: 12 kg
Packaged Weight: 17 kg
Sound Pressure Level LPA: 91dB(A) K:3dB(A)
Sound Power Level LWA: 102dB(A) K=3 dB(A)
Hand Arm Vibration: 2.41m/s2 K= 1.5m/s2
What's in the box
1x S28MAG 28mm Magnetic Drill
1x Coolant System
1x Safety Guard
1x Safety Strap
3x Feed Handle
2x Hex Key
1x Chuck With Chuck Key
1x Carry Case
Notes From PTW Expert
Simple to use coolant system ensures that the workpiece stays cool while drilling.
