Evolution Rage 4 185mm Multi Material Cut Off Saw With TCT Blade

SKU: EVO081-0006-P | EAN: 0849713019998
As low as: £114.00

Last few left

Overview

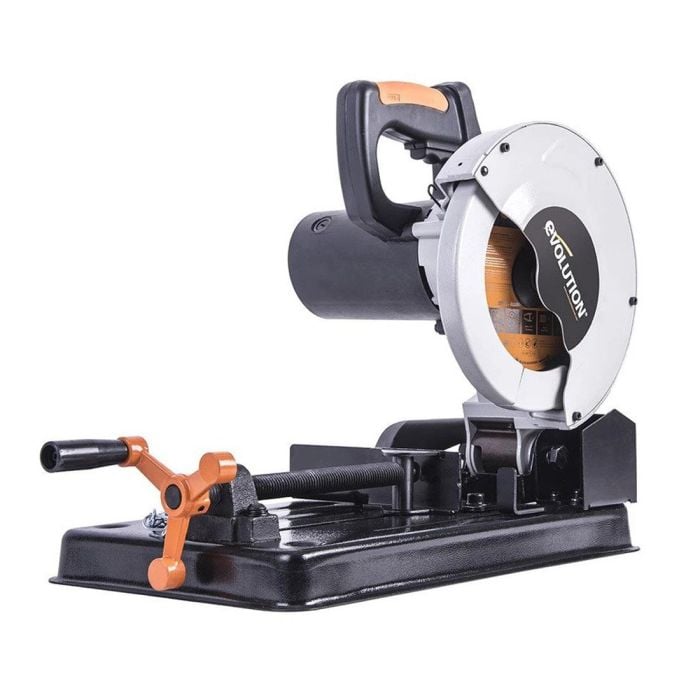

Evolution Rage 4 185mm Multi Material Cut Off Saw 110v or 240v With TCT Blade

The Evolution RAGE 4 is a 185mm chop saw designed for electricians and plumbers. It produces fast, ultra-clean cuts through armoured cable, Unistrut and cable tray, as well as conduit, chrome, copper/plastic pipe and plastic hose. It's easier to use than a hacksaw and far more portable than a 14" (355mm) chop saw.

FEATURES

  • Multi-Material cutting technology - one saw, one blade, cuts all
  • Accurate cutting - cuts mild steel with ready-to-weld, clean & square cold-cuts
  • Unlike abrasive cutting, the RAGE 4 TCT blade cuts steel with no harmful dust, no burrs & virtually no sparks, leaving an instantly workable finish
  • Reliable smooth square cutting every time in a variety of materials
  • Powerful 1250W hi-torque motor with optimised gearbox & blade system
  • Accurate & durable vice portability with 0˚ - 45˚ mitre detents
  • A robust, durable base - ideal when handling heavy-duty, metallic applications
  • Lightweight, easy to transport, and takes up little space, weighing only 9.1 kg
  • Versatile, repositional fence for cutting of round, square & rectangle materials
  • Chip guard & dust extraction port for added safety & cleaner working environment
  • Compatible with the Evolution 185mm Diamond blade for cutting stone, concrete, and brick (sold separately)
  • Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included

SPECIFICATION

  • Motor: 1250 W
  • No Load Speed: 4500 rpm
  • Max Mitre: 45°
  • Blade Diameter: 185mm
  • No. of Teeth: 20
  • Bore: 20mm
  • Kerf: 1.7mm
  • Max. Cross Cut (0° x 0°): 45 x 97mm
  • Max. Mitre Cut (45° x 0°): 40 x 40mm
  • Max. Round Tube (0° x 0°): 50mm
  • Mild Steel Plate (Max. Thickness): 6mm
  • Mild Steel Box Section (Max. Wall Thickness): 3mm
  • Product Dimensions: 255 x 381 x 267mm
  • Product Weight: 9.1 kg

NOISE & VIBRATION

  • Sound Pressure Level: 93 dB(A)
  • Sound Power Level: 106 dB(A)
  • Uncertainty K: 3 dB(A)
  • Vibration Level: 4.5 m/s²
  • Uncertainty K: 1.5 m/s²

Available In 110v & 240v

What's in the box

  • 1x Rage 4 185mm Cut Off Saw
  • 1x Multi Material TCT Blade
  • 1x Hex Key 6mm
  • 1x Hex Key 5mm
  • 1x Hex Key 3mm
  • 1x Dust Extraction Port
  • 1x Rubber Vice Jaw Protector
  • 1x Speed Handle
  • 1x Spare Motor Brush Set

Notes From PTW Expert

Delivers reliable, smooth square cutting every time in a variety of materials

3 Year Warranty*
