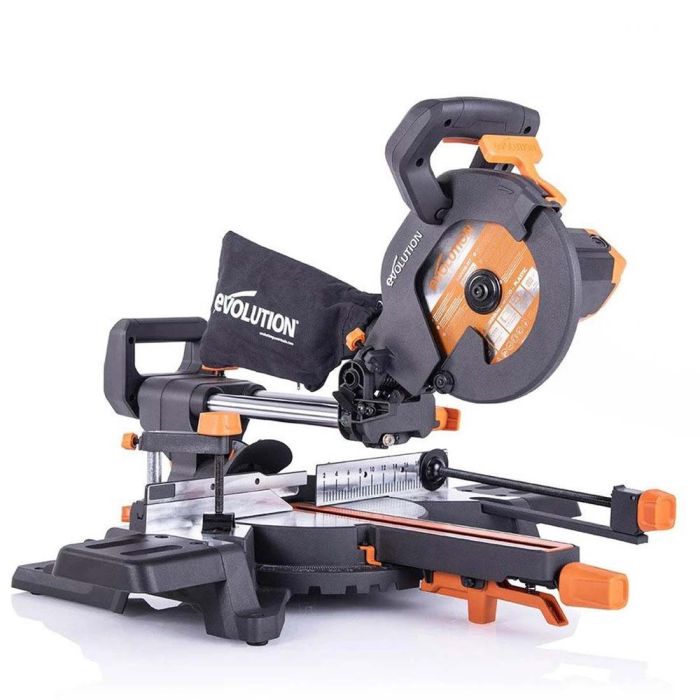

Evolution R210SMS-300+ 210mm Sliding Mitre Saw With TCT Blade

Evolution R210SMS-300+ 210mm Sliding Mitre Saw With TCT Blade 110v / 240v

The Evolution R210SMS-300+ 210 mm multi-material sliding mitre saw can cut a variety of materials such as mild steel, aluminium, wood even with embedded nails, plastic, copper and more thanks to the 24 tooth TCT blade and optimised gearbox and motor speed. When cutting mild steel the saw produces a square, ready-to-weld cut with no heat, no burrs and virtually no sparks, far superior to abrasive cutting methods. The saw is perfect for on-site use and is available in 230 V and 110 V. The 300 mm slide allows for a maximum cutting capacity of 300 x 65 mm. An invaluable tool for the home workshop or on the job, R210SMS-300+ saw is ideal for cutting copper pipe, plastic pipe, aluminium channel, cable tray, softwood such as skirting board, architraves, MDF, hardwood like oak and ash plus much more. When working with reclaimed timber the saw slices through embedded nails, screws or staples with ease.

FEATURES

• Multi-Material cutting technology - one saw, one blade, cuts all
• Accurate cutting with laser guidance, smooth sliding functionality, adjustable depth of cut and 9 positive mitre stops
• Reliable smooth square cutting every time in a variety of materials
• Powerful 1500W hi-torque motor with optimised gearbox & blade system
• 0° - 45° bevel tilt and 50° - 50° mitre covers all common cutting angles
• The R210SMS-300+ has an impressive 300mm slide capacity, allowing a greater cut capacity for wider materials, compared to a 230mm slide on the R210SMS+ model
• Premium Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included
• Dual Quick-Release clamps included for additional accuracy & faster adjustments
• Cleaner & safer working environment with dust collection bag & dust port adaptor included for use with vacuum extraction
• Integrated carry handles - easy to carry & transport around the workplace
• 3m power cable reduces the need for extension leads

SPECIFICATION

• Motor: 1500W
• No Load Speed: 3750 min^-1
• Max. Mitre: 50°
• Max. Bevel Left: 45°
• Blade Guard: Cast Aluminium
• Cable Length: 3 metres
• Blade Diameter: 210mm
• No. of Teeth: 24
• Bore: 25.4mm
• Kerf: 1.7mm
• Max. Cross Cut (0° x 0°): 300 x 65mm
• Max. Bevel Cut (0° x 45°): 300 x 38mm
• Max. Mitre Cut (45° x 0°): 210 x 65mm
• Max. Compound Cut (45° x 45°): 210 x 38mm
• Mild Steel Plate - Max. Thickness: 6mm
• Mild Steel Box Section - Max. Wall Thickness: 3mm
• Product Dimensions (With Saw Head Down): 320 x 710 x 710mm
• Product Weight: 13.2kg
• Packaged Weight: 15kg

NOISE & VIBRATION

• Sound Pressure Level (110v): 95.7 dB(A)
• Sound Pressure Level (240v): 96.5 dB(A)
• Sound Power Level (110v): 108.7 dB(A)
• Sound Power Level (240v): 109.5 dB(A)
• Uncertainty K: 3 dB(A)

Available In 110v & 240v
