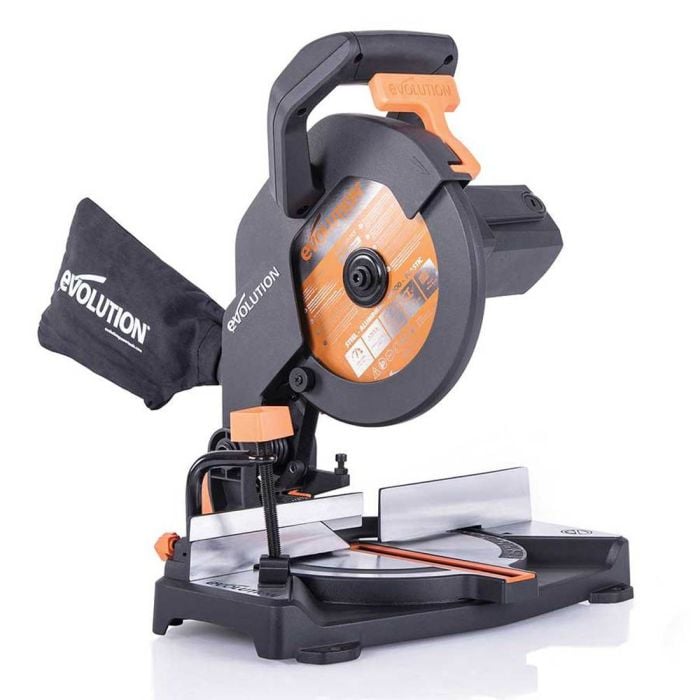

Evolution R210CMS 210mm Compound Mitre Saw With TCT Blade & Dust Bag

Evolution R210CMS 210mm Compound Mitre Saw With TCT Blade & Dust Bag 110v / 240v

The R210CMS utilises RAGE multi-material cutting, which allows this compact machine to cut steel, aluminium and wood (even wood with nails), using just one blade. Cutting through steel produces no heat, no burr and virtually no sparks. The highly portable R210-CMS offers high value and professional performance, with fast, clean and accurate cuts. With a footprint of only 260 x 393 x 381 mm when stored, ensures easy storage and portability. The R210CMS features clear and precise angle settings, quick click mitre stops, an ambidextrous handle for left and right hand use, a top clamp and extendable fence and a 45°bevel. The optional diamond blade (sold separately) completes the package, enabling you to cut brick, stone, concrete and unglazed tiles. The R210CMS is supplied with a R210-TCT multipurpose blade (24teeth), with a 210 mm blade diameter and 25.4 mm bore diameter.

FEATURES

• Multi-Material cutting technology - one saw, one blade, cuts all
• Accurate cutting with 0˚ - 45˚ bevel tilt and 45˚ - 45˚ mitre angles
• Reliable, smooth, square cut every time in a variety of materials
• Powerful 1200W hi-torque motor with optimised gearbox & blade system
• Compact, lightweight & robust design, weighing only 5.8kg
• Easy to carry with one hand and stare away taking up very little space
• 125mm x 55mm max. cross cut capacity
• Positive mitre stops both left & right at 0˚, 15, 22.5, 30, and 45˚ covers all common cutting angles accurately and reliably
• Ergonomic trigger handle designed for left and right-handed use
• Compatible with the Evolution Mitre Saw Stand (Sold Separately)
• Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included
• 3 Year limited warranty

SPECIFICATION

• Motor: 1200W
• No Load Speed: 3750 min^-1
• Max. Mitre: 45°
• Max. Bevel Left: 45°
• Blade Guard: Cast Aluminium
• Cable Length: 2 metres
• Blade Diameter: 210mm
• No. of Teeth: 24
• Bore: 25.4mm
• Kerf: 1.7mm
• Max. Cross Cut (0° x 0°): 125 x 55mm
• Max. Bevel Cut (0° x 45°): 125 x 35mm
• Max. Mitre Cut (45° x 0°): 85 x 55mm
• Max. Compound Cut (45° x 45°): 85 x 35mm
• Mild Steel Plate - Max. Thickness: 6mm
• Mild Steel Box Section - Max. Wall Thickness: 4mm
• Product Dimensions: 260 x 393 x 381mm
• Product Weight: 5.8kg
• Packaged Weight: 7.2kg

NOISE & VIBRATION

• Sound Pressure Level (110v): 96.02 dB(A)
• Sound Pressure Level (240v): 97.14 dB(A)
• Sound Power Level (110v): 109.02 dB(A)
• Sound Power Level (240v): 110.14 dB(A)
• Uncertainty K: 3 dB(A)

Available In 110v & 240v
