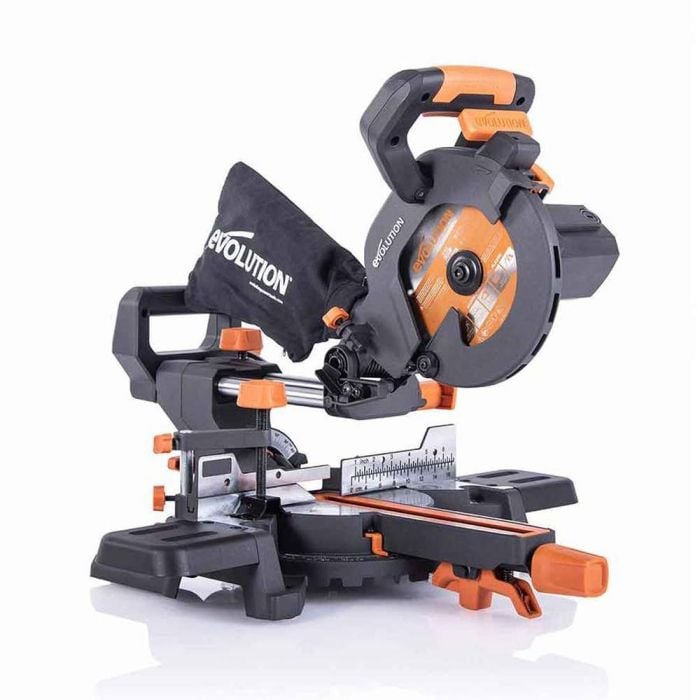

The R185SMS+ is Evolution's smallest sliding, compound mitre saw with all the 'PLUS' features, and its every bit as capable as its bigger brothers. The R185SMS+ features Multi-Material cutting technology and is perfect for any serious home workshop, fitting into the works van or installing on site with one a compact Mitre Saw Stand.
Ready to guide every cut with laser precision the R185SMS+ comes upgraded with the tungsten carbide tipped R185-TCT 20 tooth blade. It will slice through plastics, soft and hardwoods, sheet metal, aluminium, mild steel profiles and angles as well as copper pipe. It's the perfect tool for making compound cuts in decorative moulding and skirting. With plenty of power on tap the R185SMS+ will make light work of most jobs. When you factor in its compact size, accuracy, mitre, bevel and compound cut ability, high torque motor, laser guided cutting and dust collection you’ll understand why it always sells quickly.
FEATURES
Accurate cutting with laser guidance
Smooth sliding functionality
Adjustable depth of cut and 9 positive miter stops
Multi-Material cutting technology - one saw, one blade, cuts all
Reliable, smooth square cutting every time in a variety of materials
Powerful 1200W hi-torque motor with optimised gearbox and blade system
0° - 45° bevel tilt and 50˚ - 50˚ mitre covers all common cutting angles accurately & easily
210mm x 56mm max. crosscut capacity
Ergonomic trigger handle designed for left and right-handed use
Compatible with the Evolution Miter Saw Stand
Compact, lightweight & robust design, weighing under 8.95 kg
Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included
3pc clamp included for additional accuracy and faster adjustments
SPECIFICATION
Motor: 1200W
No Load Speed: 3700 min-1
Max. Mitre: 50°
Max. Bevel Left: 45°
Blade Guard: Cast Aluminium
Cable Length: 3 metres
Blade Diameter: 185mm
No. of Teeth: 20
Bore: 20mm
Kerf: 1.7mm
Max. Cross Cut (0° x 0°): 210 x 56mm
Max. Bevel Cut (0° x 45°): 210 x 38mm
Max. Mitre Cut (45° x 0°): 145 x 56mm
Max. Compound Cut (45° x 45°): 145 x 38mm
Mild Steel Plate - Max. Thickness: 6mm
Mild Steel Box Section - Max. Wall Thickness: 3mm
Product Dimensions (With Saw Head Down): 290 x 595 x 565mm
Product Weight: 8.95kg
NOISE & VIBRATION
Sound Pressure Level (110v): 91.9 dB(A)
Sound Pressure Level (240v): 93.1 dB(A)
Sound Power Level (110v): 104.9 dB(A)
Sound Power Level (240v): 106.1 dB(A)
Uncertainty K: 3 dB(A)
Available In 110v & 240v
What's in the box
1x R185SMS+ Mitre Saw
1x 20T TCT Blade
1x 3pc Hold Down Clamp
1x Dust Collection Bag
1x Dust Port Adaptor
1x Double Ended Hex Key
1x Front Clamp
1x 3m Cable
Machine Table Extensions
Notes From PTW Expert
This small but mighty 185mm sliding mitre saw is suitable for both left and right handed use
