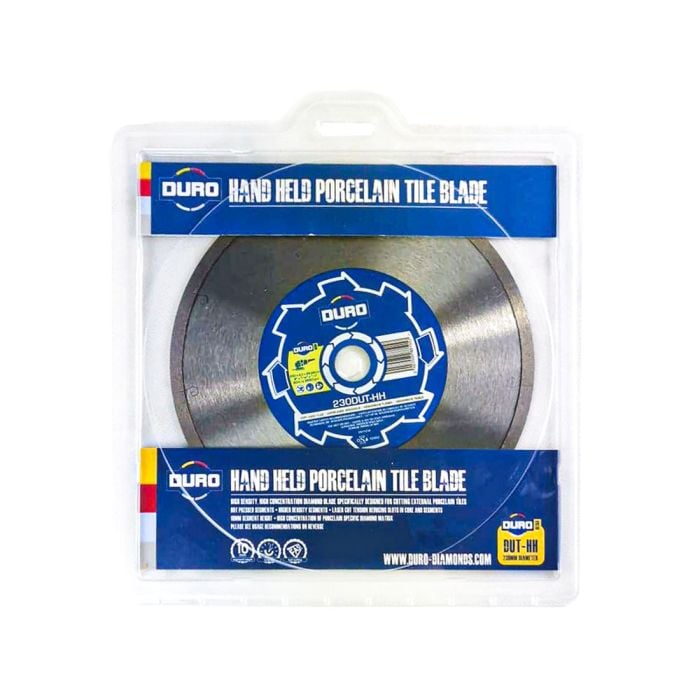

Duro Ultra 230DUT-HH Diamond Tile Blade For External Porcelain 230mm x 2mm x 22.23mm (9")

Duro Ultra 230DUT-HH Diamond Tile Blade For External Porcelain 230mm x 2mm x 22.23mm (9")

For angle grinders, petrol saws and other hand held power tools to cut external porcelain (grade 5), ceramic, natural stone and other very hard tiles.

DIRECTIONS FOR USE

• Dry or wet cutting (Do not use water with hand held electric angle grinders)
• DO NOT use in a reciprocating motion
• Secure to a suitable flat surface like a wooden pallet to reduce vibration
• Secure tile on pallet so there is no tile overhanging
• Mark the line on the tile where you want to cut
• Initially score tile across the line in one pass
• To relieve tension and stop the tile from cracking, make a 50-60mm full cut at either end of the line
• Then cut through tile fully in one slow pass, do not apply pressure and let the blade do the work
• Cutting into pallet will have no detrimental effect on the blade

FEATURES

• Excellent speed of cut
• High density / diamond concentration
• For hand held machines
• Hot pressed 10mm segment height
• Laser cut tension reducing slots

SPECIFICATION

• Part Number: 230DUT-HH
• Diameter: 230 mm / 9"
• Bore: 22.23 mm
• Thickness: 2mm
