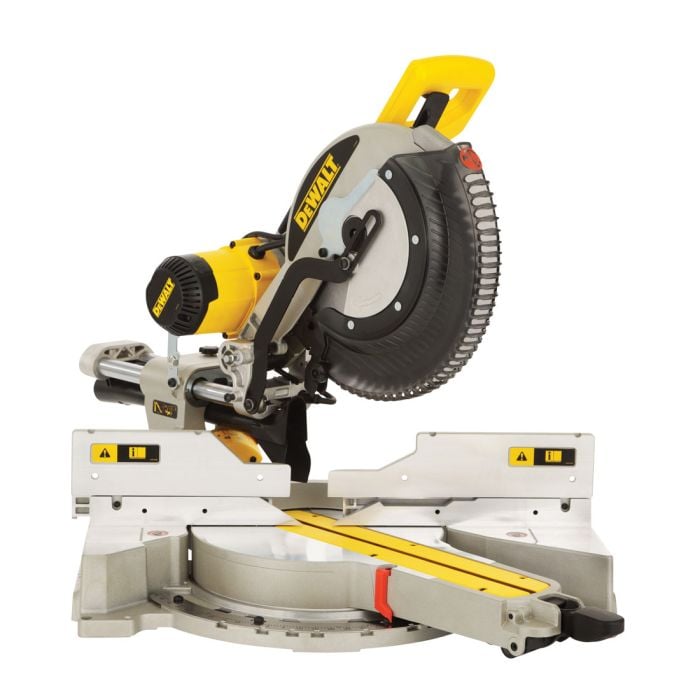

The 305mm Mitre Saw is engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees, the 1675 watt motor also offers a maximum cutting capacity of 305 x 77mm. Other features include XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and machined side handles for increased portability on site.
FEATURES
LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of angles
COMPACT & LIGHTWEIGHT: Huge cut capacities, with a lightweight compact design for easy transport around the jobsite
XPS SHADOWLINE: Provides fast accurate alignment of the blade with no adjustment required
STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 12.25, 15, 22.5, 31.6 and 45 degrees
AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection
CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° - 50° left and 0° - 60° right
DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications
MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration
SPECIFICATION
Power Input: 1675 Watts
Power Output: 960 Watt
Blade Speed: 1900 - 3800 rpm
Blade Diameter: 305 mm (12")
Blade Bore: 30 mm
Bevel Capacity: 49/49 °
Mitre Capacity [right/left]: 60/50 °
Cutting Capacity at 90°/45° (W x H): 211 x 112 mm
Cutting Capacity at 90°/90° (W x H): 303 x 110 mm
Cutting Capacity at 90°/90° (W x H): 345 x 76 mm
Cutting Capacity at 45°/90° (W x H): 268 x 63 mm
Cutting Capacity at 45°/90° (W x H): 345 x 44 mm
Cutting Capacity at 90°/45° (W x H): 244 x 76 mm
Max. Cutting Capacity at 45°/45°: 212 x 76 mm
Max. Depth of Cut [Saws]: 170 mm
Weight: 25.5 kg
Depth: 470 mm
Length: 770 mm
Height: 396 mm
NOISE & VIBRATION
Sound Power: 100 dB(A)
Sound Power Uncertainty: 3 dB(A)
Sound Pressure: 93 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Hand/Arm Vibration - Cutting Wood: <2.5 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Available in 110v & 240v
What's in the box
1x DWS780 Mitre Saw
1x High Quality 60 Tooth Saw Blade
2x Base Extensions
1x Blade Wrench
1x 60 Tooth Blade
1x Dustbag
1x Material Clamp
Notes From PTW Expert
Provides maximum support in large material cuts at any angle or combination of angles
