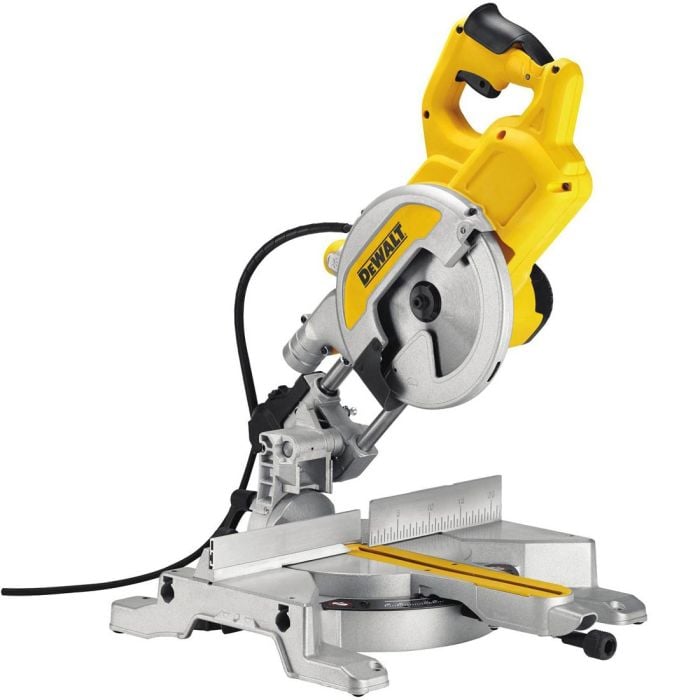

DeWalt DWS777 216mm XPS Crosscut Compound Slide Mitre Saw

DeWalt DWS777 216mm Crosscut Compound Slide Mitre Saw

The DeWalt DWS777 216mm Mitre Saw is the classic saw design improved and updated for the modern user. It has a new 1800 Watt motor for powerful cutting in all materials (1600 Watt Low Voltage version UK Only)

XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

FEATURES

• The classic saw design improved and updated for the modern user
• New 1800 Watt motor for powerful cutting in all materials (1600 Watt Low Voltage version UK Only)
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• New Single Point Dust Extraction Airlock compatible
• The base and fence have been machined to meet the accuracy requirements of the most demanding applications
• Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
• Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
• Sliding left hand fence with measuring scale for improved material support and management
• Compact internal rail design for huge cutting capacity in a highly transportable format

SPECIFICATION

• Power Input: 1800 Watts
• Power Output: 1100 Watt
• Blade Speed: 6300 rpm
• Blade Diameter: 216 mm
• Blade Bore: 30 mm
• Bevel Capacity: 48 °
• Mitre Capacity [Right/Left]: 50/50 °
• Cutting Capacity at 90°/45° (W x H): 173 x 62 mm
• Cutting Capacity at 90°/90° (W x H): 270 x 62 mm
• Cutting Capacity at 90°/90° (W x H): 270 x 60 mm
• Cutting Capacity at 45°/90° (W x H): 189 x 62 mm
• Cutting Capacity at 45°/90° (W x H): 190 x 60 mm
• Cutting Capacity at 90°/45° (W x H): 270 x 48 mm
• Max. Cutting Capacity at 45°/45°: 190x48 mm
• Max. Depth of Cut [Saws]: 80 mm
• Weight: 14.0 kg
• Depth: 550 mm
• Length: 490 mm
• Height: 590 mm

NOISE & VIBRATION

• Hand/Arm Vibration Cutting Wood: 2.1 m/s²
• Uncertainty K1 Vibration: 1.5 m/s²
• Sound Power: 104 dB(A)
• Sound Power Uncertainty: 3.9 dB(A)
• Sound Pressure: 93 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)

Available In 110v & 240v
