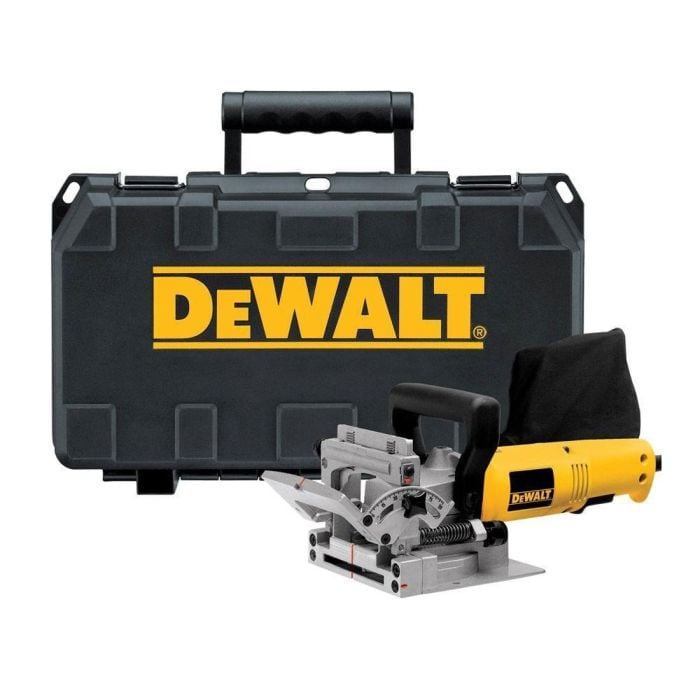

DeWalt DW682K 600w Biscuit Jointer

DeWalt DW682K 600w Biscuit Jointer

The DeWalt DW682K is a 600W professional biscuit jointer (or plate joiner) designed for creating strong, accurate, and invisible joints in wood, furniture manufacturing, and cabinetry. It is designed for high-precision, heavy-duty applications with a 100mm cutter diameter and a maximum cutting depth of 20mm. Includes preset cutting depth stops for #0, #10, and #20 biscuit sizes, along with an additional fine adjustment feature for maximum accuracy.

FEATURES

• Rack and pinion control provides precise vertical adjustment and fence alignment
• Pre-set cutting depths for 0, 10 and 20 biscuit sizes with additional fine adjustment for ultimate accuracy
• Mitre fence that remains attached in all applications for simple use
• Anti slide grippers, eight guiding notches and fence window to aid accurate cuts
• Tungsten carbide tipped grooving cutter
• 35mm dust extraction spout

SPECIFICATION

• Power Input: 600 W
• No Load Speed: 10,000 rpm
• Max Cutting Diameter: 100 mm
• Max Cutting Depth: 20 mm
• Fence Adjustment 0-90º
• Joint Groove Setting: 4 mm
• Length: 320 mm
• Height: 150 mm
• Weight: 5.032 kg

NOISE & VIBRATION

• Sound Pressure (LpA): 82 dB(A)
• Sound Pressure Uncertainty (K) : 3 dB(A)
• Sound Power (LwA): 100 dB(A)
• Sound Power Uncertainty (K): 3.1 dB(A)
• Vibration Emission Value (ah): 2.5 m/s²
• Vibration Uncertainty (K): 1.5 m/s²

Available In 110v & 240v
