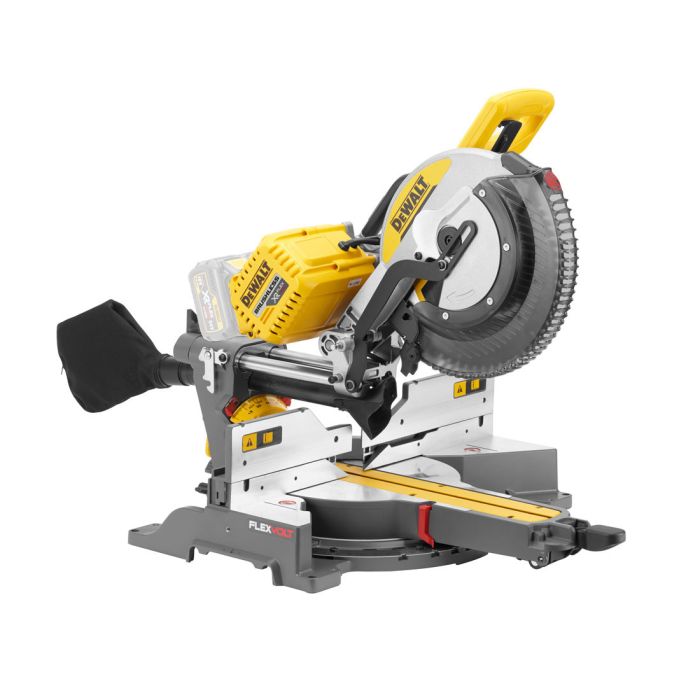

DeWalt DHS780N-XJ 305mm (12") 2x 54v FLEXVOLT Cordless Mitre Saw Body Only

DeWalt DHS780N-XJ 305mm 12" 2x 54v FLEXVOLT Cordless Mitre Saw Body Only with 60 Tooth Saw Blade

The new DHS780 FlexVolt 305mm (12”) mitre saw with brushless motor and hybrid drive is powered by either 2x 54v FlexVolt batteries or via AC/DC mains adapter (DCB500 adaptors sold separately). Despite being cordless and having a compact design, it has a huge cutting capacity of up to 303 x 110 mm. Capable of cutting 244 cuts of 20 x 70mm softwood on a full twin battery cycle.

The DHS780 is designed for large-volume use and has, for example, a dust-proof trombone cut-out for the machining of larger workpieces. The high-quality bearing guide rollers ensure a comfortable and precise cutting guide with an expanded cutting capacity of up to 330 x 58 mm (or with a 20 mm workpiece insert 120 x 120 mm).

The XPS cut-line display provides for even more precision: Bright LEDs project the saw blade's shadow onto the work area from above, allowing the workpiece to be aligned exactly and the cutting area is perfectly illuminated.

FEATURES

• Extreme versatility with cordless or corded power option - Cordless with the power of corded (DCB500 adaptor required for mains power)
• Expanded cutting capacity of up to 330 x 58 mm (or with a 20 mm workpiece insert 120 x 120 mm)
• Professional capacity in cross-cut, vertical and nested crown cutting applications
• Precision cutting and grooving ensure a cut depth limitation
• The angle of inclination can be precisely adjusted infinitely
• Fixed ratchets for standard angles enable exact and fast mitre adjustments
• Rail Lock Latch - Holds position for max vertical
• XPS cut-line display provides for even more precision
• Dust-proof trombone cut-out for the machining of larger workpieces
• High-quality bearing guide rollers ensure a comfortable and precise cutting guide
• Pull-out and the saw head can be locked without any problem for safe transport
• Outstanding dust extraction capabilities, extracting 75%+ of dust created

SPECIFICATION

• Power Supply: 2x 54v FlexVolt Batteries / AC/DC (With DCB500 Adapter) Sold Separately
• Power Output: 1600 W
• Blade Speed: 1900 - 3800 rpm
• Blade Diameter: 305 mm (12")
• Blade Bore: 30 mm
• Bevel Capacity: 49/49 °
• Mitre Capacity [right/left]: 60/50 °
• Cutting Capacity at 90°/45° (W x H): 211 x 112 mm
• Cutting Capacity at 90°/90° (W x H): 303 x 110 mm
• Cutting Capacity at 90°/90° (W x H): 345 x 76 mm
• Cutting Capacity at 45°/90° (W x H): 268 x 63 mm
• Cutting Capacity at 45°/90° (W x H): 345 x 44 mm
• Cutting Capacity at 90°/45° (W x H): 244 x 76 mm
• Max. Cutting Capacity at 45°/45°: 212 x 76 mm
• Max. Depth of Cut [Saws]: 110 x 305 mm
• Weight: 25.5 kg
