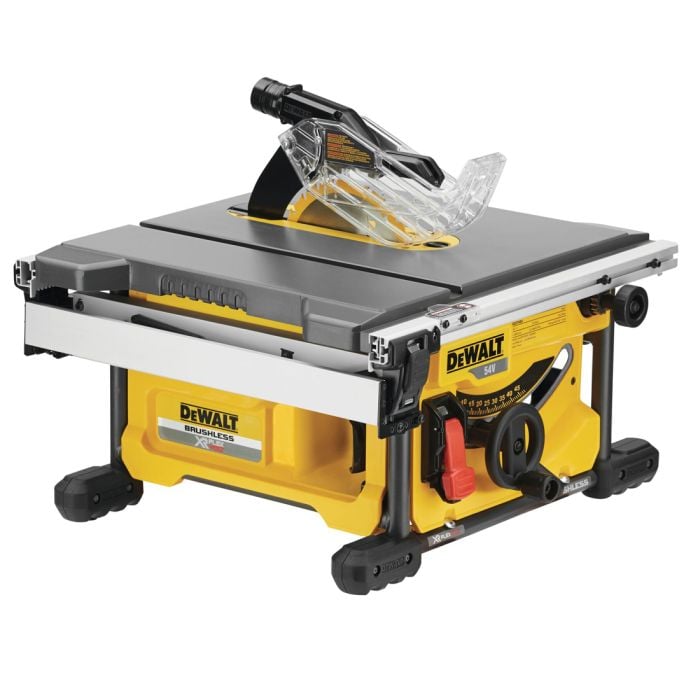

DeWalt DCS7485N 54v XR FLEXVOLT Cordless Brushless Table Saw Body Only

DeWalt DCS7485N 54v XR FLEXVOLT Cordless Brushless Table Saw Body Only

DeWalt XR FLEXVOLT: the World’s first 18/54V convertible battery pack system

The DCS7485 Brushless Table Saw will cut 50m of 18mm OSB from a single 54v battery (sold separately). You can now complete the toughest jobs with no trailing cables. The DCS7485 has a 210mm blade, an accurate fence utilising rack and pinion adjustment and a 480mm x 480mm table size. A great machine for fitting solid wood flooring, general sizing of panels, concrete form work, sizing timber for joinery and fitting out decks.

FEATURES

• 22kg weight and optimised footprint make this the most portable table saw in its class
• Steel roll cage protects saw against drops and jobsite knocks
• Rack and pinion fence system, front and rear fence lock and large clear scales combine to give an extremely accurate and easy to use saw
• Powerful 54V motor for high performance in all applications
• Fence system provides 610mm of rip capacity in a portable design for cutting large sheet material to size
• Cast table top design to ensure accuracy and precision
• Overload protection system ensures powerful
• Quick bevel lock with large scale for easy, accurate adjustments

APPLICATIONS

• Fitting solid wood flooring
• General sizing of panels
• Concrete form work
• Sizing timber for joinery
• Fitting out decks

SPECIFICATION

• Voltage: 54v
• Battery Compatibility: XR FLEXVOLT 54v
• Blade Speed: 5800 rpm
• Blade Diameter: 210 mm
• Blade Bore: 30mm
• Bevel Capacity: -3 to 48 deg
• Max Ripping Capacity Right: 610 mm
• Max Ripping Capacity Left: 318 mm
• Max. Depth of Cut at 90 deg: 65 mm
• Max. Depth of Cut at 45 deg: 45 mm
• Table Size: 485 x 485mm
• Depth: 605mm
• Length: 605mm
• Height: 330mm
• Weight: 22kg

NOISE & VIBRATION

• Sound Power: 100 dBA
• Sound Power Uncertainty: 3
