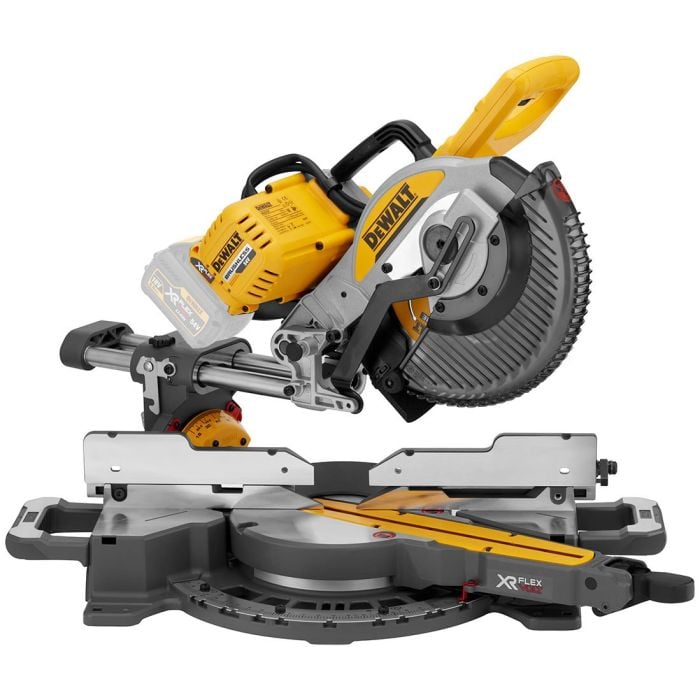

DeWalt DCS727N-XJ 250mm (10") 54v FLEXVOLT Cordless Mitre Saw Body Only

DeWalt DCS727N-XJ 250mm / 10" 54v FLEXVOLT Cordless Mitre Saw Body Only with Saw Blade

The DeWalt DCS727 54V XR FLEXVOLT 250mm double bevel slide cordless mitre saw features the built in XPS cross cut positioning system that provides increased accuracy and visibility and unlike a laser system, does not require any calibration. The compact, lightweight and targeted design delivers a saw focused on practical application which is easy to transport to and around the jobsite. The integral and innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications.

Supplied as body only with 250mm saw blade. Requires a single XR FLEXVOLT battery to operate (batteries and chargers available separately).

FEATURES

• Base and fence designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy in key applications
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
• Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the jobsite
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
• The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
• Linear 32mm horizontal rails with roller bearings provide maximum precision when cutting materials up to 305 mm wide
• Quick release bevel setting provides accurate and simple setting of bevel angles up to 48 degrees left and right
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
• AIRLOCK compatible dust extraction improves cut line visibility and provides cleaner and safer jobsites
• Wireless Tool Control (WTC) compatibility allows automatic wireless connection to extractors such as DCV586 with transmitter chip (sold separately)

SPECIFICATION

• Power Supply: 54v FlexVolt Battery
• Blade Speed: 4300 rpm
• Blade Diameter: 250 mm (10")
• Blade Bore: 30 mm
• Max Kerf Thickness: 3.0 mm
• Bevel Capacity: 49/49 °
• Mitre Capacity [Right/Left]: 50/60 °
• Cutting Capacity at 90°/45° (W x H): 305 x 50 mm
• Cutting Capacity at 45°/90° (W x H): 210 x 77 mm
• Cutting Capacity at 45°/90° (W x H): 210 x 77 mm
• Cutting Capacity at 90°/45° (W x H): 305 x 50 mm
• Max. Cutting Capacity at 45°/45°: 210 x 50 mm
• Max. Depth of Cut [90°]: 90 mm
• Weight: 20.5 kg
• Depth: 480 mm
• Length: 770 mm
• Height: 460 mm

NOISE & VIBRATION

• Sound Power: 111.7 dB(A)
• Sound Power Uncertainty: 3 dB(A)
• Sound Pressure: 100.3 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
