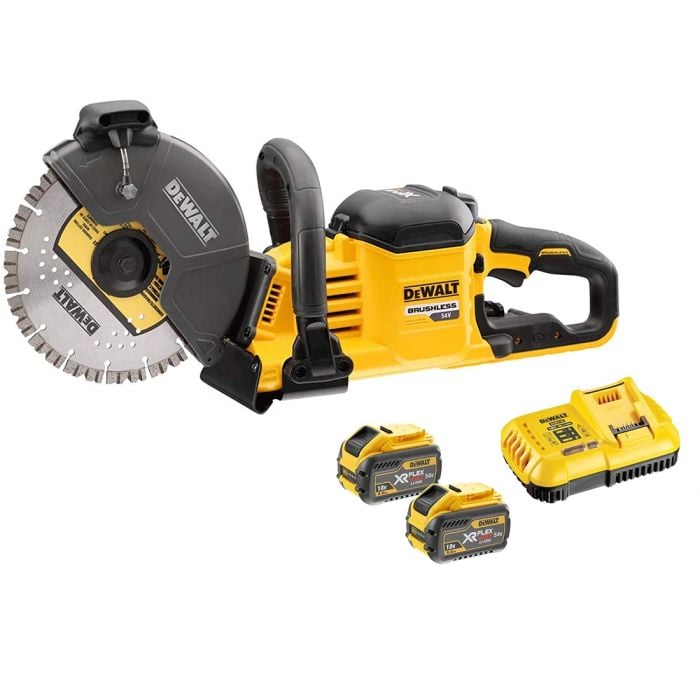

DeWalt DCS690X2-GB 54v XR FLEXVOLT 230mm Cordless Brushless Cut Off Saw inc 2x DCB547 Batteries and DCB118 Charger
The DeWalt DCS690 54v XR Cut Off Saw uses a 230mm Diamond Blade with 83mm depth of cut making this saw usable for the majority of onsite applications. The tool's latched battery compartment minimises dust and water ingress into the battery terminals and enhances durability. This saw has also got a sealed switch which increases durability even in the dustiest environments.
The new 230mm blades, available in metal or diamond, give a large 83mm cut-depth when the blade guard is adjusted to the best angle to take advantage of this depending on application. There is a standard hose attachment near the trigger allowing you to connect a water supply to feed the two sided dust dampening system for wet cutting. With this saw, and the two blade types (diamond or metal), you can cut concrete, cast iron, rebar, steel and stainless steel, aluminium and other metals. The ergonomic handle with soft grip enhances the user comfort and reduces fatigue for enhanced productivity. Also being battery powered over being powered by petrol reduces the noise level, there are no filters to clean, no maintenance and no need for refuelling.
FEATURES
54V Brushless motor for extended durability, efficiency and power delivering a no load speed of 6,600rpm
Safer and more convenient than petrol equivalents
Water adjuster for wet cutting
Heavy load indicator gives the user feedback and helps cut with optimised force without stopping
Adjustable dual-sided water delivery system has superior dust management
5-Position rotable guard optimised approach angle for improved visibility when cutting in tight spots
Brake provides fast reduction in wheel speed increases safety and productivity
Brushless motor extended durability, efficiency and power
Ergonomic auxiliary handle optimised for horizontal and vertical cutting
Rear labyrinth construction air intake keeps motor clean, cool and debris free
All metal drive-train superior durability and efficiency
SPECIFICATION
Voltage: 54v
Brushless Motor: Yes
Battery Compatibility: XR FLEXVOLT 54v
Blade Diameter: 230 mm
Blade Bore: 22.2 mm
No Load Speed: 6,600 rpm
Metal Wheel Perimeter Thickness (Max.): 3.6 mm
Resin Wheel Perimeter Thickness (Max.): 3.6 mm
Thread Size: M8
Water Quick Connector: 12.5 mm
Depth of Cut: 83 mm
Cut Time 25 mm Scoring 60 cm: 33 Secs
Cut Time 19 mm Rebar: 4 Secs
Cut Time Through Cinder Block: 5.2 Secs
Length: 670 mm
Width: 206 mm
Height: 341 mm
Weight (exc. Battery): 5.5 kg
Weight (with Battery): 6.75 kg
Runtime DCB547: (25 mm Scoring Single Pass): 7.5 mtrs
Runtime DCB547: 19 mm Rebar Cuts: 67
Runtime DCB547: Roof Tile: 50
NOISE & VIBRATION
Emission Sound Pressure Level: 103.6 dB(A)
Sound Pressure Uncertainty: 3.2 dB(A)
Sound Power Level: 114.6 dB(A)
Sound Power Uncertainty: 3.2 dB(A)
Vibration Emission Value: 4.2 m/s²
Uncertainty K (Vibration): 1.5 m/s²
What's in the box
1x DCS690 Cut Off Saw
2x DCB547 54v FLEXVOLT Batteries
1x DCB118 Fast Battery Charger
Blade Not Included
Notes From PTW Expert
Corded performance from a cordless tool. No fumes or cords and ultimate performance with the latest DeWalt Brushless FlexVolt technology!
