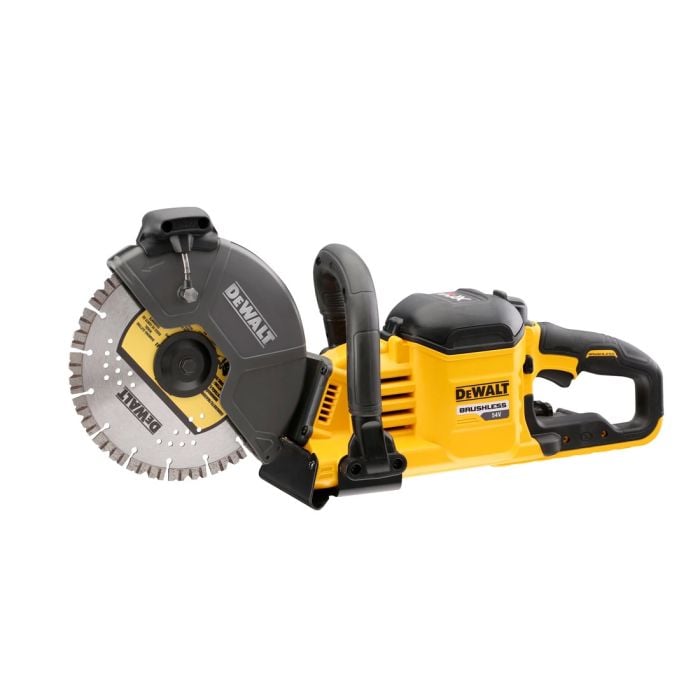

DeWalt DCS690N-XJ 54v XR FLEXVOLT 230mm Cut Off Saw Body Only

DeWalt DCS690N-XJ 54v XR FLEXVOLT 230mm Cordless Brushless Cut Off Saw Body Only with Diamond Blade

The DeWalt DCS690 54v XR Cut Off Saw uses a 230mm Diamond Blade (sold separately) with 83mm depth of cut making this saw usable for the majority of onsite applications. The tool's latched battery compartment minimises dust and water ingress into the battery terminals and enhances durability. This saw has also got a sealed switch which increases durability even in the dustiest environments.

The new 230mm blades, available in metal or diamond, give a large 83mm cut-depth when the blade guard is adjusted to the best angle to take advantage of this depending on application. There is a standard hose attachment near the trigger allowing you to connect a water supply to feed the two sided dust dampening system for wet cutting. With this saw, and the two blade types (diamond or metal), you can cut concrete, cast iron, rebar, steel and stainless steel, aluminium and other metals. The ergonomic handle with soft grip enhances the user comfort and reduces fatigue for enhanced productivity. Also being battery powered over being powered by petrol reduces the noise level, there are no filters to clean, no maintenance and no need for refuelling.

FEATURES

• 54V Brushless motor for extended durability, efficiency and power delivering a no load speed of 6,600rpm
• Safer and more convenient than petrol equivalents
• Water adjuster for wet cutting
• Heavy load indicator gives the user feedback and helps cut with optimised force without stopping
• Adjustable dual-sided water delivery system has superior dust management
• 5-Position rotable guard optimised approach angle for improved visibility when cutting in tight spots
• Brake provides fast reduction in wheel speed increases safety and productivity
• Brushless motor extended durability, efficiency and power
• Ergonomic auxiliary handle optimised for horizontal and vertical cutting
• Rear labyrinth construction air intake keeps motor clean, cool and debris free
• All metal drive-train superior durability and efficiency

SPECIFICATION

• Voltage: 54v
• Brushless Motor: Yes
• Battery Compatibility: XR FLEXVOLT 54v
• Blade Diameter: 230 mm
• Blade Bore: 22.2 mm
• No Load Speed: 6,600 rpm
• Metal Wheel Perimeter Thickness (Max.): 3.6 mm
• Resin Wheel Perimeter Thickness (Max.): 3.6 mm
• Thread Size: M8
• Water Quick Connector: 12.5 mm
• Depth of Cut: 83 mm
• Cut Time 25 mm Scoring 60 cm: 33 Secs
• Cut Time 19 mm Rebar: 4 Secs
• Cut Time Through Cinder Block: 5.2 Secs
• Length: 670 mm
• Width: 206 mm
• Height: 341 mm
• Weight (exc. Battery): 5.5 kg
• Weight (with Battery): 6.75 kg
• Runtime DCB547: (25 mm Scoring Single Pass): 7.5 mtrs
• Runtime DCB547: 19 mm Rebar Cuts: 67
• Runtime DCB547: Roof Tile: 50

NOISE & VIBRATION

• Emission Sound Pressure Level: 103.6 dB(A)
• Sound Pressure Uncertainty: 3.2 dB(A)
• Sound Power Level: 114.6 dB(A)
• Sound Power Uncertainty: 3.2 dB(A)
• Vibration Emission Value: 4.2 m/s²
• Uncertainty K (Vibration): 1.5 m/s²
