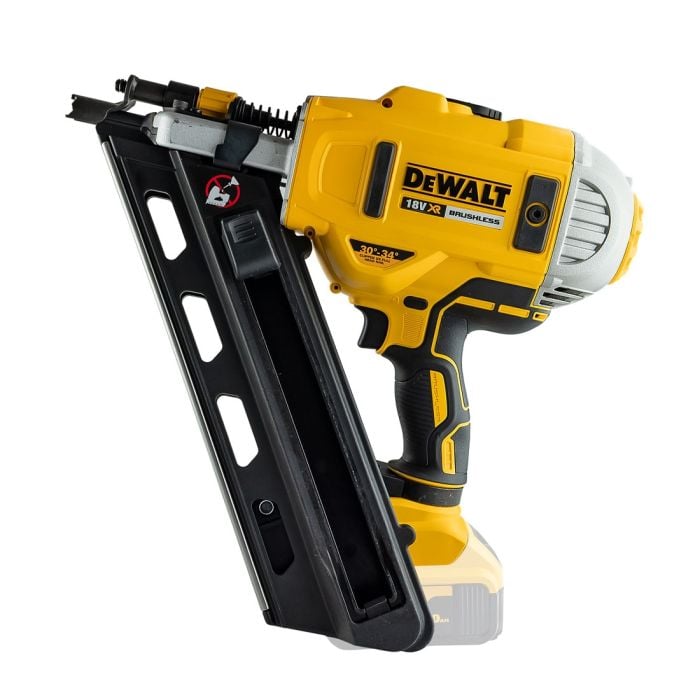

DeWalt DCN692N 18v XR Brushless 1st Fix Framing Nailer Body Only Type 3
DeWalt brought you the world’s first cordless first fix framing nailer and now they've improved it. Still coming with an efficient brushless motor but it now can run on DCB184 5.0Ah, DCB182 4.0Ah, or DCB183 2.0Ah battery packs (sold separately). The DCN692 benefits from longer runtime, quicker readiness to fire, less recoil and more durability when firing short nails. But what makes this first fix nailer so popular with is the fact it runs without gas.
Supplied body only. Batteries and chargers are sold separately.
FEATURES
Two speeds or power levels which optimises the nailer for firing all lengths of nails.
The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
Mechanical rather than gas operation offers consistent performance at temperature between -20 and 50 degrees Celsius and minimal cleaning/service requirements
Class leading vibration and sound figures, offer fantastic user protection
Versatile 30 - 34 degree magazine angle will accept most clipped head, and off centre round head paper tape or wire weld collated framing nails
Reversible belt/rafter hook provides increased portability and versatility on the job-site
Depths can be easily adjusted using the thumb wheel depth adjuster Increased visibility and durability along with protection for work-surface from the non-mar contact-trip
Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
Gas free operation offers a significant saving in running costs
Tool free stall/jam clearance minimises user down time
Cordless design so no hanging leads to deal with
User can engage contact trip lock-off and prevent accidental dis-charge of fastener
Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
SPECIFICATION
Compatible Battery Chemistry: XR Li-Ion
Voltage: 18v
Nail Diameter: 2.8 - 3.3 mm
Magazine Angle: 30 - 34 °
Magazine Loading: Rear - load
Nail Length (Plain Shank): 50 - 90 mm
Magazine Capacity: Up to 55 Nails
Trigger Type: Bump & Sequential
Length: 345 mm
Width: 125 mm
Height: 338 mm
Weight: 4.1 kg
Nailer Operating Mode: Selective
Integrated Belt Hook: Yes
Jam Clearing: Yes
Impact Energy: 105 J
Temperature Range: -20 to 50°C
Fault Indicator: Yes
What's in the box
1x DCN692 Framing Nailer Type 3 Body Only
1x Reversible Belt Hook
1x No Mark Tip
Notes From PTW Expert
Speed selection switch on foot - gives the ability to change between top speed for longer nails and slower speed for smaller nails. Top speed is for use with nails between 71-90 mm, giving approx. x750 nails per 5Ah charge. Slower speed is for use with 50-70 mm nails - this will increase your number of nails per charge up to approx. x1250
