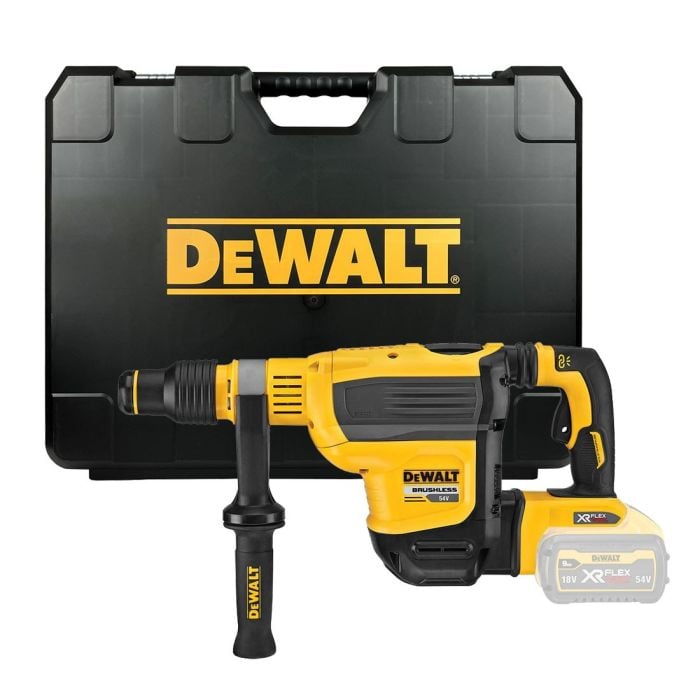

DeWalt DCH614N-XJ 54v XR FLEXVOLT Brushless SDS MAX Hammer Drill Body Only in Carry Case
The DeWalt DCH614 XR FLEXVOLT SDS-MAX Demolition Hammer Drill offers true corded power with all of the freedom of cordless. Featuring a 2-mode system with rotary hammer and hammer only. The DCH614 is the perfect tool to help you tackle almost any job on site. The fully brushless motor provides a huge boost to runtime and allows you to drill up to 25 holes at 20mm x 150mm.
We recommend high capacity DCB547 XR Flexvolt batteries (sold separately). Includes tool body and side handle.
FEATURES
True corded performance in a cordless power tool
Anti-rotation system detects a loss of tool control, and reacts by instantly cutting the power
Brushless motor for improved runtime and reduced maintenance
Electronic speed and impact energy control
Rotation stop mode with lock-on switch for chiselling
Wireless Tool Control (WTC) transmitter (sold separately) allows the tool to be wirelessly paired with another Wireless Tool Control device, such as a dust extractor, for automatic activation and shut down
Perform & Protect: low vibration at 8.8m/s², minimising user fatigue
Ideal for drilling anchors and fixing holes into concrete, brick and masonry up to 45mm in diameter
Compact, lightweight and ergonomic design for improved comfort and support during extended operating periods
LED service indicator
SPECIFICATION
Voltage: 54v
Tool Holder: SDS-Max
Battery Type: XR Flexvolt Li-Ion
Impact Energy (EPTA 05/2009): 10.5 J
Load Speed: 190-380 rpm
Blows per Minute: 1450-2900 bpm
Max. Drilling Capacity (Concrete): 45 mm
Max. Drilling Capacity (Core Bit): 125 mm
Weight: 6.8 kg
Length: 526 mm
Height: 251 mm
Width: 112 mm
NOISE & VIBRATION
Sound Pressure: 93 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Sound Power: 104 dB(A)
Sound Power Uncertainty: 3 dB(A)
Hand/Arm Vibration - Hammer Drilling Into Concrete: 8.8 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Hand/Arm Vibration - Chiselling: 8.1 m/s²
Uncertainty K 2 (Vibration): 1.5 m/s²
What's in the box
1x DCH614 SDS MAX Hammer Drill
1x Multi-Position Side Handle
1x Heavy Duty Carry Case
Notes From PTW Expert
Requires 54v XR FLEXVOLT batteries - which can be used with your existing DeWalt 18v XR kit giving extended runtime!
