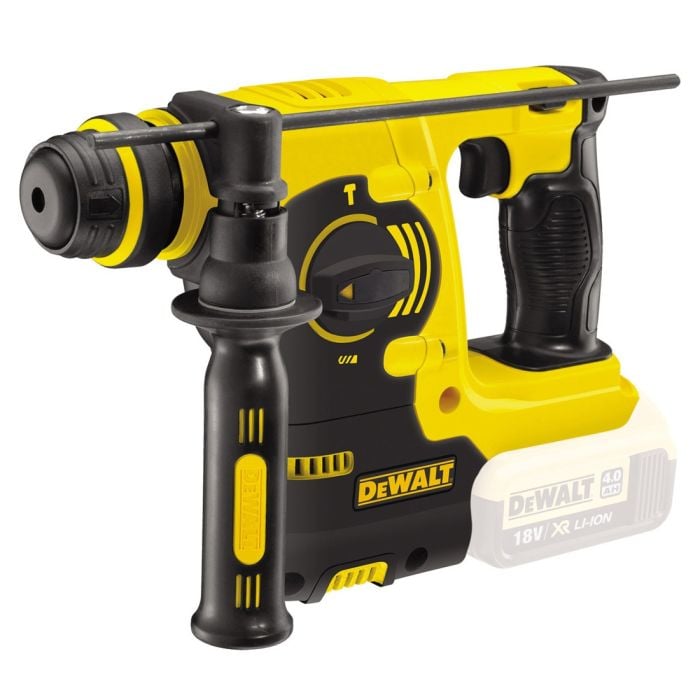

DeWalt DCH253N 18v SDS+ Plus Rotary Hammer Drill Body Only
The DeWalt DCH253 18V XR SDS-Plus Hammer Drill is a powerful cordless rotary hammer designed for demanding drilling and light chiselling applications. Delivering 2.1J of impact energy and up to 4,500 blows per minute, it is suitable for drilling fixing and anchor holes in concrete, brick and masonry.
The DCH253 features a three-mode operation, allowing hammer drilling, rotary-only drilling and light chiselling. Its rotation-stop function is ideal for light chiselling in plaster, tiles and render, while the impact-stop mode allows rotary drilling in wood and metal. A bright white LED with delay improves visibility in darker work areas, while the low vibration level of 6.6m/s² helps reduce user fatigue during extended use. Supplied body only. Batteries & chargers are sold separately.
FEATURES
2.1J Impact energy
SDS-Plus tool holder
Three operating modes: hammer drilling, rotary drilling and chiselling
Maximum drilling capacity of 24mm in concrete
Rotation-stop mode for light chiselling
Impact-stop mode for drilling in wood and metal
No-load speed of up to 1,200rpm
Up to 4,500 blows per minute
Low vibration of 6.6m/s² during hammer drilling
Bright white LED work light with delay function
Brushed motor
Ergonomic multi-position side handle
Ideal for anchors, fixings, masonry and general construction work
SPECIFICATION
Voltage: 18v XR
Battery Capacity: N/A
Power Output: 400 Watts
No Load Speed: 0-1200 rpm
Impact Energy (EPTA 05/2009): 2.1 J
Blows per Minute: 0-4500 bpm
Max. Drilling Capacity in Wood: 26mm
Max. Drilling Capacity in Metal: 13mm
Max. Drilling Capacity in Concrete: 24mm
Tool Holder: SDS-Plus
NOISE & VIBRATION
Sound Pressure: 86 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Sound Power: 97 dB(A)
Sound Power Uncertainty: 3 dB(A)
Vibration - Hammer Drilling into Concrete 6.6 m/s²
Vibration - Chiselling 5.4 m/s²
Vibration - Drilling into Metal 2.5 m/s²
Vibration - Screw Driving without Impact 2.5 m/s²
Uncertainty K (Vibration) 1.5 m/s²
What's in the box
1x DCH253 Rotary Hammer Drill Body Only
1x Depth Stop
1x Side Handle
Notes From PTW Expert
Features a three-mode operation, allowing hammer drilling, rotary-only drilling and light chiselling
