DeWalt DCD796N 18v XR Brushless Combi Drill Body Only
play video Play video

DeWalt DCD796N 18v XR Brushless Combi Drill Body Only

£68.99 £57.49
- +

Replaces DCD785N, DCD795N & DCD709N

SKU: DEWDCD796N-XJ | EAN: 5055945211764
You may also need these

what's in the box

  • 1x DCD796 Combi Drill Body Only
  • 1x Belt Clip

Notes From PTW Expert

Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster

3 Year Warranty*

Overview

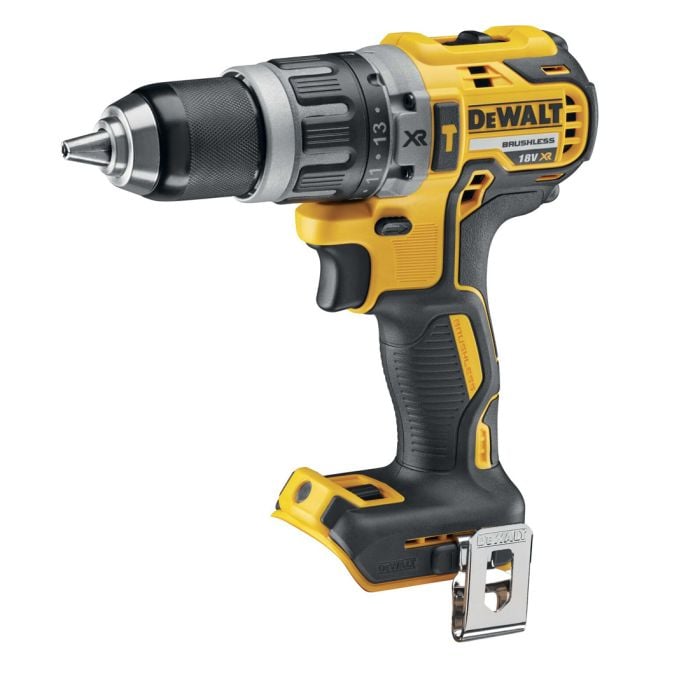

DeWalt DCD796N 18v XR Brushless Combi Drill Body Only

The new DeWalt DCD796 compact combi hammer drill featuring brushless technology is up to 30% more powerful than the DCD795 with 460 Units Watts Out (UWO).

Supplied body only. Batteries & chargers are sold separately.

FEATURES

  • Brushless Motor Technology for excellent efficiency
  • Ultra compact, lightweight design allows use in confined spaces
  • Two speed all metal transmission for increased runtime and longer tool life
  • Drill Driver and Hammer feature for multiple applications
  • 15 position adjustable torque control for consistent screw driving into a variety of materials
  • Intelligent trigger design allows for total control of application
  • Improved ergonomic design with rubber grip over mould improving users comfort
  • Improved air flow to the motor for cooler electronics and incrreased power
  • 3 position super bright LED light
  • Li-Ion battery packs allows for superior insertion and removal with state of charge indicator

SPECIFICATION

  • Voltage: 18v
  • Power Output (W): 460
  • Soft Application Max Torque (Nm): 27
  • Hard Application Max Torque (Nm): 70
  • Torque Settings: 15 + Drill
  • Brake Type: Electric
  • No. of Gears: 2
  • LED Job Light: Yes / Delay / Base-mounted
  • Battery Capacity Indicator: No
  • Battery Compatibility: 18v Lithium-Ion (XR)
  • Rotation: Forward / Reverse
  • Variable Speed Control Trigger: Yes
  • No Load Speed (RPM) High: 0-2000
  • No Load Speed (RPM) Med: N/A
  • No Load Speed (RPM) Low: 0-550
  • Chuck Type: 3-Jaw / Single Sleeve Keyless / All Metal
  • Chuck Capacity (mm): 1.5-13.0
  • Drill Capacity: Concrete (mm): 13
  • Drill Capacity: Metal (mm): 13
  • Drill Capacity: Wood (mm): 40
  • Impact Rate (BPM) High: 0-34000
  • Impact Rate (BPM) Med: N/A
  • Impact Rate (BPM) Low: 0-9350
  • Overall Length (mm): 190
  • Net Weight (Approx. Kg) with 1.5/2Ah Batt: 1.6
  • Net Weight (Approx. Kg) with 3/4/5Ah Batt: 1.8
  • Brushless Motor: Yes

NOISE & VIBRATION

  • Sound Pressure Level (LpA): 89 dB (A)
  • Sound Power Level (LWA): 100 dB (A)
  • Sound Uncertainty (K): 3 dB (A)
  • Drilling Concrete Vibration Emission (ah): 11.5 m/s²
  • Drilling Concrete Vibration Uncertainty (K): 1.6 m/s²
  • Drilling Metal Vibration Emission (ah): <2.5 m/s²
  • Drilling Metal Vibration Uncertainty (K): 1.5 m/s²
