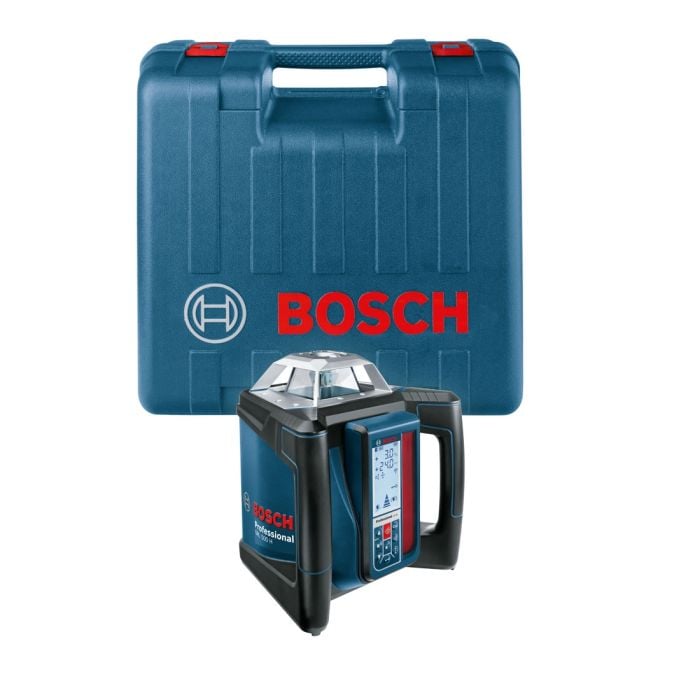

Bosch GRL 500 H + LR 50 Professional Rotation Laser
- The first rotation laser with theft protection for all levelling work.
- Theft protection: an alarm is triggered if the GRL 500 H/HV is moved without the LR 50 Professional during operation.
- Simultaneous charging: the Li-Ion batteries in both components are charged together in very little time.
- Calibration reminder: automatically indicates possible calibration requirement.
- Relative height display: distance between where the laser beam hits the reception area and the centre of the receiver.
- Slope function: enter slope values directly and precisely using the LR 50 Professional keypad.
- Anti-Drift System: prevents levelling errors in the event of shocks or vibrations.
- Sleep mode: longer operating time while retaining the settings
- Centre Line button: automatically aligns the laser beam with the centre of the receiver and measures the slope value.
- Laser diode: 635 nm, < 1 mW
- Operating temperature: -10 – 50 °C
- Storage temperature: -20 – 70 °C
- Laser class: 2
- Working range with laser receiver: 500 m (Diameter)
- Working range without receiver: 20 m (Diameter)
- Accuracy: ± 0.05 mm/m horizontal,
- Self-levelling range: ± 5,7° (10%)
- Levelling time: 15 s
- Dust and splash protection: IP 56
- Rotation speed: 600 rpm
- Power supply: 4 x 7.4-V-Li-Ion
- Operating time (max.): 25 h
- Tripod thread: 1 x 5/8"
- Weight, approx.: 2,3 kg
- Length: 234 mm
- Width: 217 mm
- Height: 194 mm
- Colour of laser line: red
- Projection: 1 x 360° line
